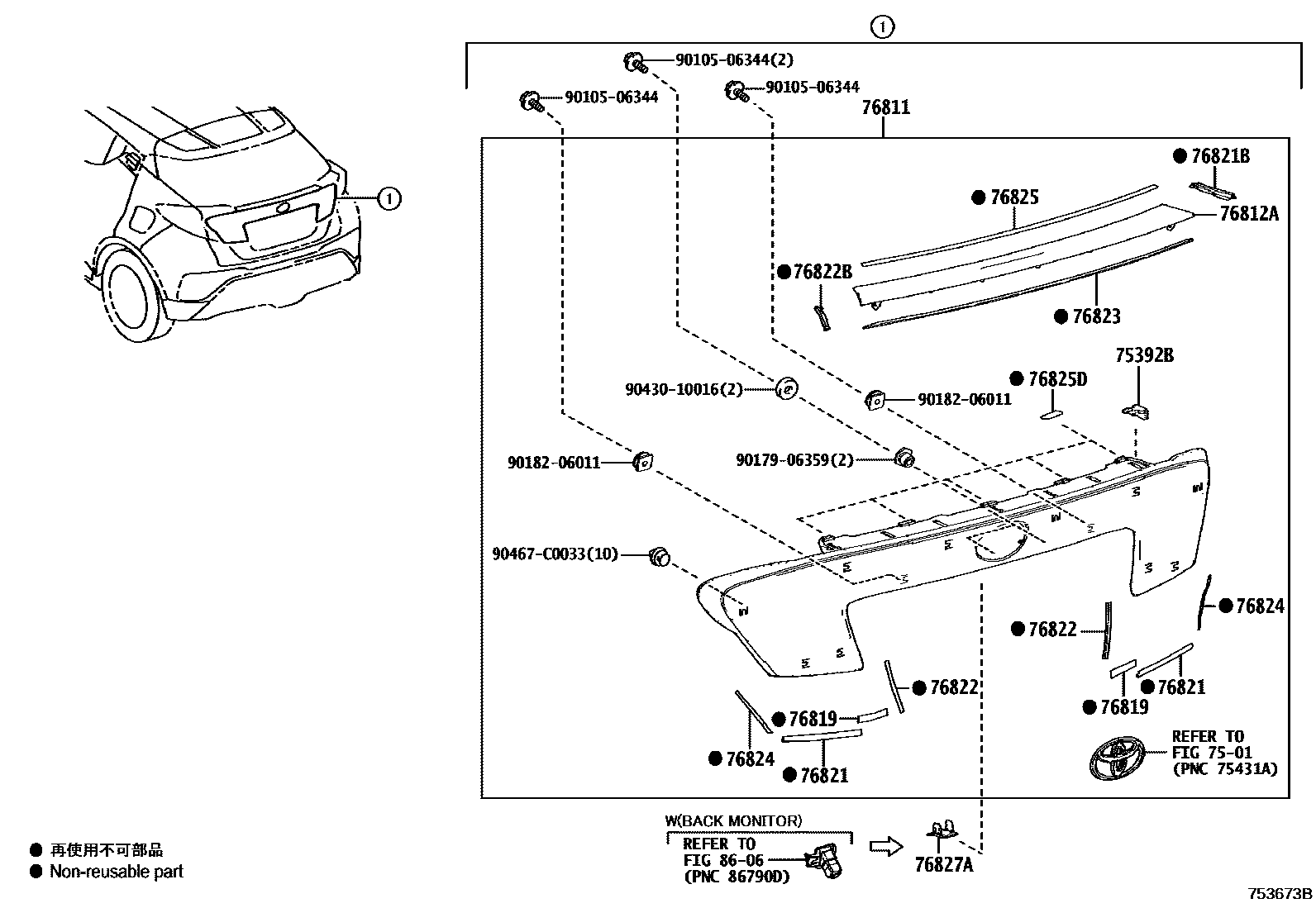

REAR MOULDING
7501EMBLEM & NAME PLATE (EXTERIOR & INTERIOR)
75392BRETEINER, OUTSIDE MOULDING, NO.1
76811GARNISH, BACK DOOR, OUTSIDE
WHITE PEARL CS.,070 ,2KR
METAL STREAM ME,1K0 ,2UY
BLACK MC.,209 ,2ND
RED MC.,2NE ,2PN ,3T3
DK. BROWN M.M.,4U3
BLUE ME.,2QG
PLATINUM WHITE PEARL MC.,089 ,2PU
METAL STREAM ME,1K0 ,2UY
BLACK MC.,209 ,2TA
RED MC.,2PN ,3T3
OXIDE BRONZE ME.,2RF ,2TD ,6X1
NEBULA BLUE ME.,2PP ,8X2
PLATINUM WHITE PEARL MC.,089 ,2PU
METAL STREAM ME,1K0 ,2UY
BLACK MC.,209 ,2TA
RED MC.,2PN ,3T3
OXIDE BRONZE ME.,2RF ,2TD ,6X1
NEBULA BLUE ME.,2PP ,8X2
76812AGARNISH, BACK DOOR, OUTSIDE NO.2
WHITE PEARL CS.,070 ,2KR
METAL STREAM ME,1K0 ,2UY
BLACK MC.,209 ,2ND
RED MC.,2NE ,2PN ,3T3
DK. BROWN M.M.,4U3
BLUE ME.,2QG
76819SEAL, BACK DOOR OUTSIDE GARNISH
76821PROTECTOR, BACK DOOR GARNISH MOULDING, UPPER
76821BPROTECTOR, BACK DOOR GARNISH SIDE, RH
76822PROTECTOR, BACK DOOR GARNISH MOULDING, LOWER
76822BPROTECTOR, BACK DOOR GARNISH SIDE, LH
76823PROTECTOR, BACK DOOR GARNISH MOULDING, RH
76824PROTECTOR, BACK DOOR GARNISH MOULDING, LH
76825PROTECTOR, BACK DOOR OUTSIDE GARNISH
76825DPROTECTOR, BACK DOOR OUTSIDE GARNISH, NO.1
76827ARETAINER, BACK DOOR GARNISH, NO.2
8606CAMERA & REAR MONITOR DISPLAY
9010506344
main90105-06344
9017906359
main90179-06359
9018206011
main90182-06011
9043010016
main90430-10016
90467C0033
main90467-C0033
20 parts on this diagram · 3 diagrams in section
