SIDE MOULDING
60117COVER SUB-ASSY, FRONT PILLAR, UPR RH
60118COVER SUB-ASSY, FRONT PILLAR, UPR LH
61991BPROTECTOR, FRONT PILLAR COVER, RH
61992PROTECTOR, FRONT PILLAR COVER, LH
62505ECOVER SUB-ASSY, QUARTER PILLAR, RH
62506CCOVER SUB-ASSY, QUARTER PILLAR, LH
6701FRONT DOOR PANEL & GLASS
6705REAR DOOR PANEL & GLASS
75553FMOULDING, QUARTER GARNISH, RH
75554EMOULDING, QUARTER GARNISH, LH
75555DMOULDING, ROOF DRIP SIDE FINISH, CENTER RH
BODY COLOR-TWO-TONES,WHITE,2ND ,2NE ,2QG
BODY COLOR-TWO-TONES,METAL STREAM ME,2TA ,2TD
BODY COLOR-TWO-TONES,BLACK MC.,2PN ,2PP ,2PU ,2RF ,2UY
75556CMOULDING, ROOF DRIP SIDE FINISH, CENTER LH
BODY COLOR-TWO-TONES,WHITE,2ND ,2NE ,2QG
BODY COLOR-TWO-TONES,METAL STREAM ME,2TA ,2TD
BODY COLOR-TWO-TONES,BLACK MC.,2KR ,2PN ,2UY
75561CLIP, ROOF DRIP SIDE FINISH MOULDING, NO.1
(L)
(J)
75585BPROTECTOR, REAR PILLAR GARNISH, NO.1
75586BPROTECTOR, REAR PILLAR GARNISH, NO.2
75711BMOULDING, FRONT DOOR BELT, RH
75712BMOULDING, FRONT DOOR BELT, LH
75721AMOULDING, REAR DOOR BELT, RH
75722AMOULDING, REAR DOOR BELT, LH
75751AMOULDING, FRONT DOOR WINDOW FRAME, RH(FRONT PILLAR SIDE)
75752AMOULDING, FRONT DOOR WINDOW FRAME, LH(FRONT PILLAR SIDE)
75753MOULDING, FRONT DOOR WINDOW FRAME, UPPER RH
75754AMOULDING, FRONT DOOR WINDOW FRAME, UPPER LH
75755AMOULDING, FRONT DOOR WINDOW FRAME, RH(CENTER PILLAR SIDE)
75756DMOULDING, FRONT DOOR WINDOW FRAME, LH(CENTER PILLAR SIDE)
75761BMOULDING, REAR DOOR WINDOW FRAME, RH(CENTER PILLAR SIDE)
75762BMOULDING, REAR DOOR WINDOW FRAME, LH(CENTER PILLAR SIDE)
75763AMOULDING, REAR DOOR WINDOW FRAME, UPPER RH
75764AMOULDING, REAR DOOR WINDOW FRAME, UPPER LH
75765BMOULDING, REAR DOOR WINDOW FRAME, RH(REAR PILLAR SIDE)
75766BMOULDING, REAR DOOR WINDOW FRAME, LH(REAR PILLAR SIDE)
6777295J03WEATHERSTRIP, BACK DOOR TRIM, LH
main67772-95J03
9026904051
main90269-04051
90269C0001
main90269-C0001
9043009003
main90430-09003
9046708225
main90467-08225
90467C0044
main90467-C0044

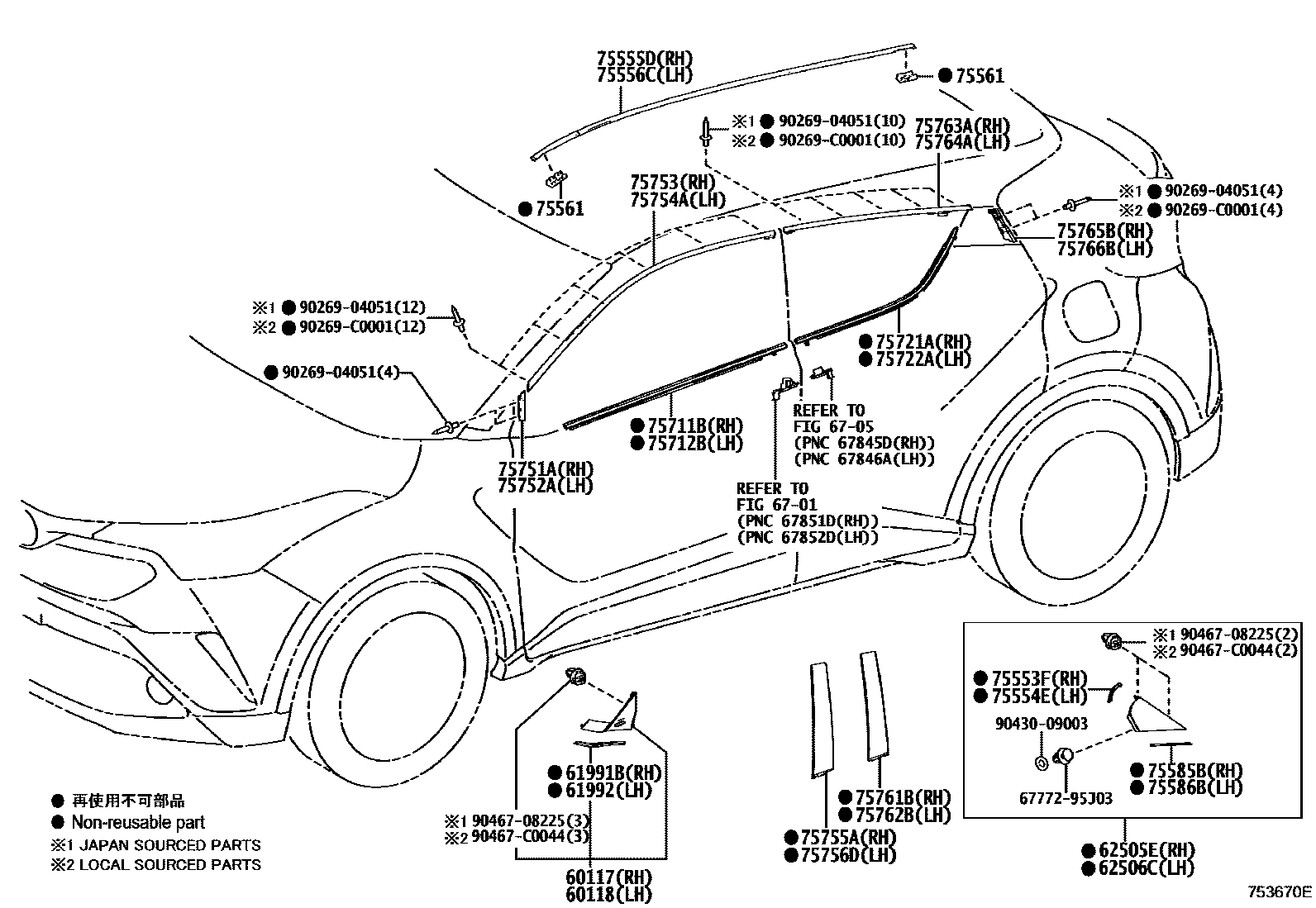

37 parts on this diagram · 2 diagrams in section
