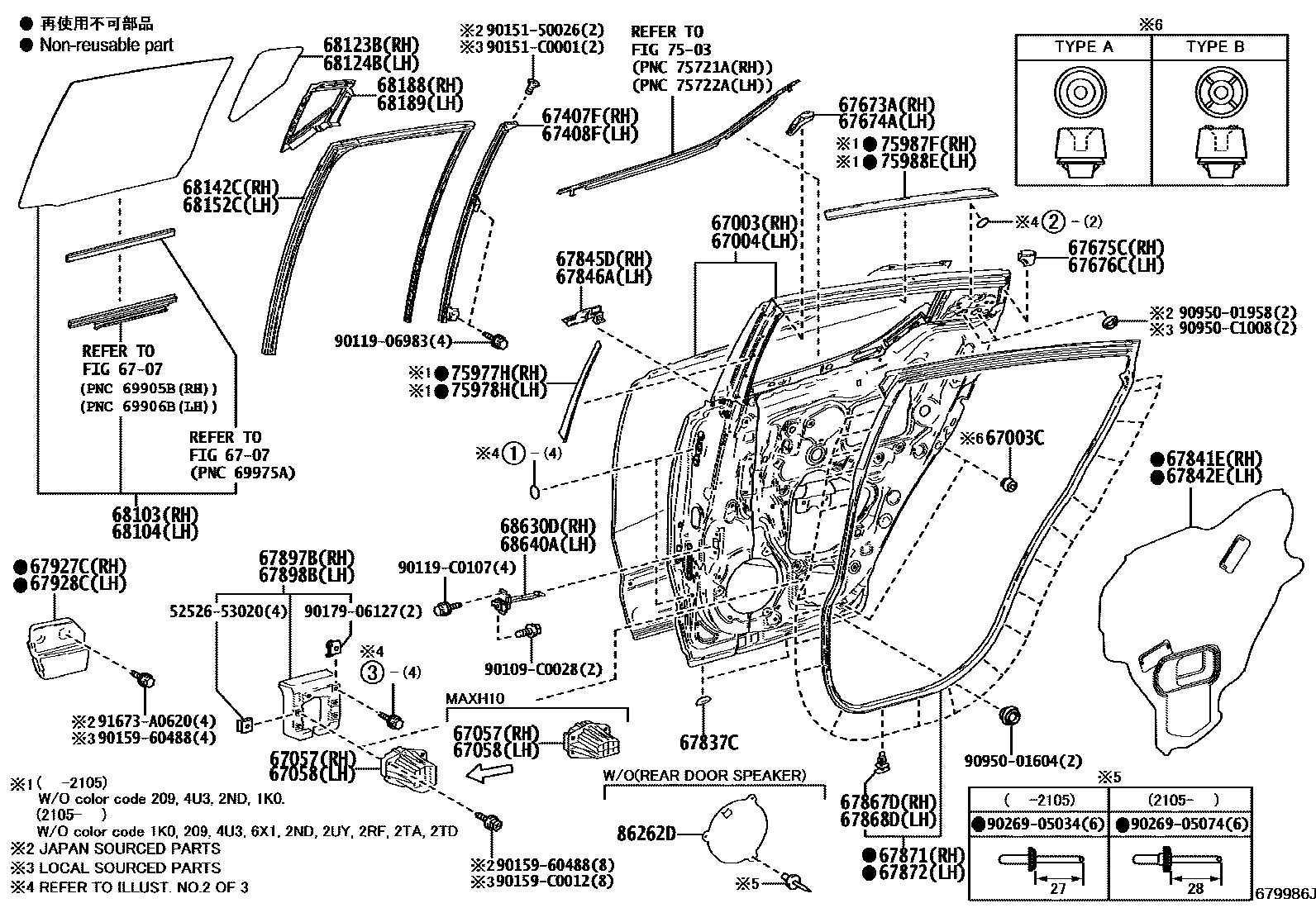

REAR DOOR PANEL & GLASS
67003PANEL SUB-ASSY, REAR DOOR, RH
DIGITAL KEY-WITH
67003CCUSHION, REAR DOOR PANEL
(J),TYPE A:REF ILL.
TYPE B:REFER ILLUST.
(L),TYPE A:REF ILL.
67004PANEL SUB-ASSY, REAR DOOR, LH
DIGITAL KEY-WITH
67057REINFORCE SUB-ASSY, REAR DOOR INSIDE PANEL, RH
67058REINFORCE SUB-ASSY, REAR DOOR INSIDE PANEL, LH
6707REAR DOOR WINDOW REGULATOR & HINGE
67407FFRAME SUB-ASSY, REAR DOOR WINDOW, REAR LOWER RH
67408FFRAME SUB-ASSY, REAR DOOR WINDOW, REAR LOWER LH
67673AGARNISH, REAR DOOR FRAME, RH
67674AGARNISH, REAR DOOR FRAME, LH
67675CGARNISH, REAR DOOR FRAME, NO.2 RH
67676CGARNISH, REAR DOOR FRAME, NO.2 LH
67837CSEAL, REAR DOOR DUST PROOF
67841ECOVER, REAR DOOR SERVICE HOLE, RH
67842ECOVER, REAR DOOR SERVICE HOLE, LH
67845DSEAL, REAR DOOR FRONT OUTSIDE, RH
67846ASEAL, REAR DOOR FRONT OUTSIDE, LH
67867DRETAINER, REAR DOOR WEATHERSTRIP, RH
67868DRETAINER, REAR DOOR WEATHERSTRIP, LH
67871WEATHERSTRIP, REAR DOOR, RH
67872WEATHERSTRIP, REAR DOOR, LH
67897BCUSHION, REAR DOOR, RH
67898BCUSHION, REAR DOOR, LH
67927CCUSHION, SEPARATOR DOOR STIFFENER, NO.1
67928CCUSHION, SEPARATOR DOOR STIFFENER, NO.2
68103GLASS SUB-ASSY, REAR DOOR, RH
68104GLASS SUB-ASSY, REAR DOOR, LH
68123BGLASS, REAR DOOR QUARTER WINDOW, RH
68124BGLASS, REAR DOOR QUARTER WINDOW, LH
68142CRUN, REAR DOOR GLASS, RH
68152CRUN, REAR DOOR GLASS, LH
68188WEATHERSTRIP, REAR DOOR QUARTER WINDOW, RH
68189WEATHERSTRIP, REAR DOOR QUARTER WINDOW, LH
68630DCHECK ASSY, REAR DOOR, RH
68640ACHECK ASSY, REAR DOOR, LH
7503SIDE MOULDING
75977HSTRIPE, REAR DOOR OUTSIDE, LOWER RH
0 OR 1PIECE,REF.ILL.
75978HSTRIPE, REAR DOOR OUTSIDE, LOWER LH
0 OR 1PIECE,REF.ILL.
75987FSTRIPE, REAR DOOR, OUTSIDE, RH
0 OR 1PIECE,REF.ILL.
75988ESTRIPE, REAR DOOR, OUTSIDE LH
0 OR 1PIECE,REF.ILL.
86262DCOVER, REAR DOOR SPEAKER
5252653020RETAINER, FRONT BUMPER, LOWER SIDE
main52526-53020
90109C0028
main90109-C0028
9011906983
main90119-06983
90119C0107
main90119-C0107
9015150026
main90151-50026
90151C0001
main90151-C0001
9015960488
main90159-60488
90159C0012
main90159-C0012
9017906127
main90179-06127
9026905034
main90269-05034
9026905074
main90269-05074
9095001604
main90950-01604
9095001958
main90950-01958
90950C1008
main90950-C1008
91673A0620
main91673-A0620
56 parts on this diagram · 3 diagrams in section
