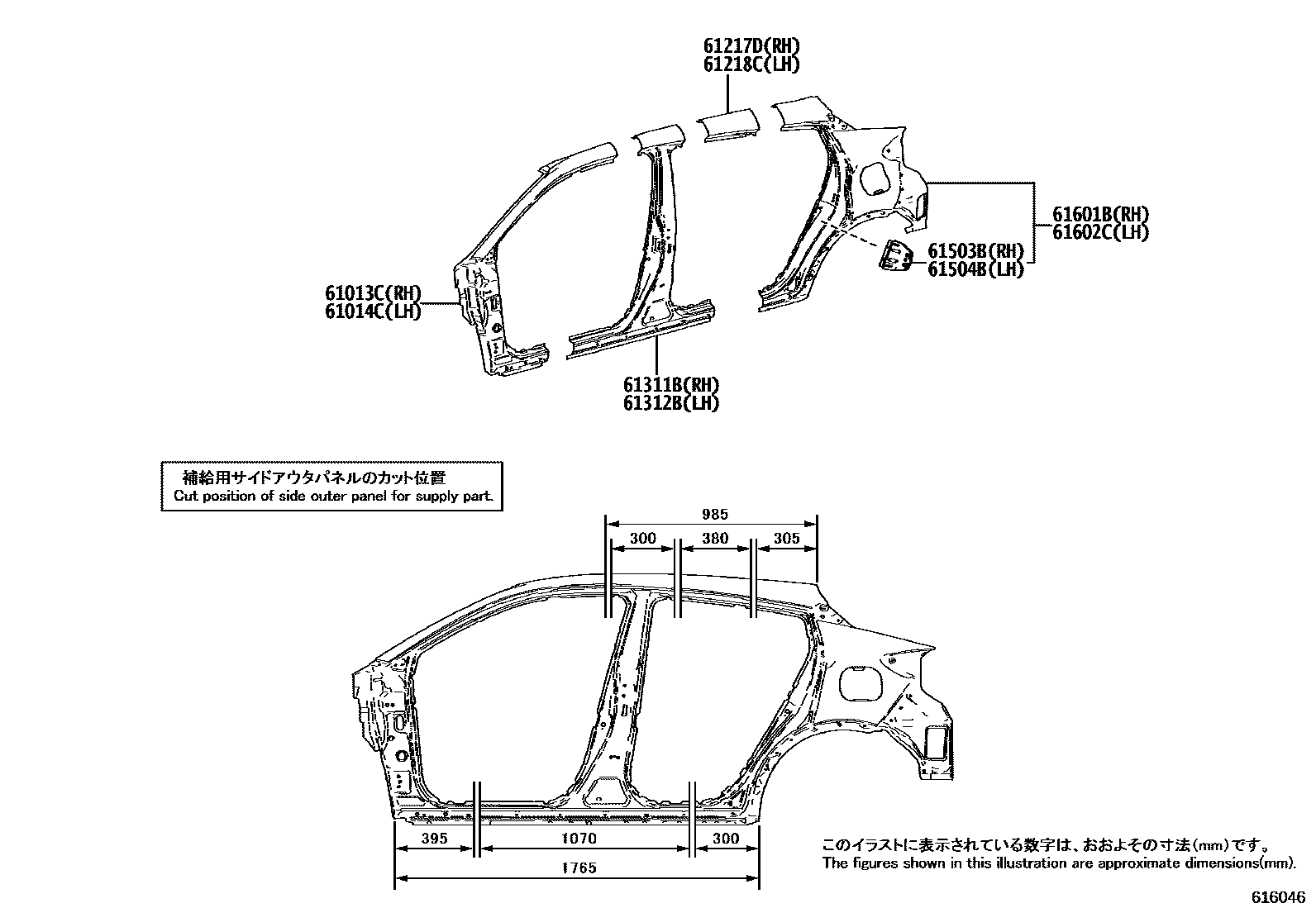

SIDE MEMBER

0001 1OUTER PANEL 0002 1INNER PANEL,RH 0003 1INNER PANEL,LH

61013CPANEL SUB-ASSY, SIDE, INNER RH

main61131-F4050iMAXA10201807-202105

61014CPANEL SUB-ASSY, SIDE, INNER LH

main61132-F4050iMAXA10201807-202105

61217DRAIL, ROOF SIDE, OUTER NO.4 RH

main61217-F4020iMAXA10201807-202105

61218CRAIL, ROOF SIDE, OUTER NO.4 LH

main61218-F4020iMAXA10201807-202105

61311BPILLAR, CENTER BODY, OUTER RH

main61311-F4040iMAXA10201807-202105

61312BPILLAR, CENTER BODY, OUTER LH

main61312-F4050iMAXA10201807-202105

61503BREINFORCEMENT SUB-ASSY, QUARTER LOCK PILLAR, RH

main61503-F4030iMAXA10,MAXH10202105

61504BREINFORCEMENT SUB-ASSY, QUARTER LOCK PILLAR, LH

main61504-F4030iMAXA10201807-202105

61601BPANEL SUB-ASSY, QUARTER, RH

main61601-F4050iMAXA10201807-202105

61602CPANEL SUB-ASSY, QUARTER, LH

main61602-F4040iMAXA10201807-202105

10 parts on this diagram · 3 diagrams in section
