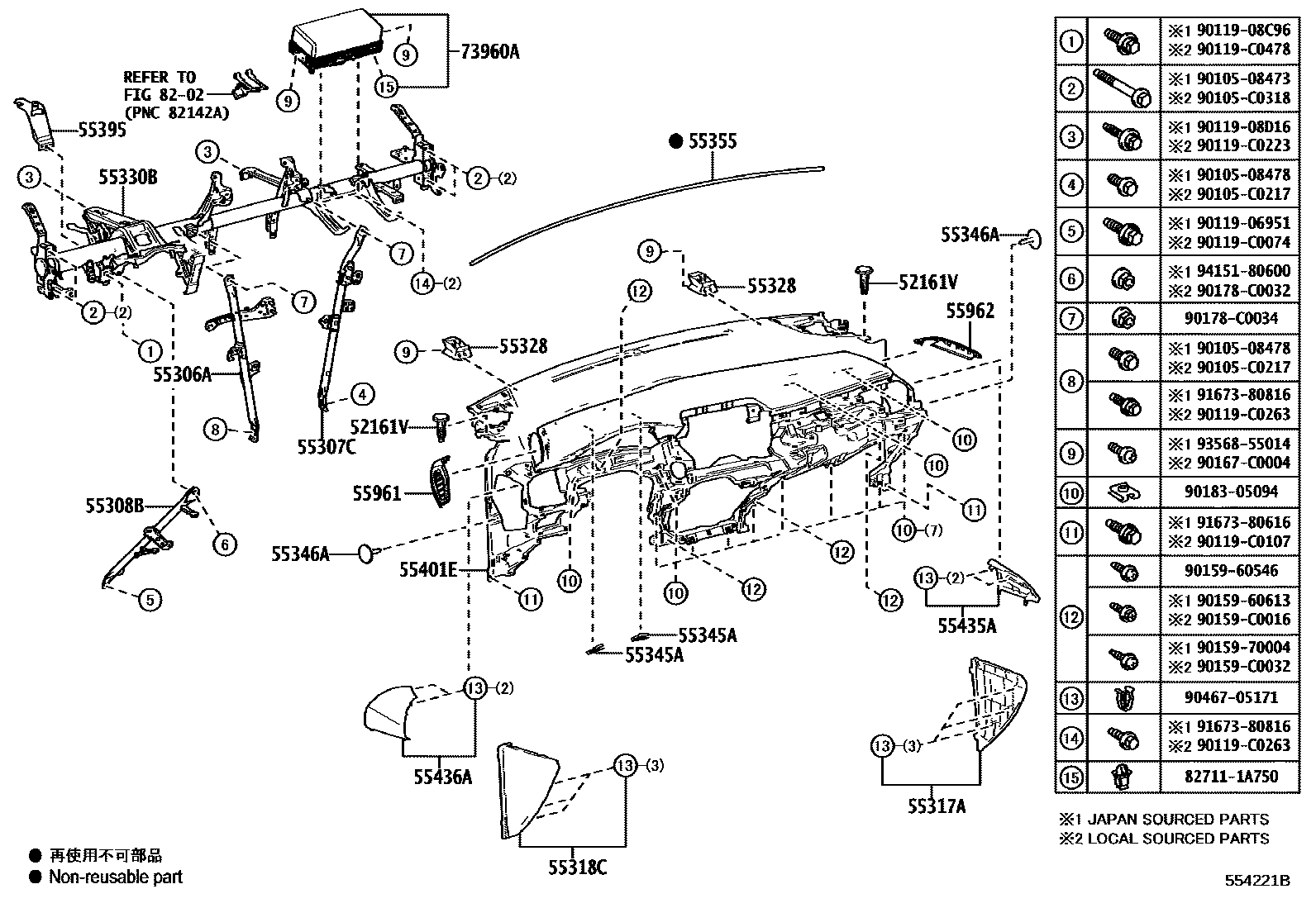

INSTRUMENT PANEL & GLOVE COMPARTMENT

0001 1 0002 1 0003 1DRIVER SIDE 0004 1DRIVER SIDE 0005 1CENTER 0006 1CENTER 0007 1PASSENGER SIDE 0008 1PASSENGER SIDE 0009 1 0010 1DRIVER SIDE 0011 1CENTER 0012 1PASSENGER SIDE

52161VPIECE, INSTRUMENT PANEL

main52161-02040×2iMAXA10202003-202105

(L)

main52161-16010×2iMAXA10,MAXH10202105

(J)

55306ABRACE SUB-ASSY, INSTRUMENT PANEL, NO.1

main55306-F4110iMAXA10201807-202105

55307CBRACE SUB-ASSY, INSTRUMENT PANEL, NO.2

main55307-F4050iMAXA10201807-202105

55308BBRACE SUB-ASSY, INSTRUMENT PANEL TO COWL, NO.3

main55308-F4080iMAXA10201807-202105

55317APANEL, INSTRUMENT SIDE, RH

main55317-F4030-C0iMAXA10201807-202105

BLACK,TRIM2#

55318CPANEL, INSTRUMENT SIDE, LH

main55318-F4030-C0iMAXA10201807-202105

BLACK,TRIM2#

55328PIN, INSTRUMENT PANEL, NO.1

main55328-F4080×2iMAXA10201807-202105

55330BREINFORCEMENT ASSY, INSTRUMENT PANEL

main55330-F4070iMAXA10201807-202105

55345ACLIP, INSTRUMENT PANEL, NO.1

main55345-12060×2iMAXA10201807-202105

55346ACLIP, INSTRUMENT PANEL, NO.2

main90467-05161-C9×2iMAXA10201807-202105

BLACK

main90467-C0096-C0×2iMAXA10,MAXH10202307

BLACK

55355CUSHION, INSTRUMENT PANEL, NO.1

main55355-F4020iMAXA10201807-202105

55395BRACKET, INSTRUMENT PANEL TO PEDAL

main55395-F4050iMAXA10201807-202105

55401EPAD SUB-ASSY, INSTRUMENT PANEL SAFETY

main55401-F4060-C0iMAXA10..N201807-202105

BLACK,TRIM20

main55401-F4060-C1iMAXA10..E201807-202105

BLACK,TRIM2#

main55401-F4060-C2iMAXA10..D; MAXA10..N201807-202105

BLACK,TRIM2#; BLACK,TRIM20,TRIM = EBXX,ECXX

main55401-F4120-C2iMAXH10202105

BLACK,TRIM2#

55435APANEL, INSTRUMENT PANEL FINISH, END RH

main55435-F4020-C0iMAXA10,MAXH10202105

BLACK,TRIM2#

55436APANEL, INSTRUMENT PANEL FINISH, END LH

main55436-F4020-C0iMAXA10201807-202105

BLACK,TRIM2#

55961NOZZLE, SIDE DEFROSTER, NO.1

main55961-F4030-C0iMAXA10201807-202105

BLACK,TRIM2#

55962NOZZLE, SIDE DEFROSTER, NO.2

main55962-F4030-C0iMAXA10201807-202105

BLACK,TRIM2#

73960AAIRBAG ASSY, INSTRUMENT PANEL PASSENGER W/O DOOR

main73960-F4050iMAXA10201807-202105

8202WIRING & CLAMP

→ Go to FIG 82-02

827111A750WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-1A750

9010508473

main90105-08473

9010508478

main90105-08478

90105C0217

main90105-C0217

90105C0318

main90105-C0318

9011906951

main90119-06951

9011908C96

main90119-08C96

9011908D16

main90119-08D16

90119C0074

main90119-C0074

90119C0107

main90119-C0107

90119C0223

main90119-C0223

90119C0263

main90119-C0263

90119C0478

main90119-C0478

9015960546

main90159-60546

9015960613

main90159-60613

9015970004

main90159-70004

90159C0016

main90159-C0016

90159C0032

main90159-C0032

90167C0004

main90167-C0004

90178C0032

main90178-C0032

90178C0034

main90178-C0034

9018305094

main90183-05094

9046705171

main90467-05171

9167380616

main91673-80616

9167380816

main91673-80816

9356855014

main93568-55014

9415180600

main94151-80600

46 parts on this diagram · 12 diagrams in section
