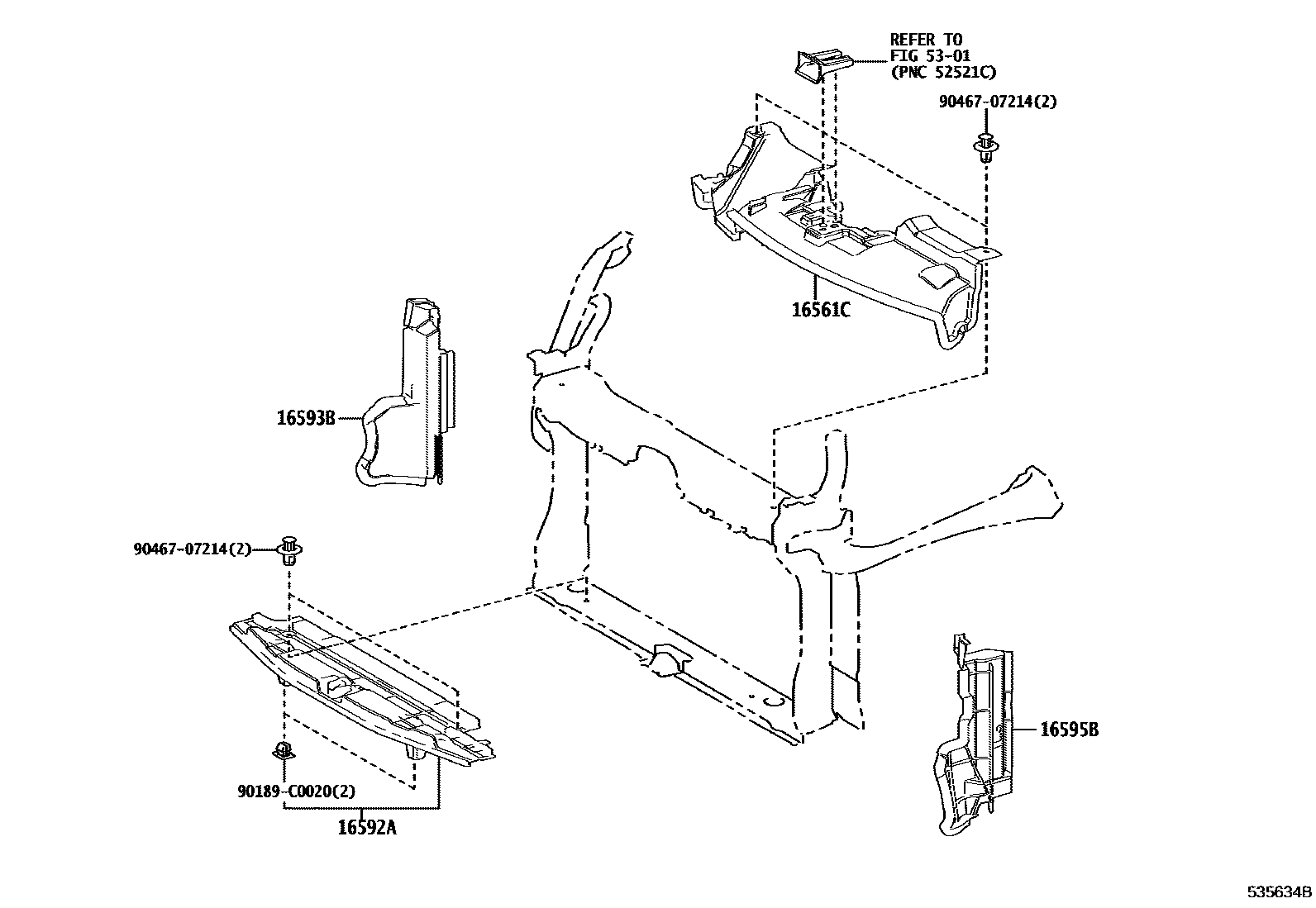

FRONT FENDER APRON & DASH PANEL

0001 1AIR GUIDE 0002 1AIR GUIDE 0004 1AIR GUIDE 0005 1RADIATOR SUPPORT & FENDER APL0006 1DASH PANEL

16561CSEAL, RADIATOR TO SUPPORT, NO.1

main16561-F2010iM20AFKS..MAXA10201807-202105

main16561-F2070iM20AFKS..MAXA10202105-202304

main16561-F2100iM20AFKS..MAXA10202304

16592AGUIDE, RADIATOR AIR, NO.3

main16592-F2020iM20AFKS..MAXA10201807-202105

16593BGUIDE, RADIATOR AIR, NO.1 RH

main16593-F2060iM20AFKS..MAXA10201807-202105

main16593-F2200iM20#..MAXA10,MAXH10202105

16595BGUIDE, RADIATOR AIR, NO.1 LH

main16595-F2080iM20AFKS..MAXA10201807-202105

main16595-F2220iM20#..MAXA10,MAXH10202105

5301RADIATOR GRILLE

→ Go to FIG 53-01

90189C0020

main90189-C0020

9046707214

main90467-07214

7 parts on this diagram · 5 diagrams in section
