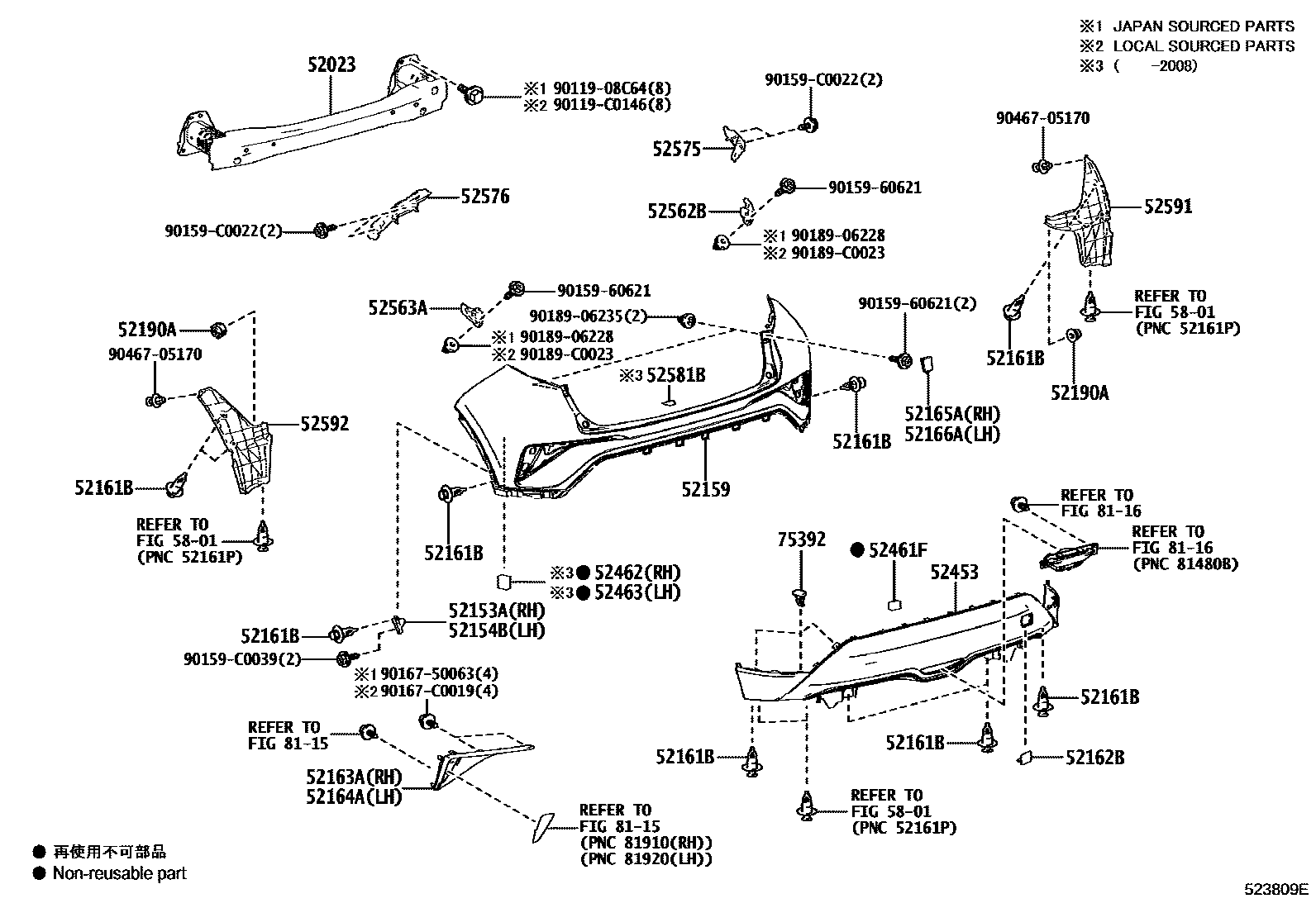

REAR BUMPER & BUMPER STAY
52023REINFORCEMENT SUB-ASSY, REAR BUMPER
52153ASTAY, REAR BUMPER SIDE, RH
52154BSTAY, REAR BUMPER SIDE, LH
52159COVER, REAR BUMPER
PAINT REQ.
52161BPIECE, REAR BUMPER
(L)
52162BPLATE, REAR BUMPER, NO.1
52165ACOVER, REAR BUMPER, UPR RH
NO PAINT REQ.
52166ACOVER, REAR BUMPER, UPR LH
NO PAINT REQ.
52190ACLIP
BLACK
BLACK
52453GUARD, REAR BUMPER, CENTER
LADY PACKAGE
SPORT PACKAGE
52461FPAD, REAR BUMPER
52462PAD, REAR BUMPER, RH
52463PAD, REAR BUMPER, LH
52562BRETAINER, REAR BUMPER, UPPER RH
52563ARETAINER, REAR BUMPER, UPPER LH
52575RETAINER, REAR BUMPER SIDE, RH
52576RETAINER, REAR BUMPER SIDE, LH
52581BPROTECTOR, REAR BUMPER
52591SEAL, REAR BUMPER SIDE, RH
52592SEAL, REAR BUMPER SIDE, LH
5801FLOOR PAN & LOWER BACK PANEL
75392RETAINER, OUTSIDE MOULDING
8115REFLEX REFLECTOR
8116REAR FOG LAMP
9011908C64
main90119-08C64
90119C0146
main90119-C0146
9015960621
main90159-60621
90159C0022
main90159-C0022
90159C0039
main90159-C0039
9016750063
main90167-50063
90167C0019
main90167-C0019
9018906228
main90189-06228
9018906235
main90189-06235
90189C0023
main90189-C0023
9046705170
main90467-05170
37 parts on this diagram · 2 diagrams in section
