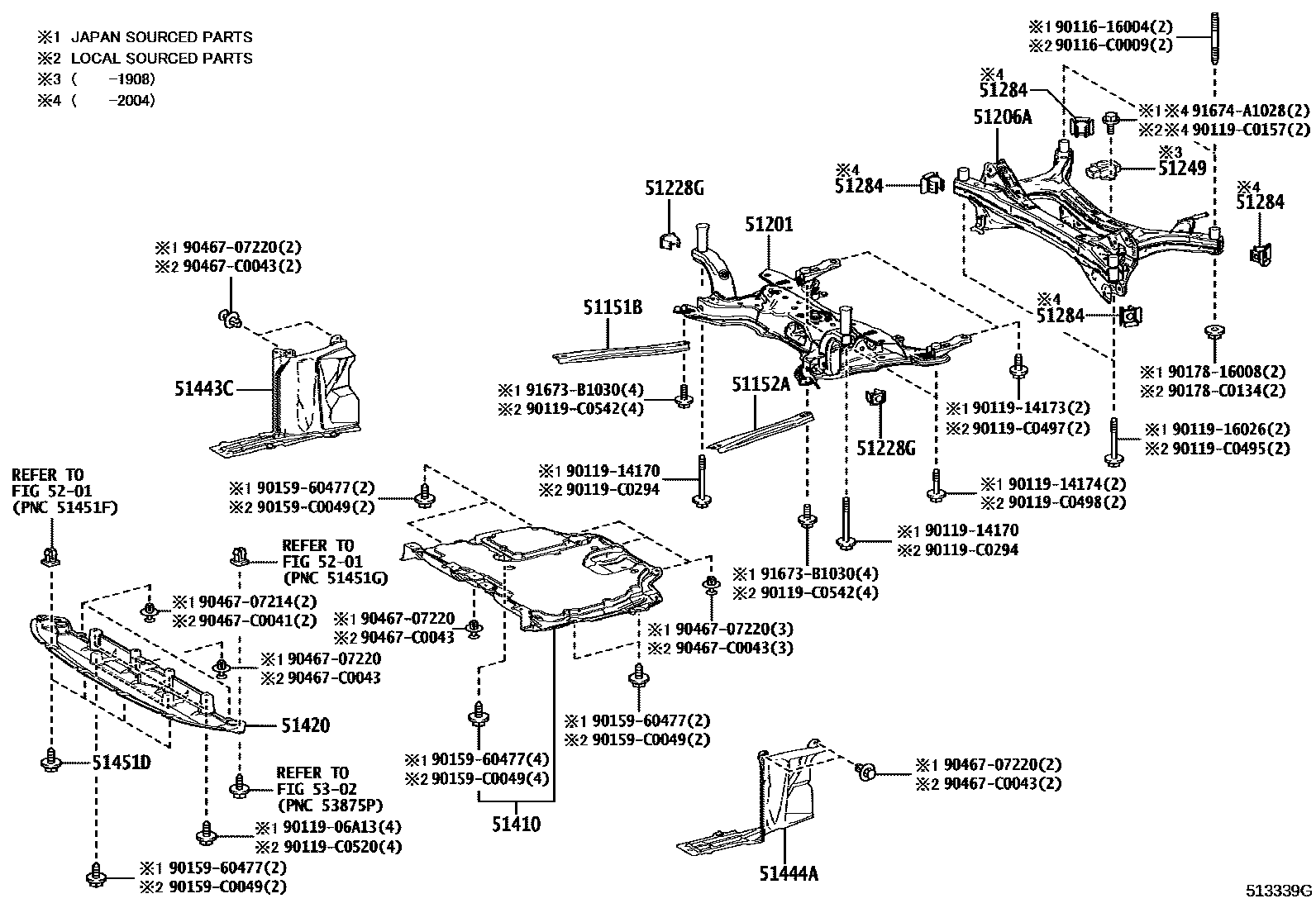

SUSPENSION CROSSMEMBER & UNDER COVER

51151BREINFORCEMENT, SIDE RAIL, NO.1 RH

main51151-F4020iMAXA10201807-202105

51152AREINFORCEMENT, SIDE RAIL, NO.1 LH

main51151-F4020iMAXA10201807-202105

51201CROSSMEMBER SUB-ASSY, FRONT SUSPENSION

main51201-F4030iMAXA10201807-201812

main51201-F4031iMAXA10201901-202105

main51201-F4032iMAXA10,MAXH10202107

51206AMEMBER SUB-ASSY, REAR SUSPENSION

main51206-F4040iMAXA10201807-202105

51228GPLATE, FRONT SUSPENSION MEMBER

main51228-F4030×2iMAXA10201807-202105

51249DAMPER, REAR SUSPENSION MEMBER

main51249-F4020iMAXA10201807-201908

51284COVER, REAR SUSPENSION MEMBER HOLE

main51284-F4030×4iMAXA10201807-202004

51410COVER ASSY, ENGINE UNDER, NO.1

main51410-F4060iMAXA10201807-202105

51420COVER ASSY, ENGINE UNDER, NO.2

main51420-F4040iMAXA10201807-202105

main51420-F4060iMAXA10,MAXH10202105

51443CCOVER, ENGINE UNDER, REAR RH

main51443-F4030iMAXA10201807-202105

51444ACOVER, ENGINE UNDER, REAR LH

main51444-F4030iMAXA10201807-202105

51451DSCREW, NO.1

main90159-60477×4iMAXA10201807-202105

(J)

main90159-C0049×4iMAXA10201807-202105

(L)

5201FRONT BUMPER & BUMPER STAY

→ Go to FIG 52-01

5302HOOD & FRONT FENDER

→ Go to FIG 53-02

9011616004

main90116-16004

90116C0009

main90116-C0009

9011906A13

main90119-06A13

9011914170

main90119-14170

9011914173

main90119-14173

9011914174

main90119-14174

9011916026

main90119-16026

90119C0157

main90119-C0157

90119C0294

main90119-C0294

90119C0495

main90119-C0495

90119C0497

main90119-C0497

90119C0498

main90119-C0498

90119C0520

main90119-C0520

90119C0542

main90119-C0542

9015960477

main90159-60477

90159C0049

main90159-C0049

9017816008

main90178-16008

90178C0134

main90178-C0134

9046707214

main90467-07214

9046707220

main90467-07220

90467C0041

main90467-C0041

90467C0043

main90467-C0043

91673B1030

main91673-B1030

91674A1028

main91674-A1028

38 parts on this diagram · 1 diagram in section
