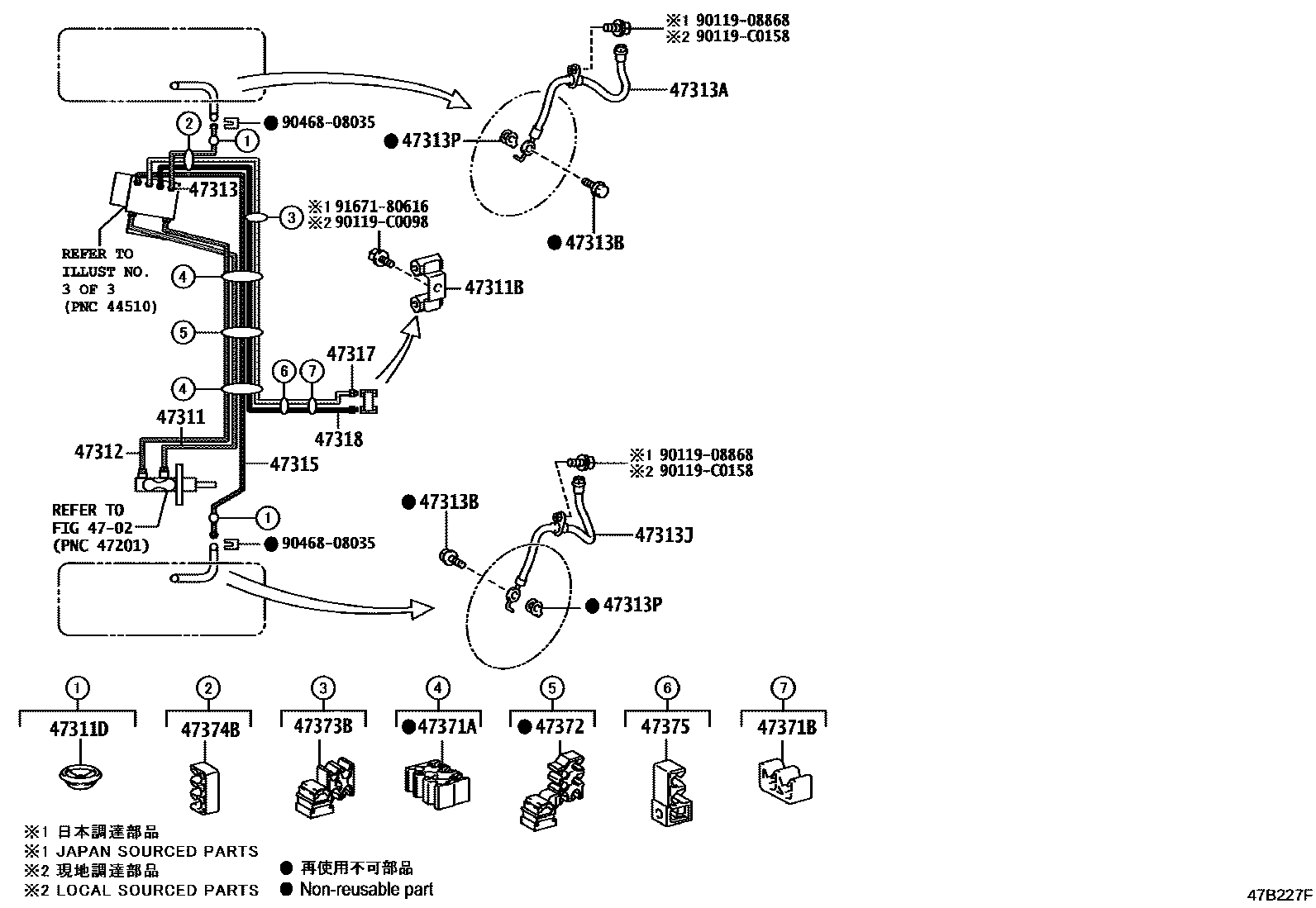

BRAKE TUBE & CLAMP

0001 1FRONT BRAKE TUBE 0002 1FRONT BRAKE TUBE 0003 1FRONT BRAKE TUBE 0004 1REAR BRAKE TUBE 0005 1REAR BRAKE TUBE 0006 1BRAKE ACTUATOR 0007 1BRAKE ACTUATOR

4702BRAKE MASTER CYLINDER

→ Go to FIG 47-02

47311TUBE, FRONT BRAKE, NO.1

main47311-02C30iMAXH10202105

main47311-02J40iMAXA10202304

main47311-F4070iMAXA10201807-202105

47311BWAY, NO.1(FOR FRONT BRAKE TUBE)

main90412-10285iMAXA10201901-202105

(J)

main90412-C0004iMAXA10,MAXH10202105

(L)

47311DGROMMET(FOR FRONT BRAKE TUBE)

main90480-25037×2iMAXA10201807-202105

47312TUBE, FRONT BRAKE, NO.2

main47312-02E40iMAXH10202105

main47312-F4070iMAXA10201807-202105

47313TUBE, FRONT BRAKE, NO.3

main47313-02D10iMAXH10202105

main47313-F4070iMAXA10201807-202105

47313AHOSE, FLEXIBLE, NO.1(FOR FRONT)

main90947-C2082iMAXA10201807-202105

47313BBOLT, UNION(FOR FRONT FLEXIBLE HOSE)

main90401-10058×2iMAXA10201807-202105

(J)

main90401-C0001×2iMAXA10201807-202105

(L)

47313JHOSE, FLEXIBLE, NO.2(FOR FRONT)

main90947-C2083iMAXA10201807-202105

47313PGASKET(FOR FRONT FLEXIBLE HOSE)

main47389-50021×2iMAXA10,MAXH10202105

47315TUBE, FRONT BRAKE, NO.5

main47315-02600iMAXH10202105

main47315-02660iMAXA10202304

main47315-F4070iMAXA10202105-202303

47317TUBE, FRONT BRAKE, NO.7

main47317-02C00iMAXH10202105

main47317-F4070iMAXA10201807-202105

47318TUBE, FRONT BRAKE, NO.8

main47318-02C20iMAXH10202105

main47318-F4070iMAXA10202105

47371ACLAMP, BRAKE TUBE, NO.1

main90949-01D99×2iMAXH10202105

main90949-01E44×2iMAXA10201807-202105

47371BCLAMP, BRAKE TUBE, NO.6

main90949-01D91iMAXA10,MAXH10202105

47372CLAMP, BRAKE TUBE, NO.2

main90949-01E42iMAXA10201807-202105

main90949-01E50iMAXH10202105

47373BCLAMP, BRAKE TUBE, NO.3

main90949-01E51iMAXA10201807-202105

47374BCLAMP, BRAKE TUBE, NO.4

main90949-01D92iMAXA10201807-202105

main90949-01E10iMAXH10202105

47375CLAMP, BRAKE TUBE, NO.5

main90949-01E33iMAXA10201807-202105

9011908868

main90119-08868

90119C0098

main90119-C0098

90119C0158

main90119-C0158

9046808035

main90468-08035

9167180616

main91671-80616

24 parts on this diagram · 7 diagrams in section
