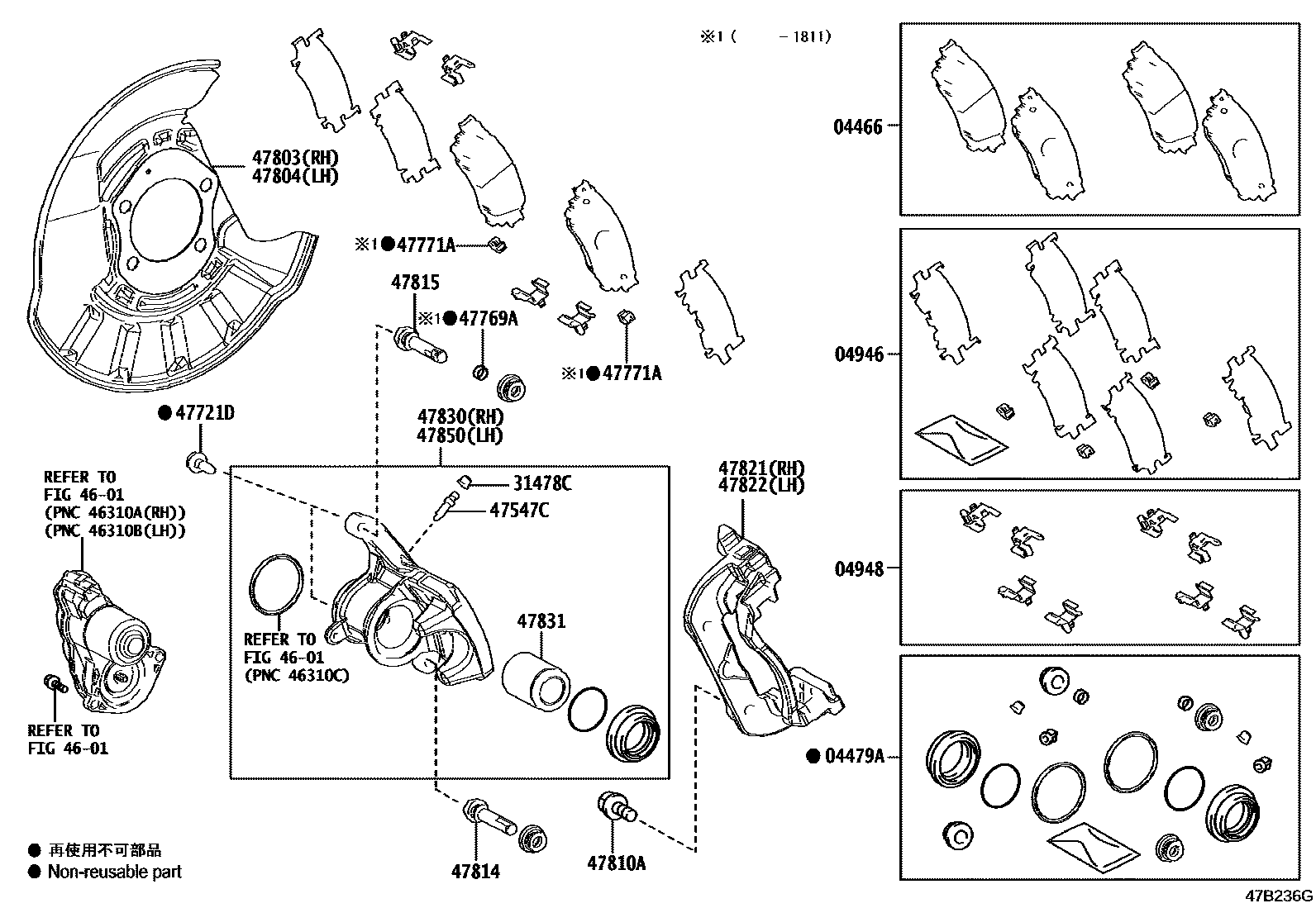

REAR DISC BRAKE CALIPER & DUST COVER

04466PAD KIT, DISC BRAKE, REAR

main04466-10020iMAXA10,MAXH10202105

MARK AK NS554

04479ACYLINDER KIT, DISC BRAKE, REAR

main04479-06370iMAXA10201807-202006

main04479-F4020iMAXA10202006-202105

04946SHIM KIT, ANTI SQUEAL(FOR REAR DISC BRAKE)

main04946-06150iMAXA10,MAXH10202105

04948FITTING KIT, DISC BRAKE, REAR

main04948-02170iMAXA10202102-202105

main04948-06070iMAXA10201807-202101

31478CCAP, BLEEDER PLUG(FOR REAR DISC BRAKE)

main31478-0N010×2iMAXA10201807-202105

4601PARKING BRAKE & CABLE

→ Go to FIG 46-01

47547CPLUG, BLEEDER(FOR REAR DISC BRAKE)

main47547-20010×2iMAXA10201807-202105

47721DBOLT(FOR REAR DISC BRAKE CYLINDER MOUTING)

main90016-AA612×4iMAXA10201807-202105

47769ABUSH, CYLINDER SLIDE, NO.1(FOR REAR DISC BRAKE)

main47769-0P010×2iMAXA10201807-201811

47771APLATE, PAD WEAR INDICATOR(FOR REAR DISC BRAKE)

main47871-78010×4iMAXA10201807-201811

47803COVER SUB-ASSY, DISC BRAKE DUST, REAR RH

main47803-F4010iMAXA10201807-202105

47804COVER SUB-ASSY, DISC BRAKE DUST, REAR LH

main47804-F4010iMAXA10201807-202105

47810ABOLT, HEXAGON(FOR REAR CALIPER)

main90105-12174×4iMAXA10201807-202105

(J)

main90105-C0255×4iMAXA10201807-202105

(L)

47814PIN, CYLINDER SLIDE, NO.1(FOR REAR DISC BRAKE)

main47814-06180×2iMAXA10201807-202105

47815PIN, REAR CYLINDER SLIDE, NO.2(FOR REAR DISC BRAKE)

main47815-06180×2iMAXA10201807-202105

47821MOUNTING, REAR DISC BRAKE CYLINDER, RH

main47821-F4010iMAXA10201807-202105

47822MOUNTING, REAR DISC BRAKE CYLINDER, LH

main47822-F4010iMAXA10201807-202105

47830CYLINDER ASSY, DISC BRAKE, REAR RH

main47830-07030iMAXA10,MAXH10202105

main47830-F4010iMAXA10201807-201811

47831PISTON, REAR DISC BRAKE

main47831-06180iMAXA10202003-202105

(L)

main47831-07030iMAXA10,MAXH10202302

(L)

main47831-78010iMAXA10,MAXH10202105

(J)

47850CYLINDER ASSY, DISC BRAKE, REAR LH

main47850-07030iMAXA10201811-202105

main47850-F4010iMAXA10201807-201811

20 parts on this diagram · 1 diagram in section
