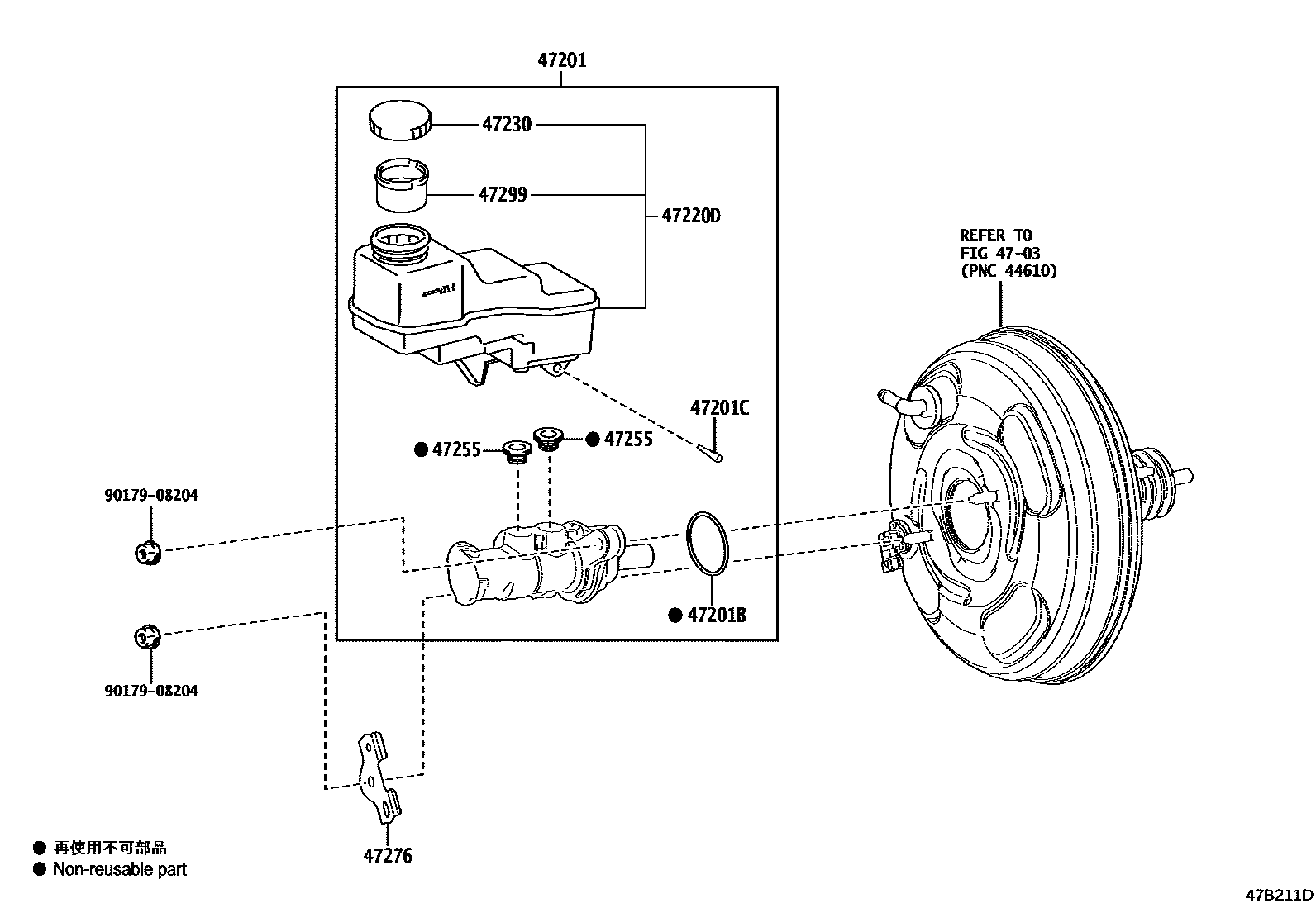

BRAKE MASTER CYLINDER

0001 1 0002 1

4703BRAKE BOOSTER & VACUUM TUBE

→ Go to FIG 47-03

47201CYLINDER SUB-ASSY, BRAKE MASTER

main47201-F4030iMAXA10201807-202105

47201BRING, O(FOR BRAKE MASTER CYLINDER)

main90016-AH902iMAXA10201807-202105

47201CRING PIN, BRAKE MASTER CYLINDER

main90029-15803iMAXA10202105

47220DRESERVOIR ASSY, BRAKE MASTER CYLINDER

main47220-F4030iMAXA10202105

47230CAP ASSY, BRAKE MASTER CYLINDER RESERVOIR FILLER

main47230-0R100iMAXA10202105

main47230-47090iMAXA10201807-202105

47255GROMMET, MASTER CYLINDER RESERVOIR

main90016-AT002×2iMAXA10201807-202105

47276BRACKET, BRAKE MASTER CYLINDER

main47276-F4010iMAXA10201807-202105

47299STRAINER, BRAKE MASTER CYLINDER RESERVOIR

main47299-20060iMAXA10201807-202105

9017908204

main90179-08204

10 parts on this diagram · 2 diagrams in section
