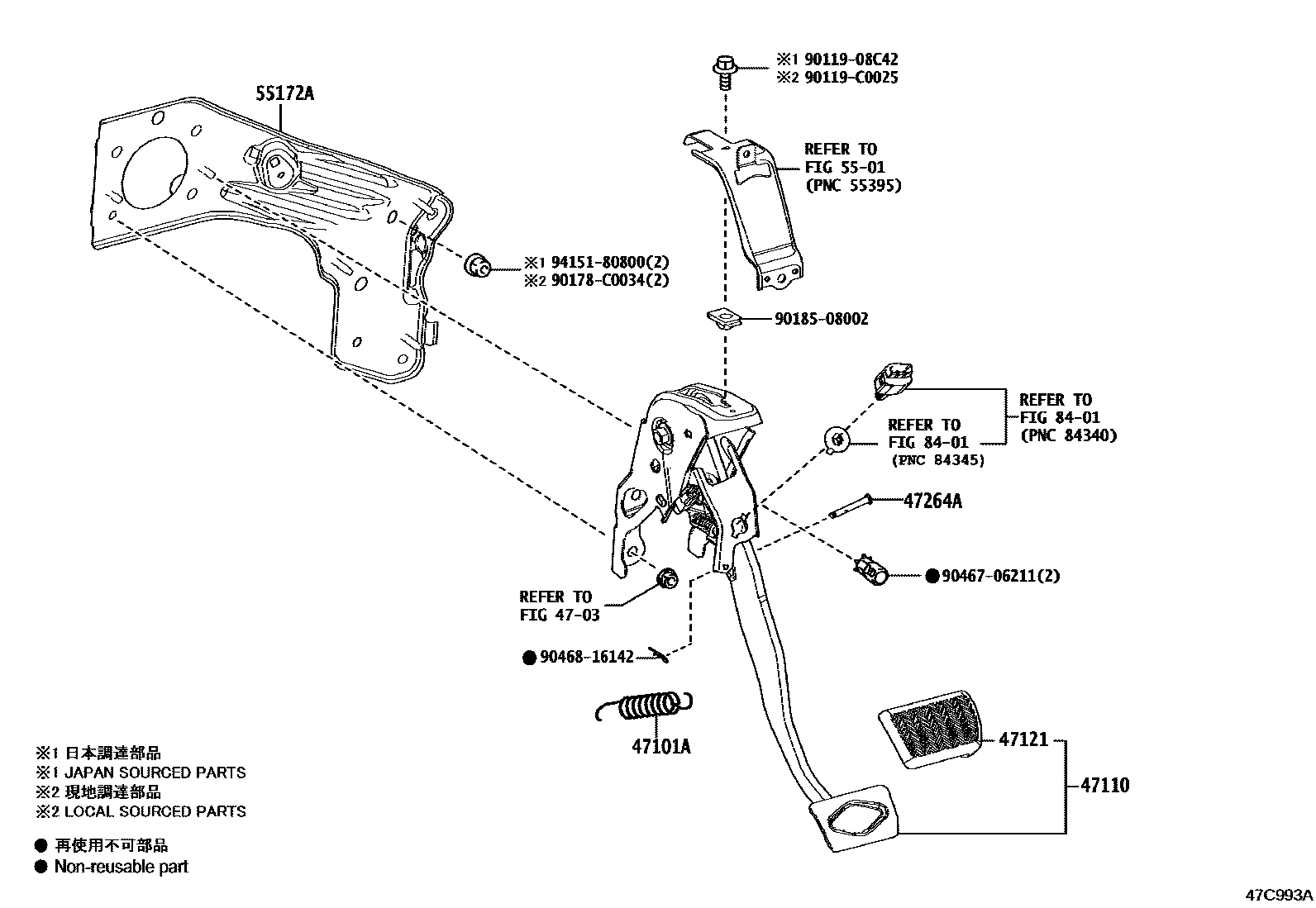

BRAKE PEDAL & BRACKET

0001 1 0002 1

4703BRAKE BOOSTER & VACUUM TUBE

→ Go to FIG 47-03

47101ASPRING(FOR BRAKE PEDAL RETURN)

main90507-15010iMAXA10201807-202105

main90507-16030iMAXH10202105

47110SUPPORT ASSY, BRAKE PEDAL

main47110-0A130iMAXA10202105

main47110-F4130iMAXA10201807-202105

main47110-F4170iMAXH10202105

47121PAD, BRAKE PEDAL

main47121-02180iMAXH10202105

main47121-F4050iMAXA10201807-202105

47264APIN(FOR PUSH ROD)

main90249-06187iMAXA10201807-202105

main90249-08221iMAXA10,MAXH10202105

5501INSTRUMENT PANEL & GLOVE COMPARTMENT

→ Go to FIG 55-01

55172ABASE, BRAKE PEDAL SUPPORT

main55172-F4030iMAXA10201807-202105

8401SWITCH & RELAY & COMPUTER

→ Go to FIG 84-01

9011908C42

main90119-08C42

90119C0025

main90119-C0025

90178C0034

main90178-C0034

9018508002

main90185-08002

9046706211

main90467-06211

9046816142

main90468-16142

9415180800

main94151-80800

15 parts on this diagram · 2 diagrams in section
