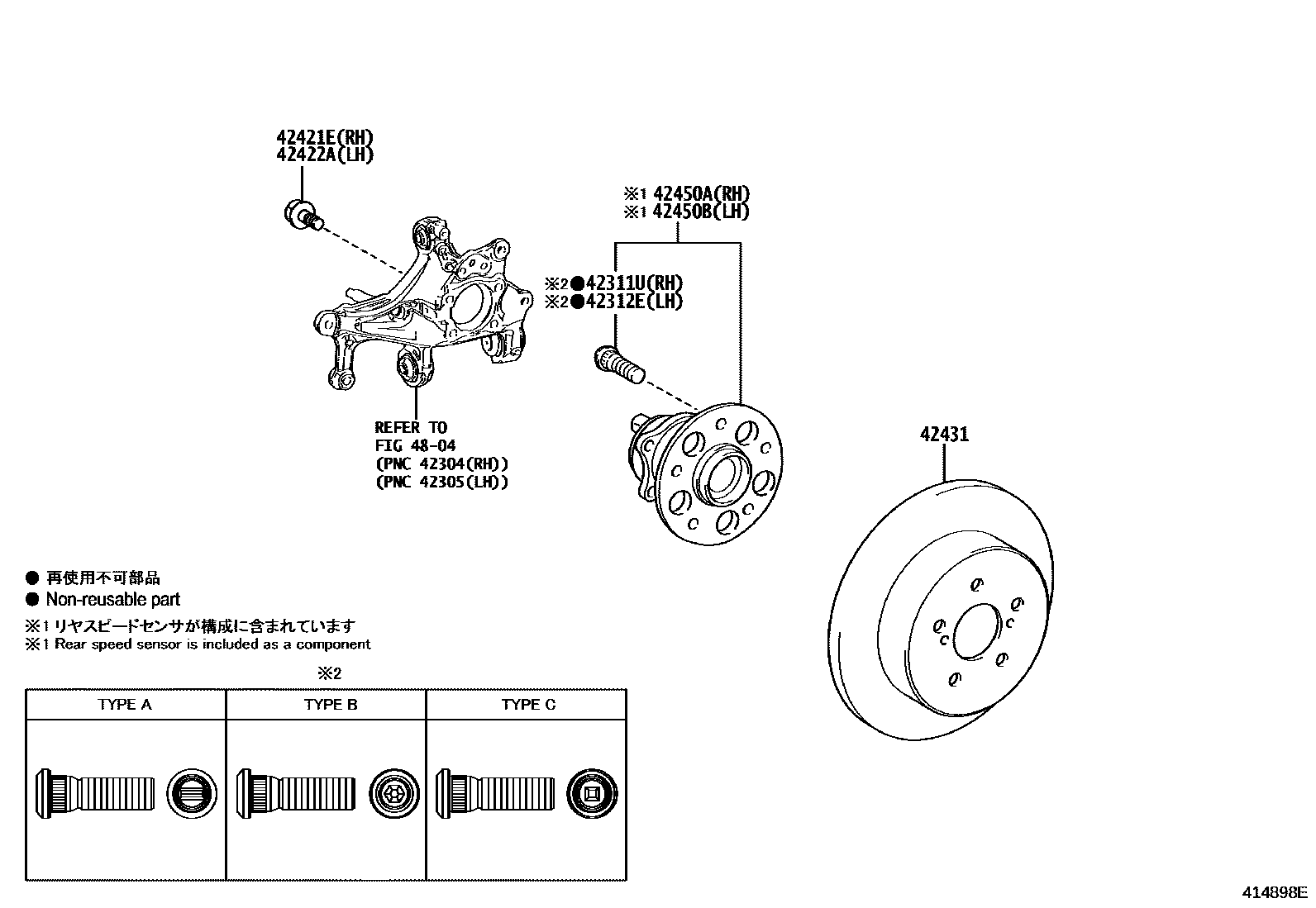

REAR AXLE SHAFT & HUB

42311UBOLT, HUB(FOR REAR AXLE RH)

main90942-02049×5iMAXA10201807-202105

TYPE A:REFER ILLUST.

main90942-02081×5iMAXA10,MAXH10202105

TYPE B:REFER ILLUST.

main90942-02082×5iMAXA10,MAXH10202105

TYPE C:REFER ILLUST.

42312EBOLT, HUB(FOR REAR AXLE LH)

main90942-02049×5iMAXA10,MAXH10202105

TYPE A:REFER ILLUST.

main90942-02081×5iMAXA10201807-202105

TYPE B:REFER ILLUST.

main90942-02082×5iMAXA10,MAXH10202105

TYPE C:REFER ILLUST.

42421EBOLT (FOR REAR AXLE BEARING CASE RH)

main90105-12406×4iMAXA10,MAXH10202105

(J)

main90105-C0328×4iMAXA10201807-202105

(L)

42422ABOLT (FOR REAR AXLE BEARING CASE LH)

main90105-12406×4iMAXA10201807-202105

(J)

main90105-C0328×4iMAXA10201807-202105

(L)

42431DISC, REAR

main42431-F4010×2iMAXA10,MAXH10202105

42450AHUB & BEARING ASSY, REAR AXLE, RH

main42450-F4020iMAXA10201807-202105

42450BHUB & BEARING ASSY, REAR AXLE, LH

main42450-F4020iMAXA10201807-202105

4804REAR SPRING & SHOCK ABSORBER

→ Go to FIG 48-04

8 parts on this diagram · 1 diagram in section
