OIL COOLER & TUBE (HEV OR BEV OR FCEV)

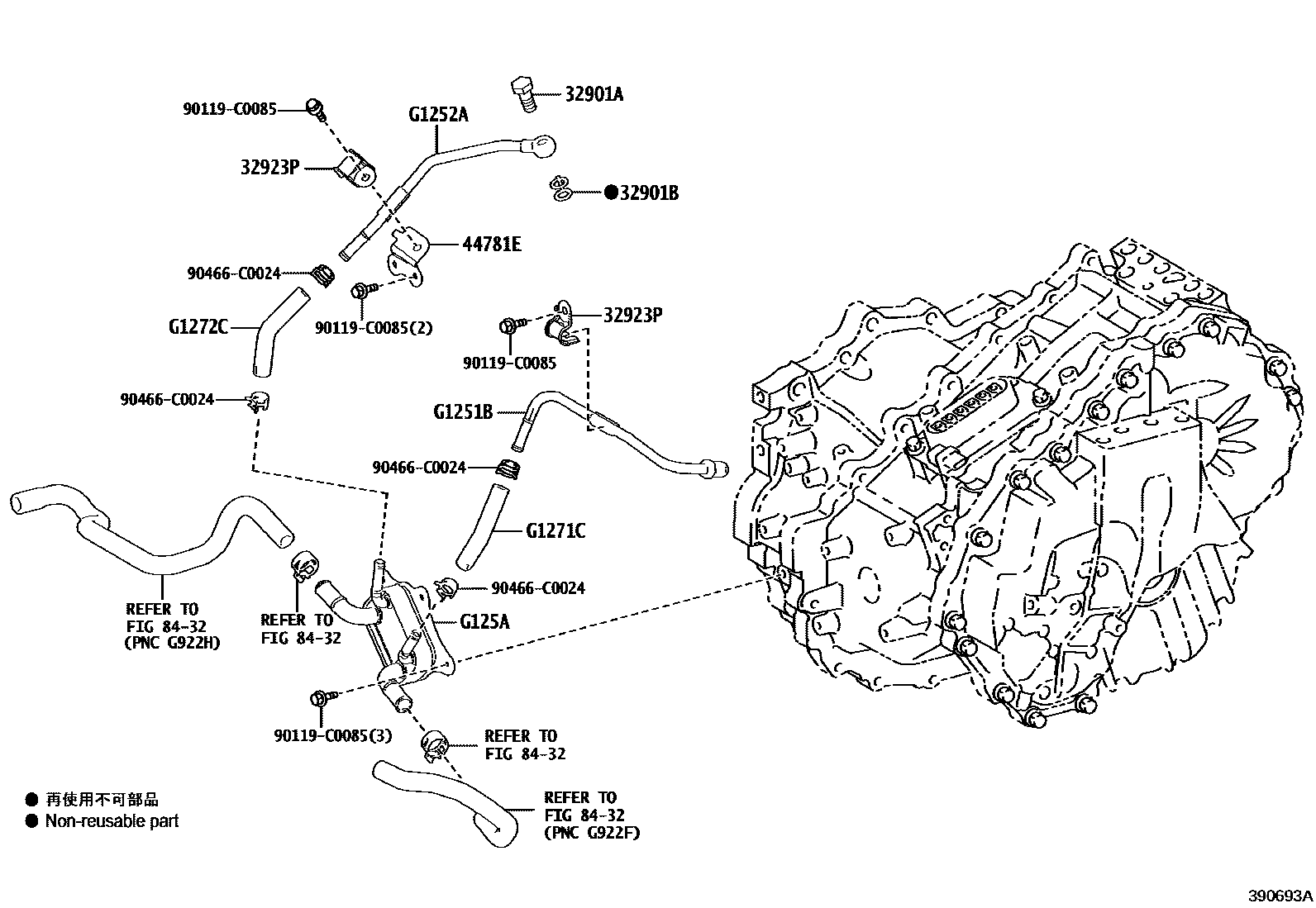

Parts diagram

32901ABOLT, UNION(FOR OIL COOLER)

main90401-12039i202105

32901BGASKET(FOR OIL COOLER UNION)

main90430-12037i202105

32923PCLAMP, OIL COOLER TUBE, NO.1

main32923-52040×2i202105

44781EBRACKET, HOSE

main44781-F4010i202105

8432INVERTER COOLING

→ Go to FIG 84-32

G1251BPIPE, MOTOR COOLING, NO.1

mainG1251F4010i202105

G1252APIPE, MOTOR COOLING, NO.2

mainG1252F4010i202105

G125ACOOLER, MOTOR COOLING

mainG125AF4010i202105

G1271CHOSE, MOTOR COOLING, NO.1

mainG1271F4010i202105

G1272CHOSE, MOTOR COOLING, NO.2

mainG1272F4010i202105

90119C0085

main90119-C0085

90466C0024

main90466-C0024

12 parts on this diagram · 1 diagram in section
