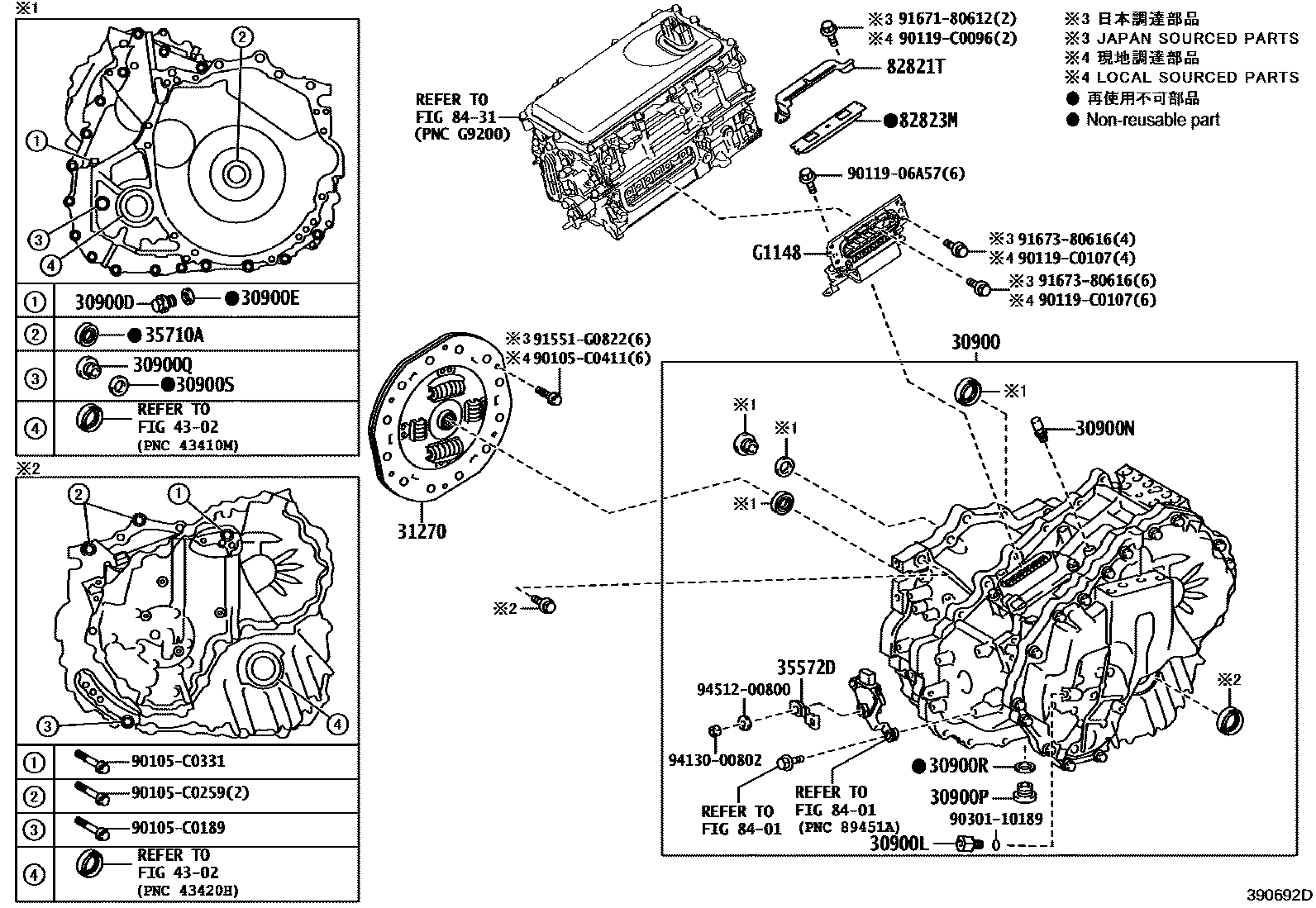

TRANSAXLE ASSY(HEV OR BEV OR FCEV)
30900TRANSAXLE ASSY, HYBRID VEHICLE
30900DPLUG, W/HEAD STRAIGHT SCREW(FOR TRANSAXLE HOUSING & CASE)
(J)
(L)
30900EGASKET(FOR TRANSAXLE HOUSING & CASE)
30900LUNION(FOR TRANSAXLE HOUSING)
30900NPLUG, BREATHER(FOR TRANSAXLE)
30900PPLUG, DRAIN(HEV)
30900QPLUG, FILLER(HEV)
30900RGASKET, DRAIN PLUG(HEV)
30900SGASKET, FILLER PLUG(HEV)
31270DAMPER ASSY, TRANSMISSION INPUT
35572DLEVER, TRANSMISSION CONTROL SHAFT
35710ASEAL, TYPE T OIL(FOR INPUT SHAFT)
4302FRONT DRIVE SHAFT
82821TCOVER, CONNECTOR
82823MCAP, TERMINAL
8401SWITCH & RELAY & COMPUTER
8431HEV INVERTER
G1148CABLE, MOTOR
90105C0189
main90105-C0189
90105C0259
main90105-C0259
90105C0331
main90105-C0331
90105C0411
main90105-C0411
9011906A57
main90119-06A57
90119C0096
main90119-C0096
90119C0107
main90119-C0107
9030110189
main90301-10189
91551G0822
main91551-G0822
9167180612
main91671-80612
9167380616
main91673-80616
9413000802
main94130-00802
9451200800
main94512-00800
31 parts on this diagram · 1 diagram in section
