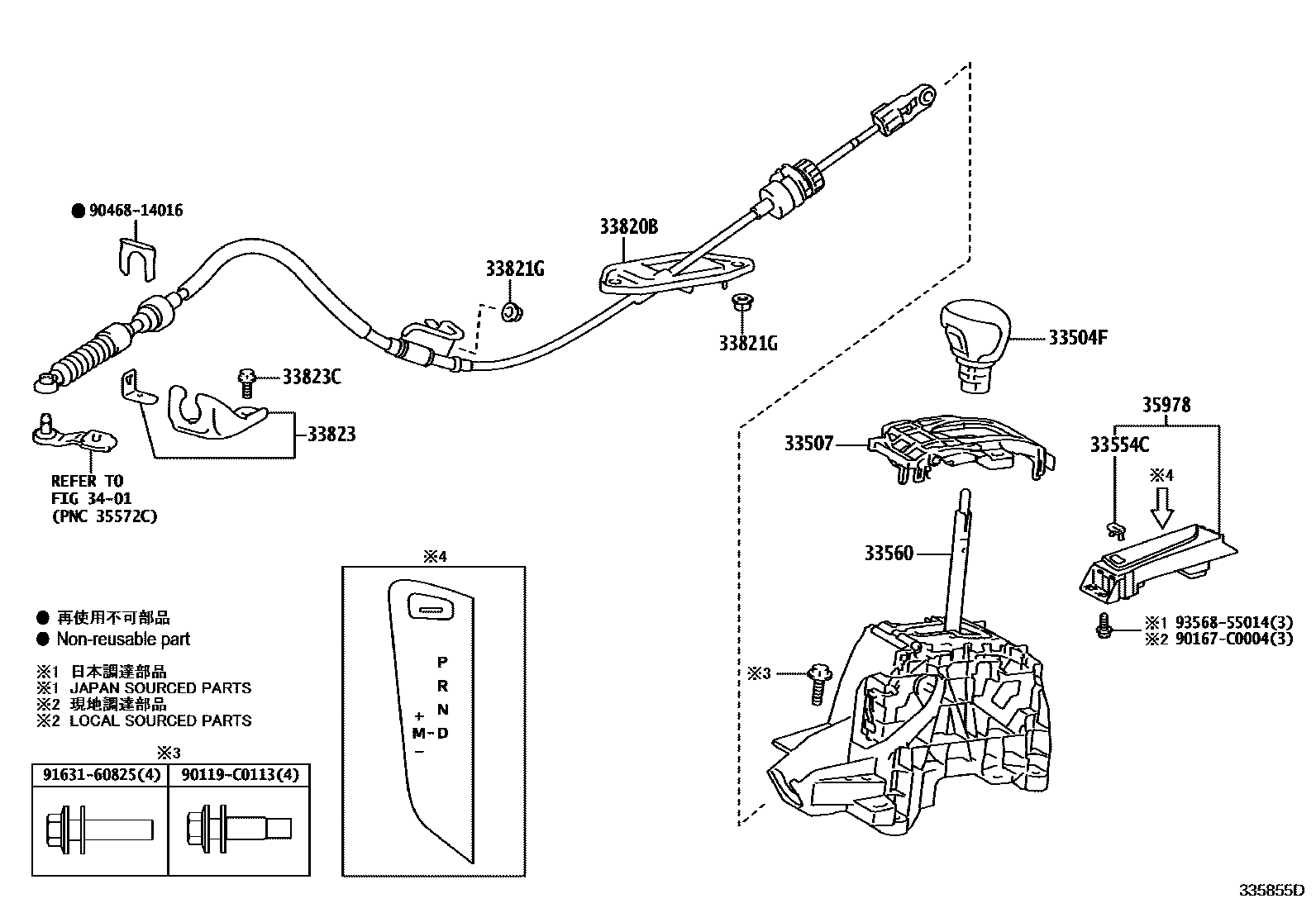

SHIFT LEVER & RETAINER

0001 1 0002 1

33504FKNOB SUB-ASSY, SHIFT LEVER

main33504-07060-C0iMAXA10,MAXH10..D,N202005-202105

BLACK,TRIM2#

main33504-F4030-C0iMAXA10..E201807-202105

BLACK,TRIM2#

33507BRACKET SUB-ASSY, SHIFT LEVER HOUSING

main33507-F4040iMAXA10,MAXH10201807-202105

33554CCOVER, SHIFT LOCK RELEASE BUTTON

main33554-F4050iMAXA10,MAXH10201807-202105

33560UNIT ASSY, SHIFT LOCK CONTROL

main33560-0R100iMAXH10202105

main33560-F4100iMAXA10..D201807-202105

main33560-F4110iMAXA10..G,N201807-202105

33820BCABLE ASSY, TRANSMISSION CONTROL

main33820-F4070iMAXA10201807-202105

main33820-F4140iMAXH10202105

33821GNUT (FOR TRANSMISSION CONTROL CABLE)

main90178-C0011iMAXA10201807-202105

(L)

main90178-C0034iMAXH10202105

(L)

main90179-06274iMAXA10201807-202105

(J)

main94151-80800iMAXH10202105

(J)

33823BRACKET, TRANSMISSION CONTROL CABLE, NO.1

main33823-F4040iMAXA10201807-202105

main33823-F4080iMAXH10202105

33823CBOLT (FOR TRANSMISSION CONTROL CABLE BRACKET)

main90119-08079iMAXA10201807-202105

(J)

main90119-C0212iMAXA10201807-202105

(L)

3401

35978INDICATOR, SHIFT POSITION

main35978-F4060iMAXH10202105

main35978-F4080iMAXA10201807-202304

main35978-F4140iMAXA10202304

90119C0113

main90119-C0113

90167C0004

main90167-C0004

9046814016

main90468-14016

9163160825

main91631-60825

9356855014

main93568-55014

15 parts on this diagram · 2 diagrams in section
