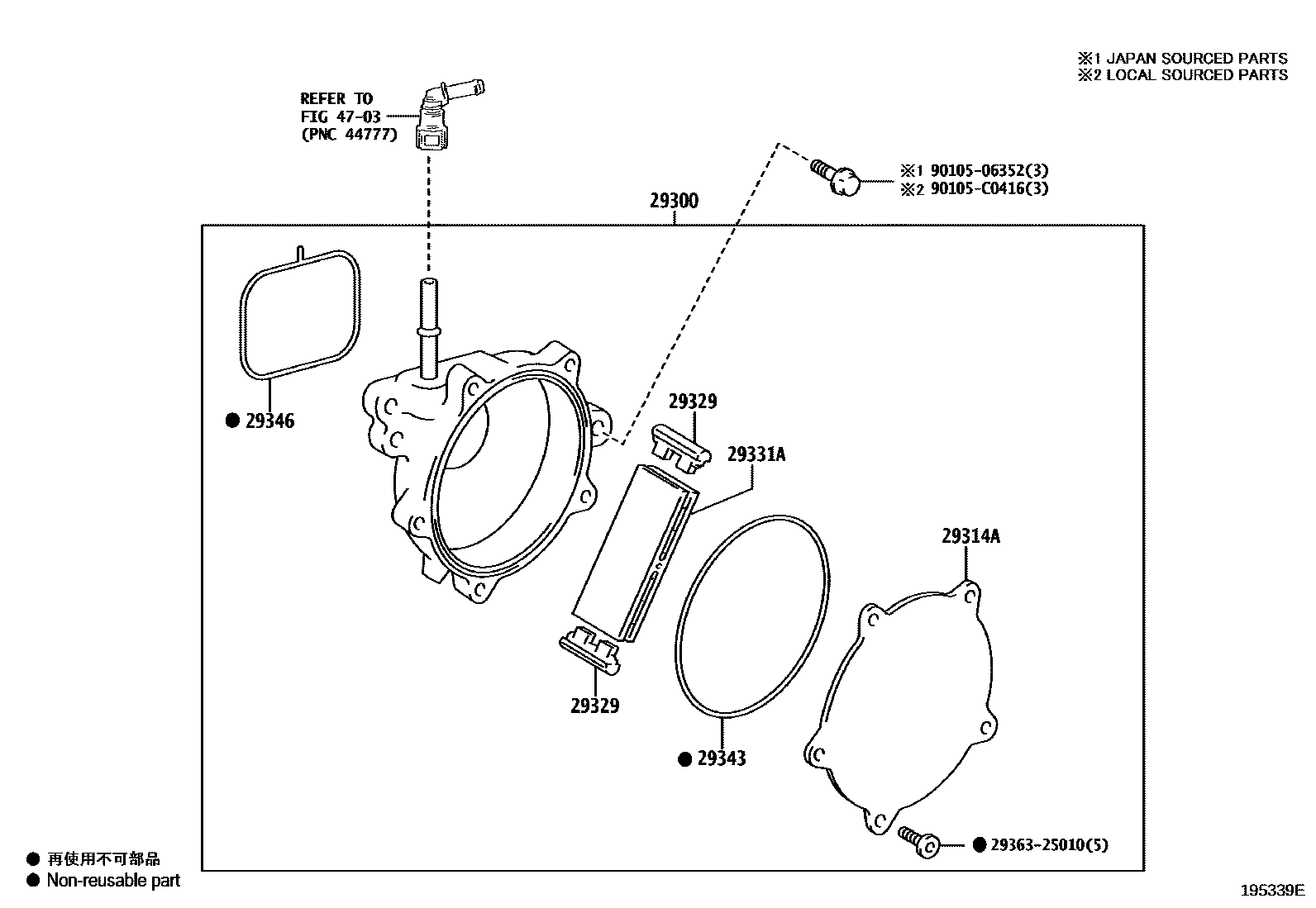

VACUUM PUMP

0001 1TAIHO 0002 1BOSCH

29300PUMP ASSY, VACUUM

main29300-24011iM20AFKS..MAXA10201807-202105

main29300-F2041iM20AFKS..MAXA10202102-202105

CHINA SOURCED PARTS

29314ACOVER, END

main29314-25010iM20AFKS..MAXA10201807-202105

29329CAP, VACUUM PUMP VANE

main29329-24011×2iM20AFKS..MAXA10201807-202105

main29329-25011×2iM20AFKS..MAXA10202202

TAIHO

29331AVANE, VACUUM PUMP

main29331-24010iM20AFKS..MAXA10201807-202105

main29331-37010iM20AFKS..MAXA10202202

TAIHO

29343RING, O VACUUM PUMP, NO.1

main29343-25010iM20AFKS..MAXA10201807-202105

29346RING, O VACUUM PUMP COVER

main29346-25010iM20AFKS..MAXA10201807-202105

4703BRAKE BOOSTER & VACUUM TUBE

→ Go to FIG 47-03

2936325010SCREW, HOLLOW VACUUM PUMP

main29363-25010

9010506352

main90105-06352

90105C0416

main90105-C0416

10 parts on this diagram · 2 diagrams in section
