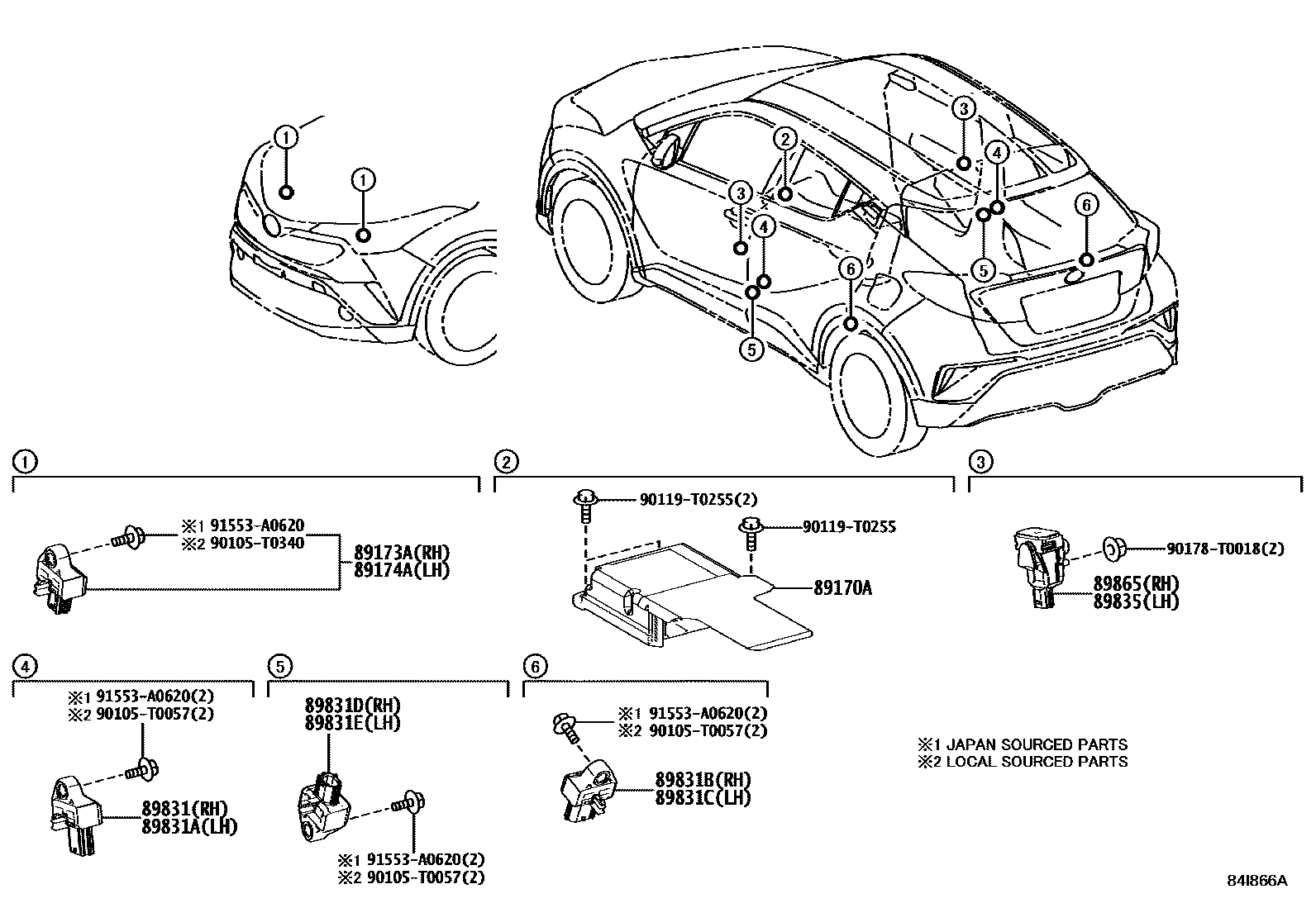

AIR BAG
89173ASENSOR, AIRBAG, FRONT RH
89174ASENSOR, AIRBAG, FRONT LH
89831SENSOR, SIDE AIRBAG, RH, NO.1
89831ASENSOR, SIDE AIRBAG, LH, NO.1
89831BSENSOR, SIDE AIRBAG, RH, NO.2
89831CSENSOR, SIDE AIRBAG, LH, NO.2
89831DSENSOR, FLOOR SIDE AIRBAG, RH
89831ESENSOR, FLOOR SIDE AIRBAG, LH
89835SENSOR, DOOR SIDE AIRBAG, LH
89865SENSOR, DOOR SIDE AIRBAG, RH
90105T0057
main90105-T0057
90105T0340
main90105-T0340
90119T0255
main90119-T0255
90178T0018
main90178-T0018
91553A0620
main91553-A0620
16 parts on this diagram · 1 diagram in section
