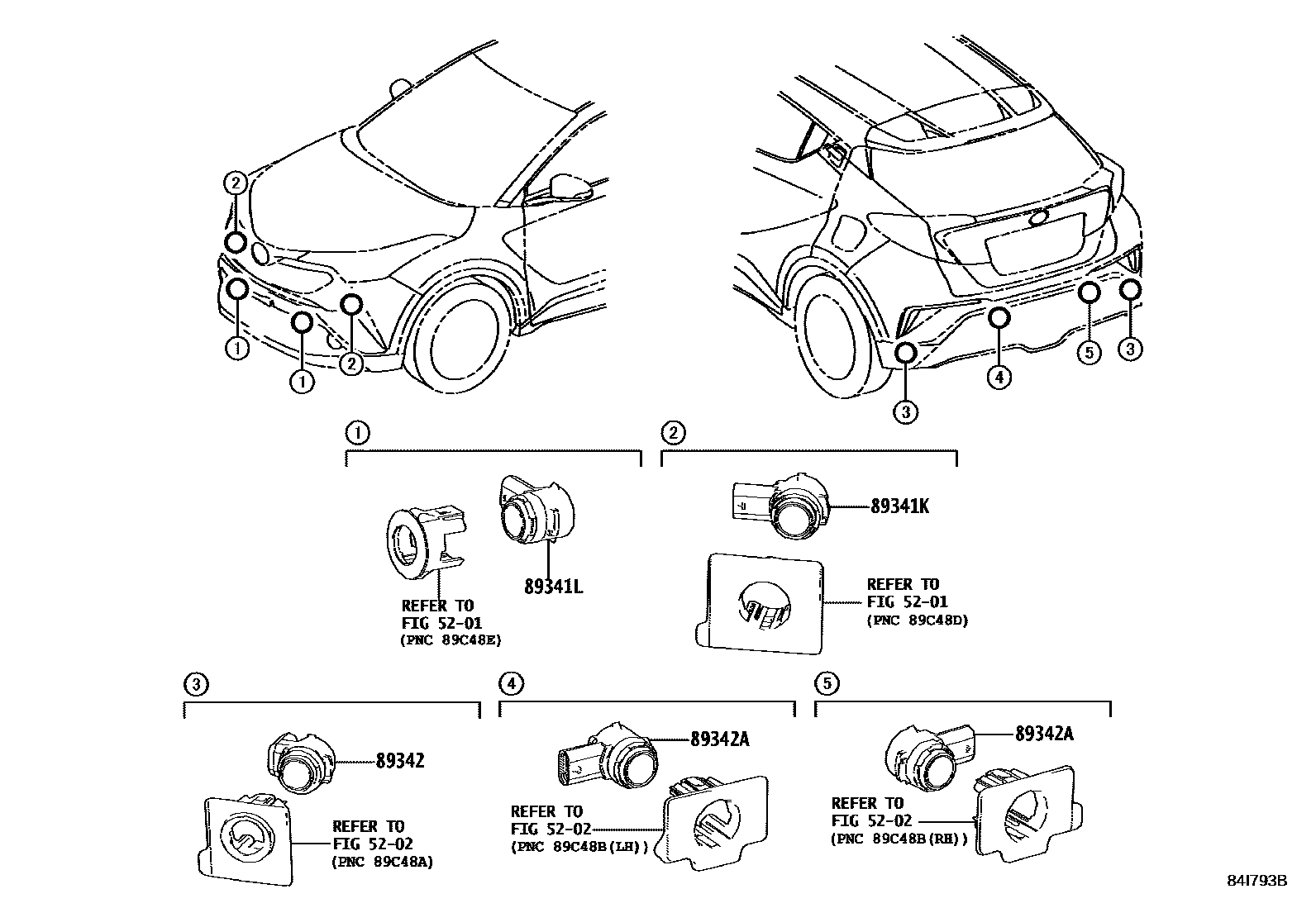

CLEARANCE & BACK SONAR
5201FRONT BUMPER & BUMPER STAY
5202REAR BUMPER & BUMPER STAY
89341KSENSOR, ULTRASONIC, FRONT CORNER
PLATINUM WHITE PEARL MC.,2VP,P/N LABEL=893410W010
METAL STREAM ME,1K0 ,2NK,P/N LABEL=893410W010
ATTITUDE BLACK MC.,218 ,2VQ,P/N LABEL=893410W010
RED MC.,2NF,P/N LABEL=893410W010
NEBULA BLUE ME.,2VR,P/N LABEL=893410W010
PLATINUM WHITE PEARL MC.,2VP,P/N LABEL=89341F4020
METAL STREAM ME,1K0 ,2NK,P/N LABEL=89341F4020
ATTITUDE BLACK MC.,218 ,2VQ,P/N LABEL=89341F4020
RED MC.,2NF,P/N LABEL=89341F4020
NEBULA BLUE ME.,2NH ,2VR,P/N LABEL=89341F4020
CLEARANCE & BACK SONAR-WITH,WHITE PEARL CS.,070 ,2NA,P/N LABEL=893410W010
CLEARANCE & BACK SONAR-WITH,RADIANT GREEN ME.,2PY,P/N LABEL=893410W010
CLEARANCE & BACK SONAR-WITH,BLUE ME.,2MU,P/N LABEL=893410W010
CLEARANCE & BACK SONAR-WITH,WHITE PEARL CS.,070 ,2NA,P/N LABEL=89341F4020
CLEARANCE & BACK SONAR-WITH,RADIANT GREEN ME.,2PY,P/N LABEL=89341F4020
CLEARANCE & BACK SONAR-WITH,BLUE ME.,2MU,P/N LABEL=89341F4020
89341LSENSOR, ULTRASONIC, FRONT CENTER
BLACK
89342SENSOR, ULTRASONIC, REAR CORNER
BLACK
89342ASENSOR, ULTRASONIC, REAR CENTER
BLACK
6 parts on this diagram · 2 diagrams in section
