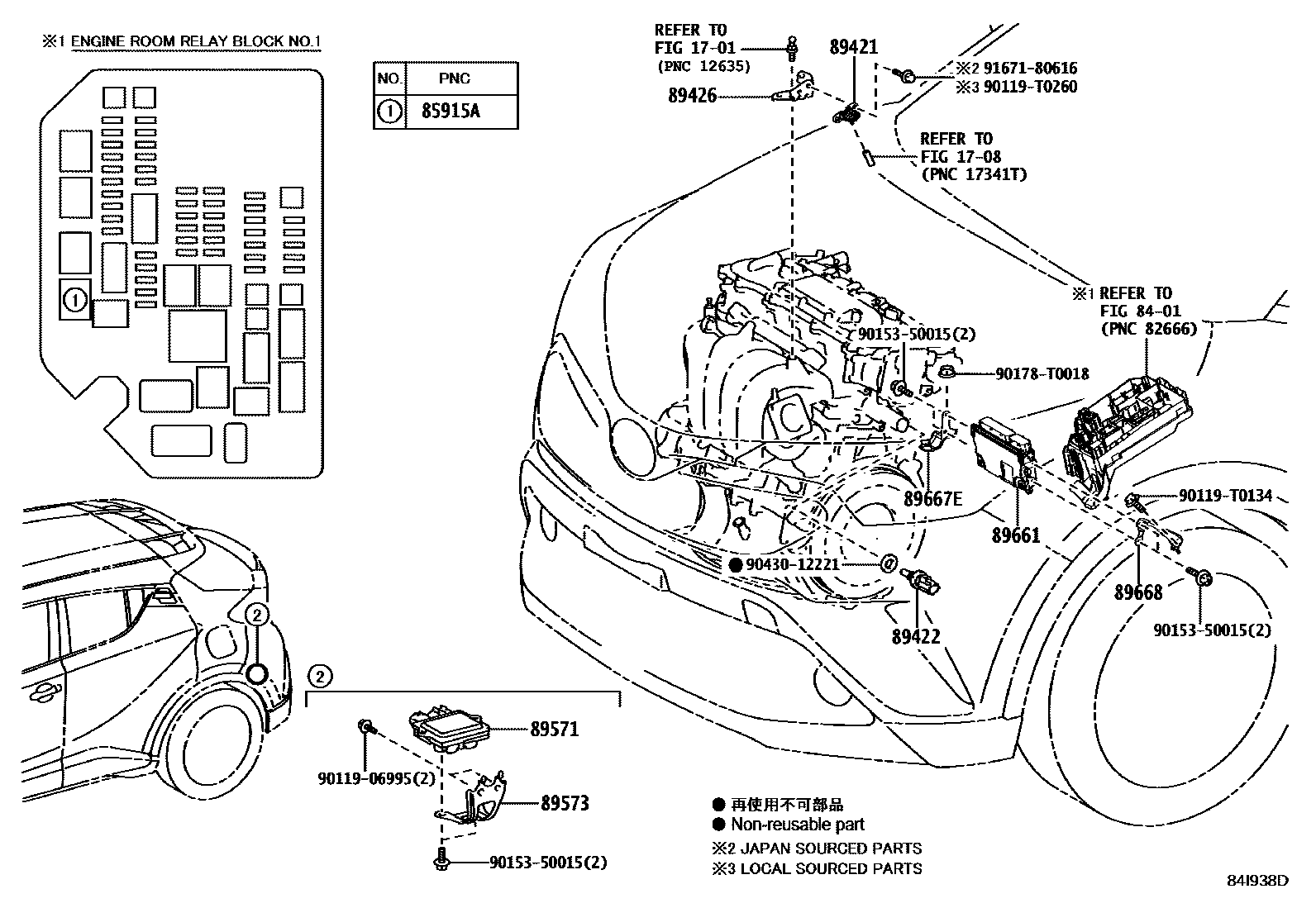

ELECTRONIC FUEL INJECTION SYSTEM

0001 1 0002 1

1701MANIFOLD

→ Go to FIG 17-01

1708VACUUM PIPING

→ Go to FIG 17-08

8401SWITCH & RELAY & COMPUTER

→ Go to FIG 84-01

85915ARELAY, MAIN

main90987-02027iZGX11..IDN,MA201802-202105

(J)

main90987-T2001iZGX11..TH201802-202006

(L)

89421SENSOR ASSY, VACUUM (FOR E.F.I.)

main89421-26030iZGX11..TH201802-202006

89422SENSOR, WATER TEMPERATURE (FOR E.F.I.)

main89422-33030iZGX11..TH201802-202006

89426BRACKET, VACUUM SENSOR

main89426-12270iZGX11201802-202105

89571COMPUTER, FUEL PUMP CONTROL

main89571-33030iZGX11201802-201808

main89571-42010iZGX11..TH201809-202006

89573BRACKET, FUEL PUMP CONTROL COMPUTER

main89573-F4030iZGX11..TH201802-202006

89661COMPUTER, ENGINE CONTROL

main89661-F4180supersedes 89661-F4170iZGX11..IDN,MA201802-202105

FUJITSU TEN

main89661-F4190iZYX10201802-202205

DENSO

main89661-F4680iZYX10202205

DENSO

main89661-F4200iZYX10..G201802-202106

DENSO,BRUNEI SPEC

89667EBRACKET, ENGINE CONTROL COMPUTER, NO.1

main89667-F4040iZGX11201802-202105

main89667-F4050iZYX10201802

89668BRACKET, ENGINE CONTROL COMPUTER, NO.2

main89668-F4040iZGX11201802-202105

main89668-F4050iZYX10201802

9011906995

main90119-06995

90119T0134

main90119-T0134

90119T0260

main90119-T0260

9015350015

main90153-50015

90178T0018

main90178-T0018

9043012221

main90430-12221

9167180616

main91671-80616
