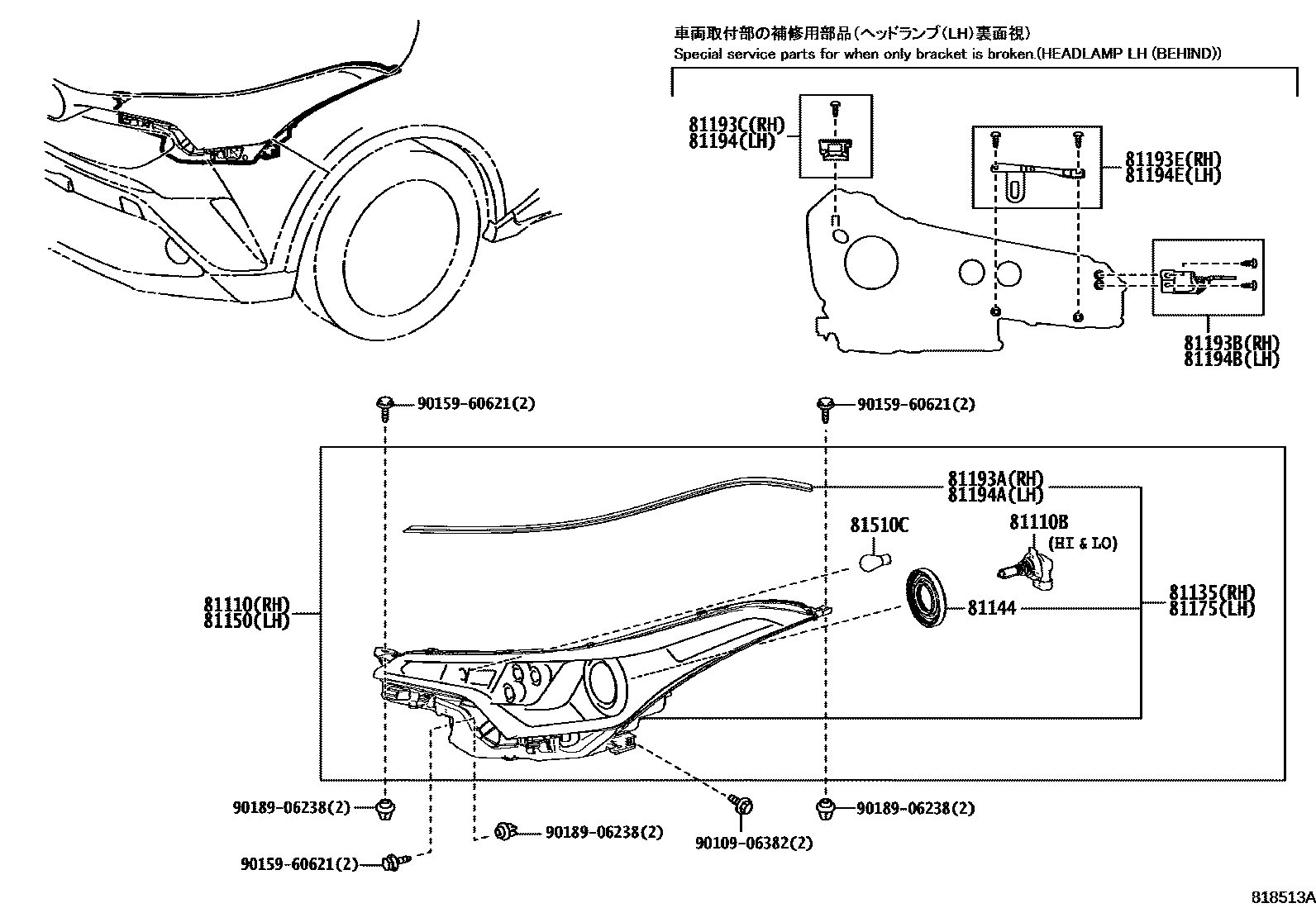

HEADLAMP
81110HEADLAMP ASSY, RH
MARK=E
MARK=F
MARK=F
81110BBULB(FOR HEADLAMP, NO.1)
12V 55W,HALOGEN
81135UNIT ASSY, HEADLAMP, RH
MARK=E
MARK=F
81144COVER, HEADLAMP, NO.1
81150HEADLAMP ASSY, LH
MARK=E
MARK=F
MARK=F
81175UNIT ASSY, HEADLAMP, LH
MARK=E
MARK=F
81193APROTECTOR, HEADLAMP, RH
(J)
(L)
81193BRETAINER, HEADLAMP PROTECTOR, UPPER RH NO.2
81193CRETAINER, RH HEADLAMP PROTECTOR, UPPER RH
81193ERETAINER, HEADLAMP PROTECTOR, UPPER RH NO.3
81194RETAINER, HEADLAMP PROTECTOR, UPPER LH
81194APROTECTOR, HEADLAMP, LH
(L)
81194BRETAINER, HEADLAMP PROTECTOR, UPPER LH NO.2
81194ERETAINER, HEADLAMP PROTECTOR, UPPER LH NO.3
81510CBULB (FOR FRONT TURN SIGNAL LAMP)
12V 21W,AMBER
9010906382
main90109-06382
9015960621
main90159-60621
9018906238
main90189-06238
18 parts on this diagram · 2 diagrams in section
