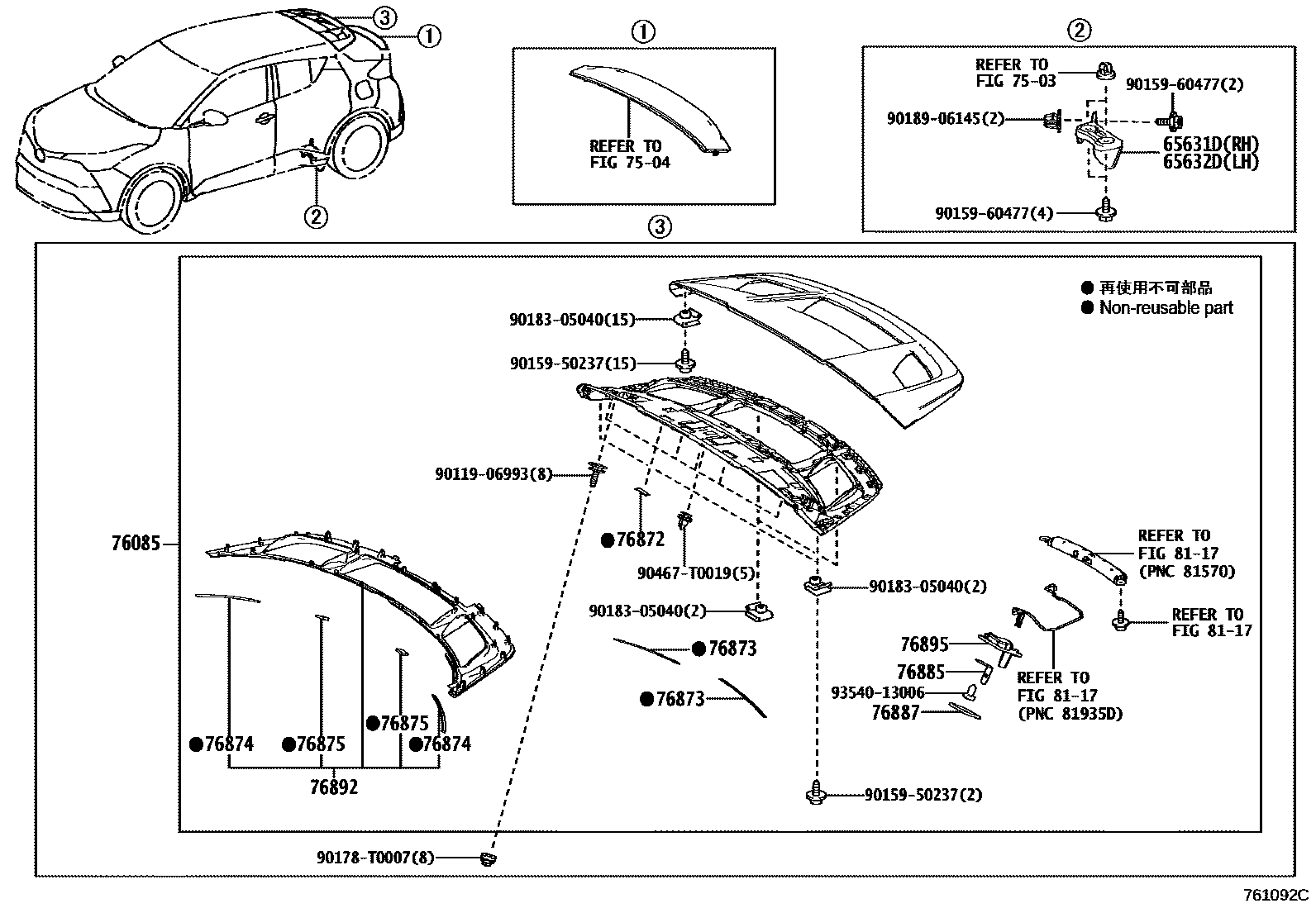

MUDGUARD & SPOILER

65631DPLATE, REAR WHEEL HOUSE, FRONT RH

main65631-10010iZGX11..TH201802-202006

65632DPLATE, REAR WHEEL HOUSE, FRONT LH

main65632-10010iZGX11..TH201802-202006

7503

7504

76085SPOILER SUB-ASSY, REAR

main76085-F4900iZGX11..TH201802-202006

76872PROTECTOR, REAR SPOILER, NO.1

main76872-F4020×6iZGX11..TH201802-202006

76873PROTECTOR, REAR SPOILER, NO.2

main76873-F4020×2iZGX11..TH201802-202006

76874PROTECTOR, REAR SPOILER, NO.3

main76874-F4040×2iZGX11..TH201802-202006

76875PROTECTOR, REAR SPOILER, NO.4

main76875-F4020×2iZGX11..TH201802-202006

76885RETAINER, REAR SPOILER, NO.5

main76885-F4020iZGX11..TH201802-202006

76887SEAL, REAR SPOILER

main76887-F4020iZGX11..TH201802-202006

76892SPOILER, REAR NO.2

main76892-F4020iZGX11..TH201802-202006

76895PROTECTOR, REAR SPOILER, NO.5

main76895-F4020iZGX11..TH201802-202006

8117

9011906993

main90119-06993

9015950237

main90159-50237

9015960477

main90159-60477

90178T0007

main90178-T0007

9018305040

main90183-05040

9018906145

main90189-06145

90467T0019

main90467-T0019

9354013006

main93540-13006

22 parts on this diagram · 1 diagram in section
