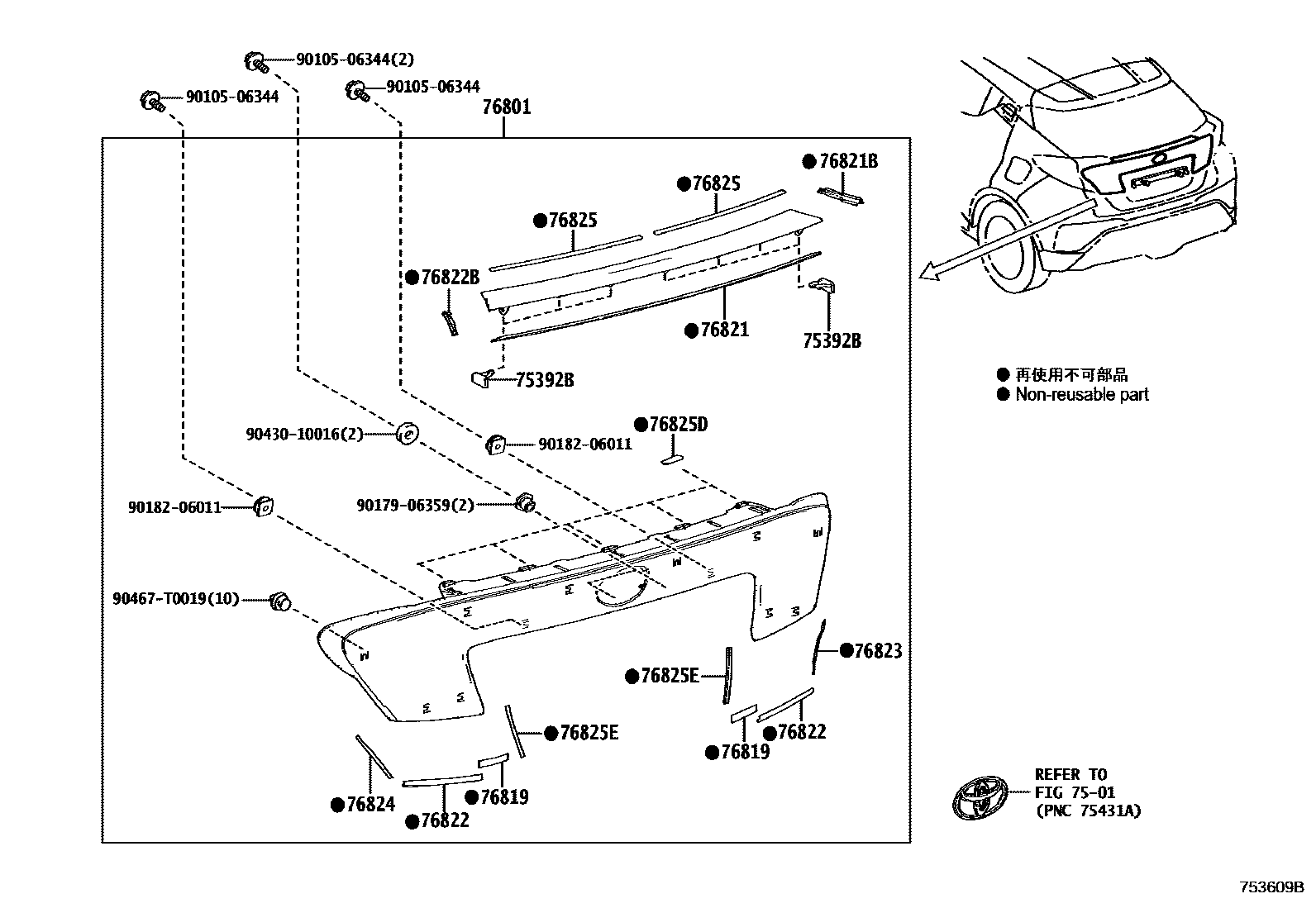

REAR MOULDING

7501EMBLEM & NAME PLATE (EXTERIOR & INTERIOR)

→ Go to FIG 75-01

75392BRETEINER, OUTSIDE MOULDING, NO.1

main75392-0K010×7iZYX10202003

main75392-35200×7iZGX11,ZYX10201802-202003

76801GARNISH SUB-ASSY, BACK DOOR, OUTSIDE

main76801-F4901iZYX10201802

76819SEAL, BACK DOOR OUTSIDE GARNISH

main76819-F4040×2iZGX11..IDN,MA201802-202105

76821PROTECTOR, BACK DOOR GARNISH MOULDING, UPPER

main76823-F4020iZGX11..TH201802-202006

76821BPROTECTOR, BACK DOOR GARNISH SIDE, RH

main76841-F4020iZGX11..TH201802-202006

76822PROTECTOR, BACK DOOR GARNISH MOULDING, LOWER

main76821-F4020×2iZYX10201802

76822BPROTECTOR, BACK DOOR GARNISH SIDE, LH

main76842-F4020iZGX11..TH201802-202006

76823PROTECTOR, BACK DOOR GARNISH MOULDING, RH

main76824-F4020iZGX11..TH201802-202006

76824PROTECTOR, BACK DOOR GARNISH MOULDING, LH

main76824-F4020iZGX11..TH201802-202006

76825PROTECTOR, BACK DOOR OUTSIDE GARNISH

main76825-F4020×2iZGX11..TH201802-202006

76825DPROTECTOR, BACK DOOR OUTSIDE GARNISH, NO.1

main76835-F4020×5iZGX11..TH201802-202006

76825EPROTECTOR, BACK DOOR OUTSIDE GARNISH, NO.2

main76822-F4020×2iZGX11..TH201802-202006

9010506344

main90105-06344

9017906359

main90179-06359

9018206011

main90182-06011

9043010016

main90430-10016

90467T0019

main90467-T0019

18 parts on this diagram · 1 diagram in section
