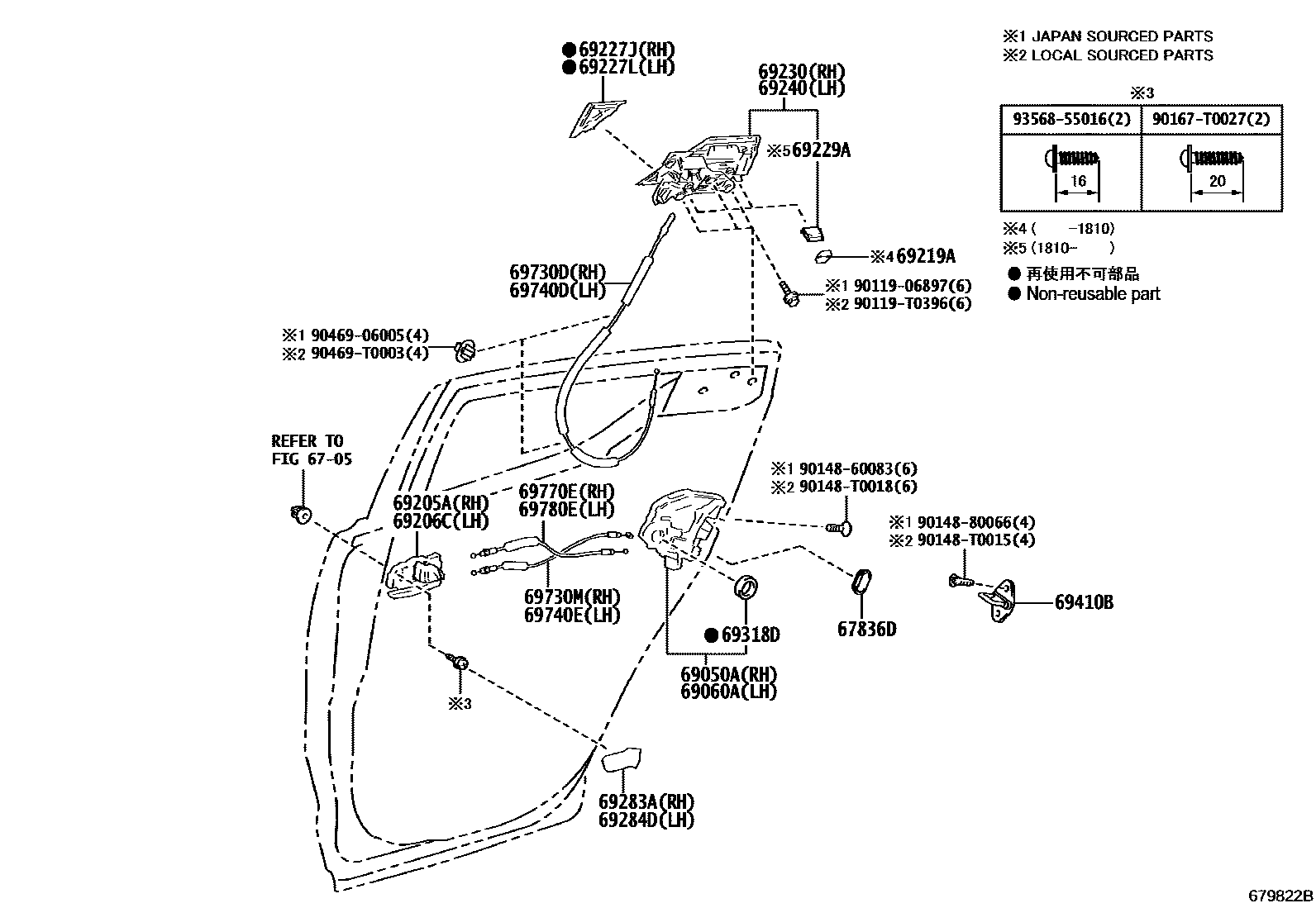

REAR DOOR LOCK & HANDLE
6705
67836DCOVER, REAR DOOR LOCK CHILD PROTECTION
69050ALOCK ASSY, REAR DOOR W/MOTOR, RH
69060ALOCK ASSY, REAR DOOR W/MOTOR, LH
69205AHANDLE SUB-ASSY, REAR DOOR INSIDE, RH
BLACK,TRIM2#
69206CHANDLE SUB-ASSY, REAR DOOR INSIDE, LH
BLACK,TRIM2#
69219ASEAL, REAR DOOR OUTSIDE HANDLE
69227JCOVER, REAR DOOR OUTSIDE HANDLE, RH
BLACK
69227LCOVER, REAR DOOR OUTSIDE HANDLE, LH
BLACK
69229ACAP, DOOR OUTSIDE HANDLE, NO.3
69230HANDLE ASSY, REAR DOOR OUTSIDE, RH
PAINT REQ.
69240HANDLE ASSY, REAR DOOR OUTSIDE, LH
PAINT REQ.
69283APLUG, REAR DOOR INSIDE HANDLE BEZEL, RH
BLACK,TRIM2#
69284DPLUG, REAR DOOR INSIDE HANDLE BEZEL, LH
BLACK,TRIM2#
69318DSEAL, DOOR LOCK WIRING HARNESS
69410BPLATE ASSY, REAR DOOR LOCK STRIKER
69730DCABLE ASSY, REAR DOOR LOCK REMOTE CONTROL, RH
69730MCABLE, REAR DOOR LOCK REMOTE CONTROL, RH(FOR OPEN LEVER)
69740DCABLE ASSY, REAR DOOR LOCK REMOTE CONTROL LH
69740ECABLE, REAR DOOR LOCK REMOTE CONTROL, LH(FOR OPEN LEVER)
69770ECABLE, REAR DOOR INSIDE LOCKING, RH(FOR LOCK / UNLOCK KNOB)
69780ECABLE, REAR DOOR INSIDE LOCKING, LH(FOR LOCK / UNLOCK KNOB)
9011906897
main90119-06897
90119T0396
main90119-T0396
9014860083
main90148-60083
9014880066
main90148-80066
90148T0015
main90148-T0015
90148T0018
main90148-T0018
90167T0027
main90167-T0027
9046906005
main90469-06005
90469T0003
main90469-T0003
9356855016
main93568-55016
32 parts on this diagram · 1 diagram in section
