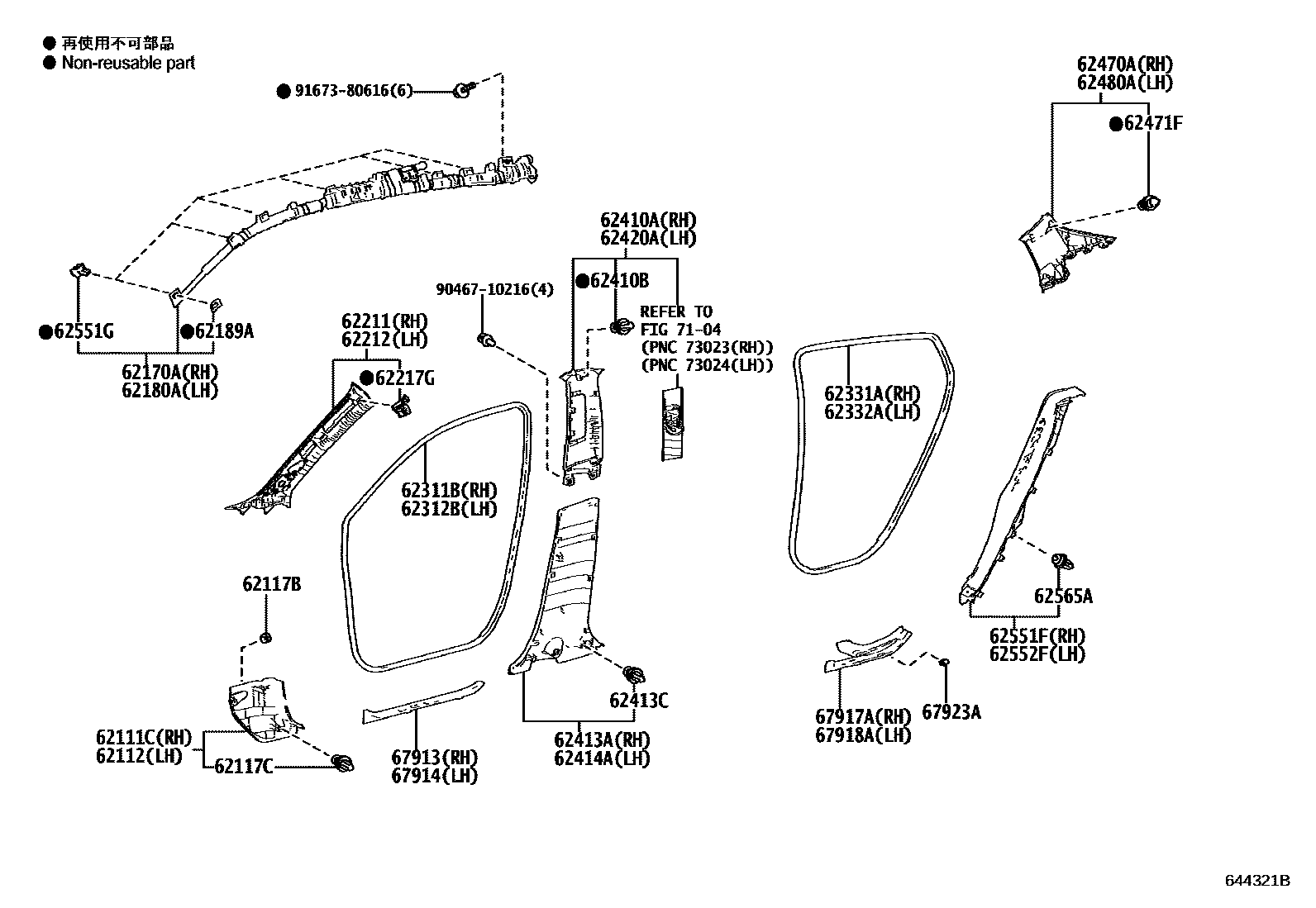

INSIDE TRIM BOARD & DOOR OPENING TRIM MOULDING
62111CBOARD, COWL SIDE TRIM, RH
BLACK,TRIM2#
62112BOARD, COWL SIDE TRIM, LH
BLACK,TRIM2#
62117BCLIP, NO.1(FOR COWL SIDE TRIM)
62117CCLIP, NO.2(FOR COWL SIDE TRIM)
62170AAIRBAG ASSY, CURTAIN SHIELD, RH
62180AAIRBAG ASSY, CURTAIN SHIELD, LH
62189ASPACER, CURTAIN SHIELD AIRBAG CLIP
62211GARNISH, FRONT PILLAR, RH
BLACK,TRIM2#
62212GARNISH, FRONT PILLAR, LH
BLACK,TRIM2#
62217GCLIP, FRONT PILLAR GARNISH
62311BWEATHERSTRIP, FRONT DOOR OPENING TRIM, RH
62312BWEATHERSTRIP, FRONT DOOR OPENING TRIM, LH
62331AWEATHERSTRIP, REAR DOOR OPENING TRIM, RH
62332AWEATHERSTRIP, REAR DOOR OPENING TRIM, LH
62410AGARNISH ASSY, CENTER PILLAR, RH
BLACK,TRIM2#
62410BCLIP
62413AGARNISH, CENTER PILLAR, LOWER RH
BLACK,TRIM2#
62413CCLIP (FOR CENTER LOWER GARNISH)
(J)
(L)
62414AGARNISH, CENTER PILLAR, LOWER LH
BLACK,TRIM2#
62420AGARNISH ASSY, CENTER PILLER, LH
BLACK,TRIM2#
62470AGARNISH ASSY, ROOF SIDE, INNER RH
BLACK,TRIM2#
62471FCLIP (FOR ROOF SIDE, INNER UPPER GARNISH)
62480AGARNISH ASSY, ROOF SIDE, INNER LH
BLACK,TRIM2#
62551FGARNISH, REAR SEAT SIDE, RH
BLACK,TRIM2#
BLACK,TRIM2#
62551GCLIP
62552FGARNISH, REAR SEAT SIDE, LH
BLACK,TRIM2#
BLACK,TRIM2#
62565ACLIP (FOR REAR SEAT SIDE GARNISH)
67913PLATE, FRONT DOOR SCUFF, RH
BLACK,TRIM2#
67914PLATE, FRONT DOOR SCUFF, LH
BLACK,TRIM2#
67917APLATE, REAR DOOR SCUFF, RH
BLACK,TRIM2#
BLACK,TRIM2#
BLACK,TRIM2#,(J)
BLACK,TRIM2#,(L)
67918APLATE, REAR DOOR SCUFF, LH
BLACK,TRIM2#
BLACK,TRIM2#,(J)
BLACK,TRIM2#
BLACK,TRIM2#,(L)
67923ACLAMP, DOOR SCUFF PLATE, NO.1
7104
9046710216
main90467-10216
9167380616
main91673-80616
35 parts on this diagram · 1 diagram in section
