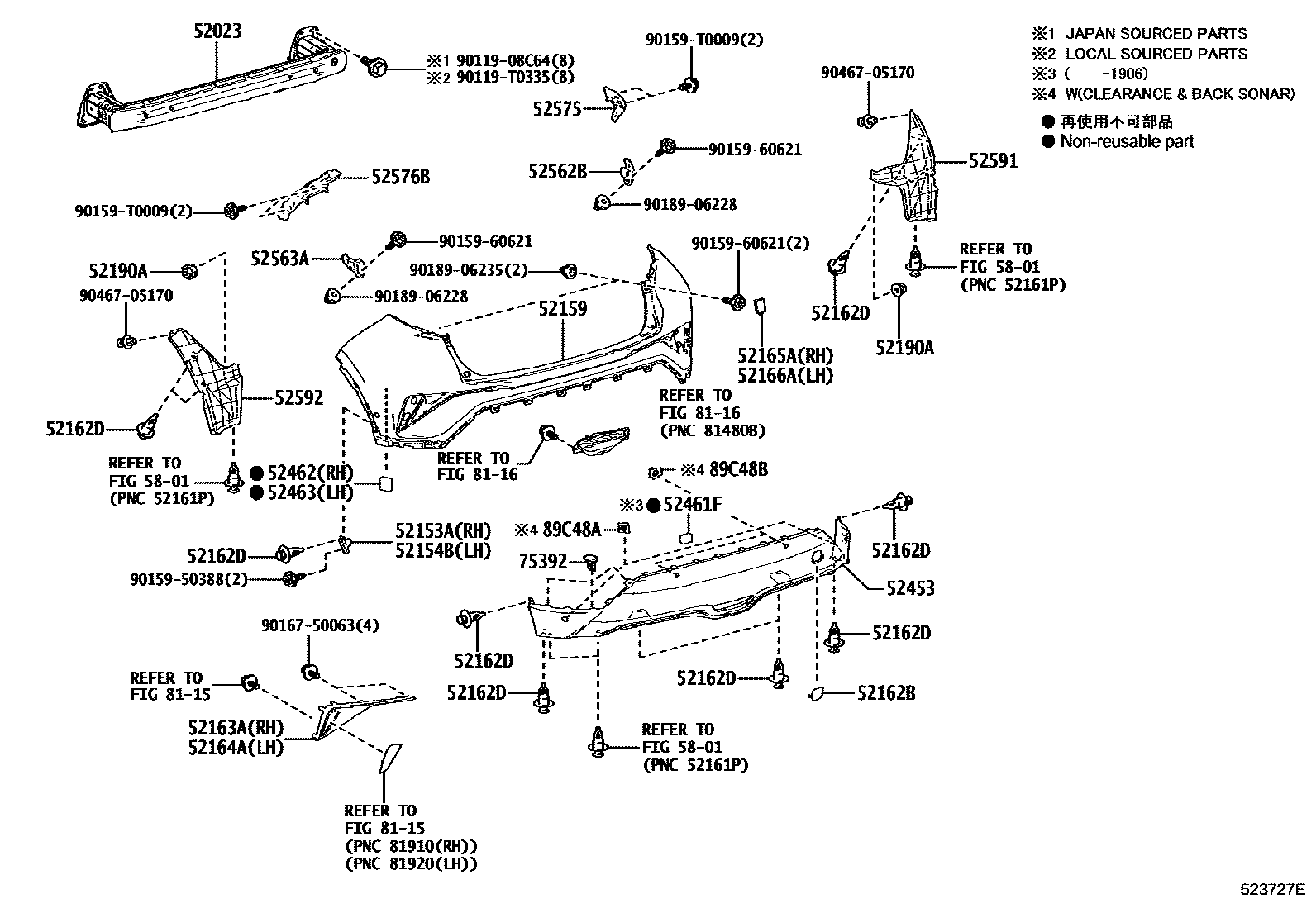

REAR BUMPER & BUMPER STAY
52023REINFORCEMENT SUB-ASSY, REAR BUMPER
52153ASTAY, REAR BUMPER SIDE, RH
52154BSTAY, REAR BUMPER SIDE, LH
52159COVER, REAR BUMPER
52162BPLATE, REAR BUMPER, NO.1
52162DPIECE, REAR BUMPER
52163APLATE, REAR BUMPER, RH
52164APLATE, REAR BUMPER, LH
52165ACOVER, REAR BUMPER, UPR RH
52166ACOVER, REAR BUMPER, UPR LH
52190ACLIP
BLACK
52453GUARD, REAR BUMPER, CENTER
52461FPAD, REAR BUMPER
CLEARANCE & BACK SONAR-WITH
52562BRETAINER, REAR BUMPER, UPPER RH
52563ARETAINER, REAR BUMPER, UPPER LH
52575RETAINER, REAR BUMPER SIDE, RH
52576BRETAINER, REAR BUMPER SIDE, LH
52591SEAL, REAR BUMPER SIDE, RH
52592SEAL, REAR BUMPER SIDE, LH
5801FLOOR PAN & LOWER BACK PANEL
75392RETAINER, OUTSIDE MOULDING
8115REFLEX REFLECTOR
8116REAR FOG LAMP
89C48ARETAINER, ULTRASONIC SENSOR, REAR CORNER
BLACK
89C48BRETAINER, ULTRASONIC SENSOR, REAR CENTER
LH
RH
9011908C64
main90119-08C64
90119T0335
main90119-T0335
9015950388
main90159-50388
9015960621
main90159-60621
90159T0009
main90159-T0009
9016750063
main90167-50063
9018906228
main90189-06228
9018906235
main90189-06235
9046705170
main90467-05170
36 parts on this diagram · 1 diagram in section
