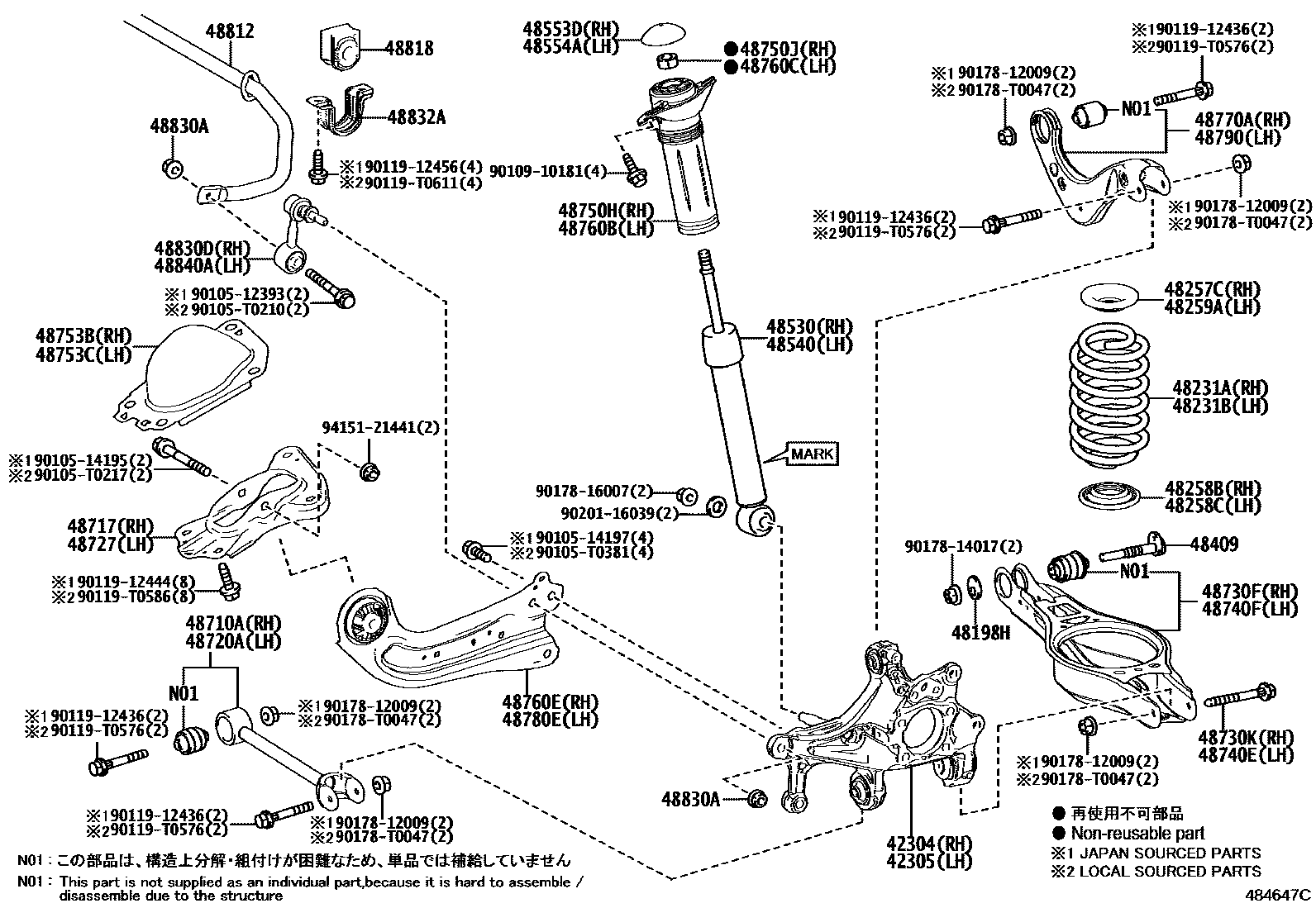

REAR SPRING & SHOCK ABSORBER
42304CARRIER SUB-ASSY, REAR AXLE, RH
42305CARRIER SUB-ASSY, REAR AXLE, LH
48198HCAM, CAMBER ADJUST, NO.2
48231ASPRING, COIL, REAR RH
48231BSPRING, COIL, REAR LH
48257CINSULATOR, REAR COIL SPRING, UPPER RH
48258BINSULATOR, REAR COIL SPRING, LOWER RH
48258CINSULATOR, REAR COIL SPRING, LOWER LH
48259AINSULATOR, REAR COIL SPRING, UPPER LH
48409CAM SUB-ASSY, REAR SUSPENSION TOE ADJUST
48530ABSORBER ASSY, SHOCK, REAR RH
MARK 48530-F4080
MARK 48530-F4090
48540ABSORBER ASSY, SHOCK, REAR LH
MARK 48530-F4080
MARK 48530-F4090
48553DCAP, REAR SHOCK ABSORBER, RH
48554ACAP, REAR SHOCK ABSORBER, LH
48710AARM ASSY, REAR SUSPENSION, NO.1 RH
48717BRACKET, REAR SUSPENSION ARM, RH
48720AARM ASSY, REAR SUSPENSION, NO.1 LH
48727BRACKET, REAR SUSPENSION ARM, LH
48730FARM ASSY, REAR SUSPENSION, NO.2 RH
48730KBOLT(FOR REAR SUSPENSION ARM NO.2 RH)
(J)
(L)
48740EBOLT(FOR REAR SUSPENSION ARM NO.2 LH)
(J)
(L)
48740FARM ASSY, REAR SUSPENSION, NO.2 LH
48750JNUT(FOR REAR SUPPORT TO REAR SHOCK ABSORBER RH)
48753BCOVER, REAR SUSPENSION SUPOPORT, NO.1 RH
48753CCOVER, REAR SUSPENSION SUPOPORT, NO.1 LH
48760CNUT(FOR REAR SUPPORT TO REAR SHOCK ABSORBER LH)
48760EARM ASSY, TRAILING, REAR RH
48770AARM ASSY, UPPER CONTROL, REAR RH
48780EARM ASSY, TRAILING, REAR LH
48790ARM ASSY, UPPER CONTROL, REAR LH
48812BAR, STABILIZER, REAR
48818BUSH, STABILIZER, REAR
48830ANUT(FOR REAR STABILIZER LINK)
(L)
(J)
48830DLINK ASSY, REAR STABILIZER, RH
48832ABRACKET, REAR STABILIZER BAR, NO.1
48840ALINK ASSY, REAR STABILIZER, LH
9010512393
main90105-12393
9010514195
main90105-14195
9010514197
main90105-14197
90105T0210
main90105-T0210
90105T0217
main90105-T0217
90105T0381
main90105-T0381
9010910181
main90109-10181
9011912436
main90119-12436
9011912444
main90119-12444
9011912456
main90119-12456
90119T0576
main90119-T0576
90119T0586
main90119-T0586
90119T0611
main90119-T0611
9017812009
main90178-12009
9017814017
main90178-14017
9017816007
main90178-16007
90178T0047
main90178-T0047
9020116039
main90201-16039
9415121441
main94151-21441
57 parts on this diagram · 1 diagram in section
