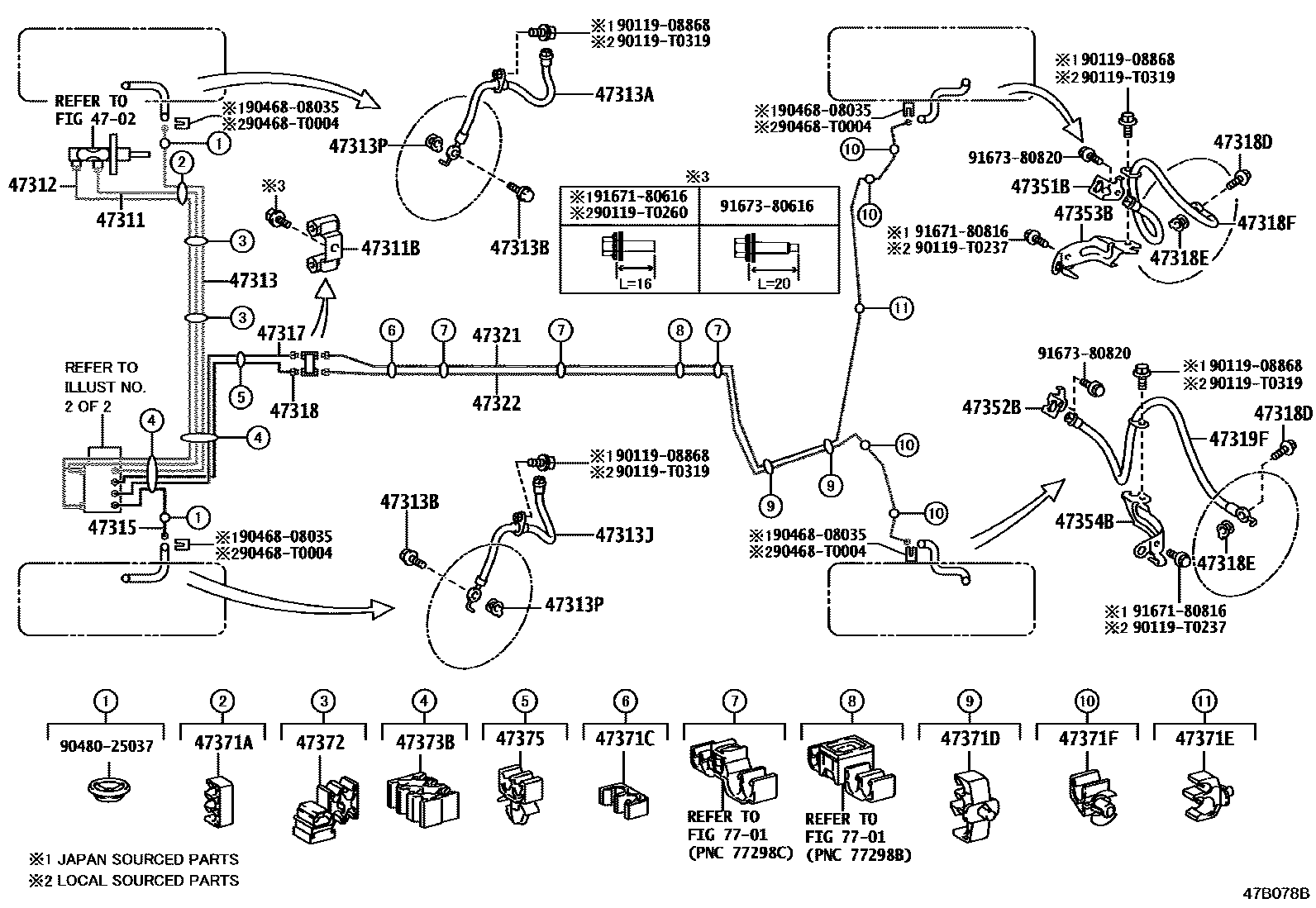

BRAKE TUBE & CLAMP

0001 1BRAKE TUBE 0002 1BRAKE TUBE 0003 1BRAKE ACTUATOR 0004 1BRAKE ACTUATOR & BOOSTER PUMP

4702BRAKE MASTER CYLINDER

→ Go to FIG 47-02

47311TUBE, FRONT BRAKE, NO.1

main47311-F4050iZGX11..TH201802-202006

main47311-F4060iZYX10201802

47311BWAY, NO.1(FOR FRONT BRAKE TUBE)

main90412-10285iZGX11..TH201802-202006

47312TUBE, FRONT BRAKE, NO.2

main47312-F4050iZGX11..TH201802-202006

main47312-F4060iZYX10201802

47313TUBE, FRONT BRAKE, NO.3

main47313-F4050iZGX11..TH201802-202006

main47313-F4060iZYX10201802

47313AHOSE, FLEXIBLE, NO.1(FOR FRONT)

main90947-02H46iZGX11,ZYX10201802-201904

main90947-T2128iZGX11..IDN,MA201904-202105

47313BBOLT, UNION(FOR FRONT FLEXIBLE HOSE)

main90401-10058×2iZGX11..TH201802-202006

47313JHOSE, FLEXIBLE, NO.2(FOR FRONT)

main90947-02H47iZGX11,ZYX10201802-201904

main90947-T2129iZGX11..IDN,MA201904-202105

47313PGASKET(FOR FRONT FLEXIBLE HOSE)

main47389-50021×2iZGX11..TH201802-202006

47315TUBE, FRONT BRAKE, NO.5

main47315-F4050iZGX11..TH201802-202006

main47315-F4060iZYX10201802

47317TUBE, FRONT BRAKE, NO.7

main47317-F4050iZGX11..TH201802-202006

main47317-F4060iZYX10201802

47318TUBE, FRONT BRAKE, NO.8

main47318-F4050iZGX11..TH201802-202006

main47318-F4060iZYX10201802

47318DBOLT, UNION(FOR REAR FLEXIBLE HOSE)

main90401-10058×2iZGX11..TH201802-202006

47318EGASKET(FOR REAR FLEXIBLE HOSE)

main47389-50021×2iZGX11..TH201802-202006

47318FHOSE, FLEXIBLE(FOR REAR RH)

main90947-02H69iZYX10201904

(J)

main90947-T2166iZYX10201904

(L)

47319FHOSE, FLEXIBLE(FOR REAR LH)

main90947-02H70iZGX11..IDN,MA201904-202105

(J)

main90947-T2167iZGX11..IDN,MA201904-202105

(L)

47321TUBE, REAR BRAKE, NO.1

main47321-F4020iZYX10201802

47322TUBE, REAR BRAKE, NO.2

main47322-F4020iZYX10201802

47351BBRACKET, FLEXIBLE HOSE, NO.1

main47351-06100iZGX11..IDN,MA201802-202105

47352BBRACKET, FLEXIBLE HOSE, NO.2

main47352-06100iZGX11..TH201802-202006

47353BBRACKET, FLEXIBLE HOSE, NO.3

main47351-06080iZGX11,ZYX10..TH201802

47354BBRACKET, FLEXIBLE HOSE, NO.4

main47352-06080iZGX11..TH201802-202006

47371ACLAMP, BRAKE TUBE, NO.1

main90949-01D91×3iZYX10201802

main90949-01E43iZGX11..TH201802-202006

47371CCLAMP, BRAKE TUBE, NO.7

main90464-00904iZGX11..IDN,MA201802-202105

47371DCLAMP, BRAKE TUBE, NO.8

main77286-47050×2iZGX11..TH201802-202006

47371ECLAMP, BRAKE TUBE, NO.9

main77285-47110iZGX11..TH201802-202006

47371FCLAMP, BRAKE TUBE, NO.10

main90949-01E10×4iZGX11..TH201802-202006

47372CLAMP, BRAKE TUBE, NO.2

main90949-01E30×2iZGX11..TH201802-202006

main90949-01E49×2iZYX10201802

47373BCLAMP, BRAKE TUBE, NO.3

main90949-01E15iZYX10201802

main90949-01E44×2iZGX11..TH201802-202006

47375CLAMP, BRAKE TUBE, NO.5

main90949-01E34iZGX11..TH201802-202006

7701FUEL TANK & TUBE

→ Go to FIG 77-01

9011908868

main90119-08868

90119T0237

main90119-T0237

90119T0260

main90119-T0260

90119T0319

main90119-T0319

9046808035

main90468-08035

90468T0004

main90468-T0004

9048025037

main90480-25037

9167180616

main91671-80616

9167180816

main91671-80816

9167380616

main91673-80616

9167380820

main91673-80820

42 parts on this diagram · 4 diagrams in section
