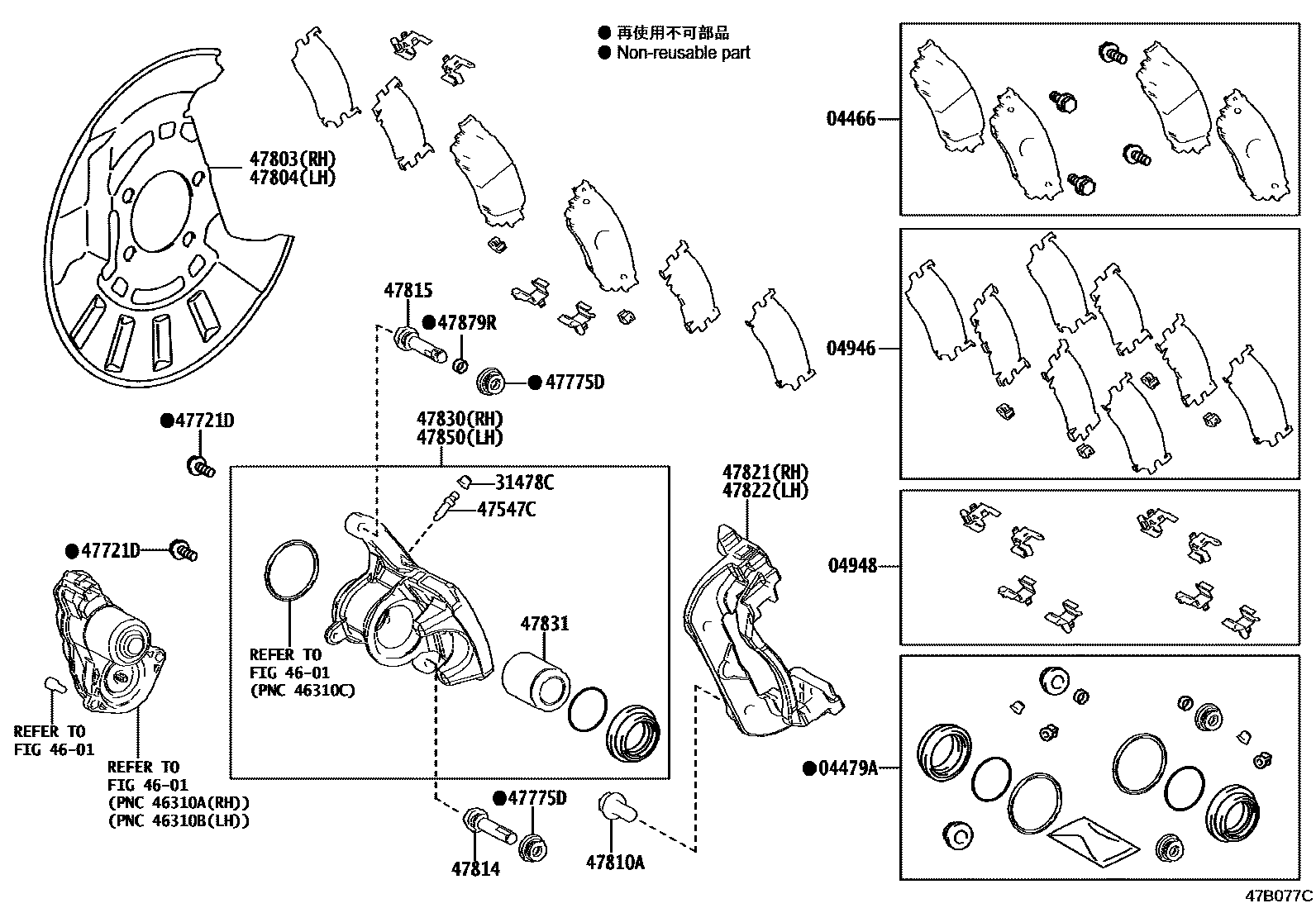

REAR DISC BRAKE CALIPER & DUST COVER

04466PAD KIT, DISC BRAKE, REAR

main04466-10011iZGX11..IDN,MA201802-202105

MARK AK NS554

04479ACYLINDER KIT, DISC BRAKE, REAR

main04479-10091iZGX11,ZYX10201802-202106

main04479-42100iZYX10202106

04946SHIM KIT, ANTI SQUEAL(FOR REAR DISC BRAKE)

main04946-48130iZGX11..TH201802-202105

04948FITTING KIT, DISC BRAKE, REAR

main04948-58010iZGX11..TH201802-202105

31478CCAP, BLEEDER PLUG(FOR REAR DISC BRAKE)

main31478-30010iZGX11..TH201802-202105

4601

47547CPLUG, BLEEDER(FOR REAR DISC BRAKE)

main47547-20010iZGX11..TH201802-202105

47721DBOLT(FOR REAR DISC BRAKE CYLINDER MOUTING)

main90015-AA603iZGX11..TH201802-202105

*8-1.00PX23-12.5

sub90016-AA614

47775DBOOT, BUSH DUST(FOR REAR DISC BRAKE)

main47875-33270iZGX11..TH201802-202006

47803COVER SUB-ASSY, DISC BRAKE DUST, REAR RH

main47803-06020iZGX11..TH201802-202105

47804COVER SUB-ASSY, DISC BRAKE DUST, REAR LH

main47804-06020iZGX11..TH201802-202105

47810ABOLT, HEXAGON(FOR REAR CALIPER)

main90105-12174iZGX11..IDN,MA201802-202105

(J)

main90105-T0379iZGX11..IDN,MA201802-202105

(L)

47814PIN, CYLINDER SLIDE, NO.1(FOR REAR DISC BRAKE)

main47814-78010iZGX11..TH201802-202105

47815PIN, REAR CYLINDER SLIDE, NO.2(FOR REAR DISC BRAKE)

main47815-78010iZGX11..TH201802-202105

47821MOUNTING, REAR DISC BRAKE CYLINDER, RH

main47821-10030iZGX11..TH201802-202105

47822MOUNTING, REAR DISC BRAKE CYLINDER, LH

main47822-10030iZGX11..TH201802-202105

47830CYLINDER ASSY, DISC BRAKE, REAR RH

main47830-10030iZGX11..TH201802-202106

main47830-42090iZYX10202106

47831PISTON, REAR DISC BRAKE

main47831-10030iZGX11..TH201802-202106

main47831-48130iZYX10202106

47850CYLINDER ASSY, DISC BRAKE, REAR LH

main47850-10030iZGX11..TH201802-202106

main47850-42080iZYX10202106

47879RBUSH, CYLINDER SLIDE, NO.2(FOR REAR DISC BRAKE)

main47769-50010iZGX11..TH201802-202105

20 parts on this diagram · 1 diagram in section
