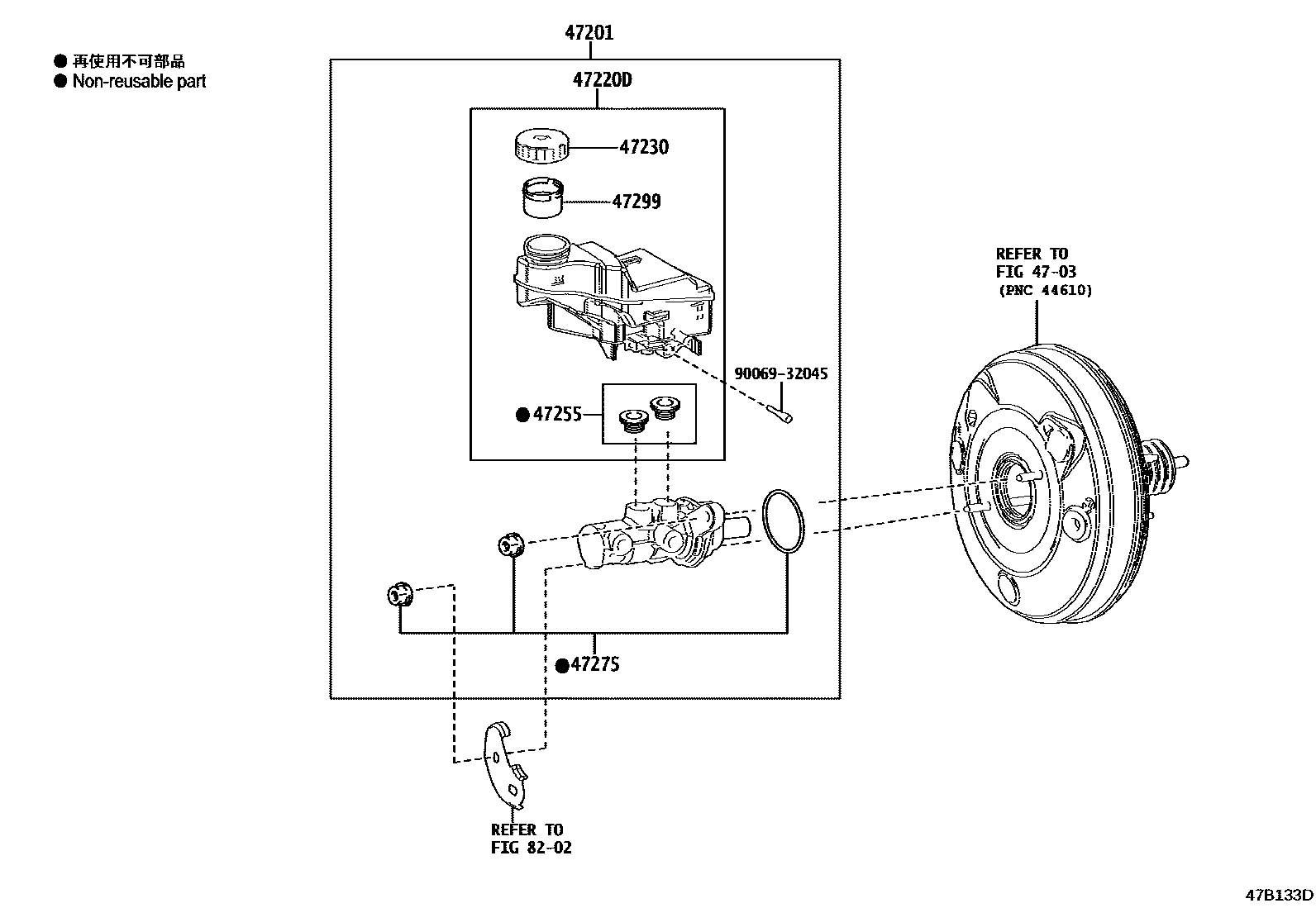

BRAKE MASTER CYLINDER

0001 1 0002 1

4703BRAKE BOOSTER & VACUUM TUBE

→ Go to FIG 47-03

47201CYLINDER SUB-ASSY, BRAKE MASTER

main47201-09860iZGX11..TH201802-202006

47220DRESERVOIR ASSY, BRAKE MASTER CYLINDER

main47220-09240iZGX11..IDN,MA201802-202105

47230CAP ASSY, BRAKE MASTER CYLINDER RESERVOIR FILLER

main47230-0W060iZGX11201802-202105

main47230-33330iZYX10202002-202006

main47230-47090iZYX10201901-202002

47255GROMMET, MASTER CYLINDER RESERVOIR

main47255-09040iZGX11..TH201802-202006

47275GASKET, BRAKE MASTER CYLINDER

main47275-09010iZGX11..TH201802-202006

47299STRAINER, BRAKE MASTER CYLINDER RESERVOIR

main47299-02160iZGX11..TH201802-202006

8202WIRING & CLAMP

→ Go to FIG 82-02

9006932045

main90069-32045

9 parts on this diagram · 2 diagrams in section
