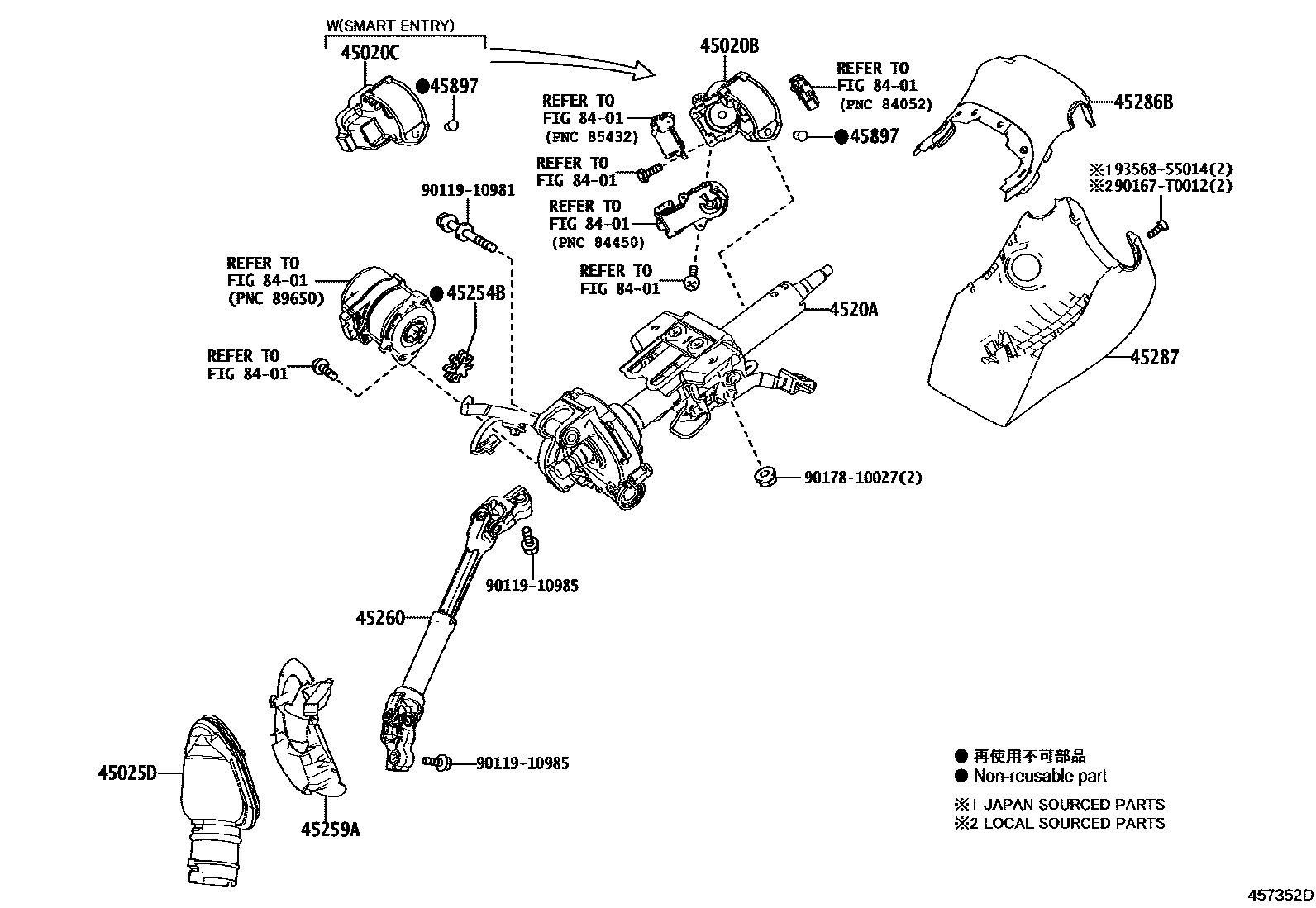

STEERING COLUMN & SHAFT

45020BACTUATOR OR UPPER BRACKET ASSY, STEERING LOCK

main45280-0K120iZGX11..N201802-202006

45020CACTUATOR ASSY, STEERING LOCK(W/ECU)

main45020-0K190iZGX11..IDN,MA201802-202105

45025DCOVER SUB-ASSY, STEERING COLUMN HOLE, NO.1

main45025-F4030iZGX11..TH201802-202006

4520ACOLUMN SUB-ASSY, ELECTRIC POWER STEERING

main4520A-10010iZGX11..E..TH201802-202006

main4520A-10020iZGX11..N201802-202006

45254BDAMPER, ELECTRIC POWER STEERING MOTOR SHAFT

main45254-28040iZYX10201802

45259ASHEET, COLUMN HOLE COVER SILENCER

main45259-0A050iZGX11202010-202105

main45259-F4030iZGX11,ZYX10201802-202009

45260SHAFT ASSY, STEERING INTERMEDIATE, NO.2

main45260-F4030iZGX11..TH201802-202006

45286BCOVER, STEERING COLUMN, UPR

main45286-F4030-C0iZGX11..TH201802-202006

BLACK,TRIM2#

45287COVER, STEERING COLUMN, LWR

main45024-F4020-C0iZGX11..E..TH201802-202006

BLACK,TRIM2#

main45024-F4030-C0iZGX11..N201802-202006

BLACK,TRIM2#

45897BOLT, STEERING LOCK SET

main45897-12020iZYX10201802

8401SWITCH & RELAY & COMPUTER

→ Go to FIG 84-01

9011910981

main90119-10981

9011910985

main90119-10985

90167T0012

main90167-T0012

9017810027

main90178-10027

9356855014

main93568-55014

16 parts on this diagram · 1 diagram in section
