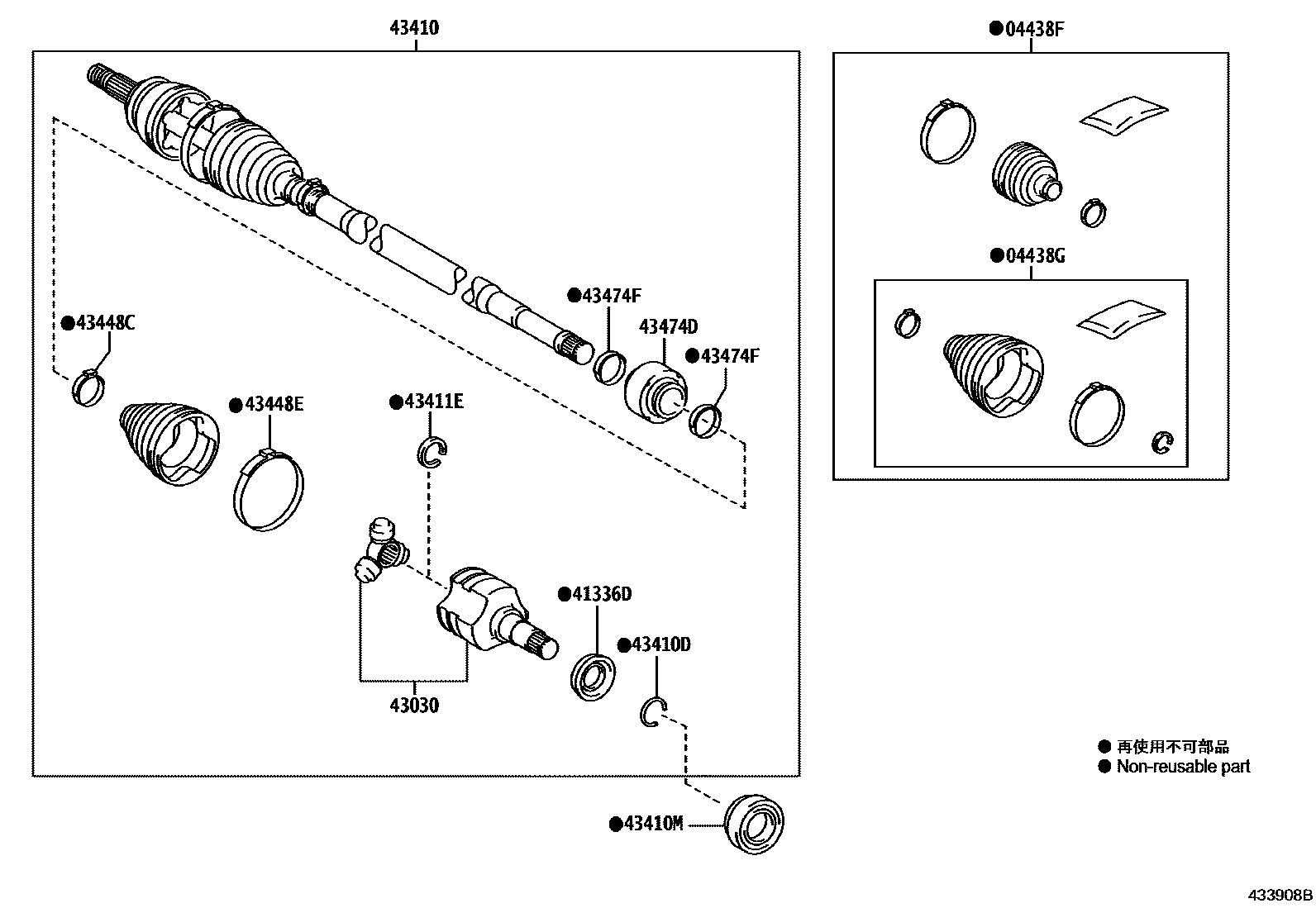

FRONT DRIVE SHAFT

0001 1RH 0002 1LH

04438FBOOT KIT, FRONT DRIVE SHAFT, IN & OUTBOARD, RH

main04427-F4010iZGX11..TH201802-202006

04438GBOOT KIT, FRONT DRIVE SHAFT INBOARD JOINT, RH

main04437-F4040iZGX11..IDN,MA201802-202105

41336DCOVER, FRONT DRIVE SHAFT DUST, RH

main41336-06190iZYX10201802

main41336-F4080iZGX11..IDN,MA201802-202105

43030JOINT ASSY, FRONT DRIVE INBOARD, RH

main43030-F4030iZYX10201802

main43040-F4030iZGX11..TH201802-202006

43410SHAFT ASSY, FRONT DRIVE, RH

main43410-F4100iZYX10201802

main43410-F4110iZGX11..IDN,MA201802-202105

43410DRING, SHAFT SNAP (FOR FRONT DRIVE SHAFT)

main43425-06360iZYX10201802

main43425-F4060iZGX11..TH201802-202006

43410MOIL SEAL, FRONT DRIVE SHAFT, RH

main90311-35076iZGX11..TH201802-202006

main90311-40038iZYX10201802

43411ERING, SHAFT SNAP (FOR FRONT DRIVE INNER SHAFT INNER RH)

main43425-F4110iZGX11..IDN,MA201802-202105

43448CCLAMP (FOR FRONT AXLE INBOARD JOINT BOOT RH)

main42345-F4110iZGX11..IDN,MA201802-202105

43448ECLAMP, NO.2 (FOR FRONT AXLE INBOARD JOINT BOOT RH)

main42345-F4120iZGX11..TH201802-202006

43474DDAMPER, FRONT DRIVE SHAFT, RH

main43474-F4050iZYX10201802

main43474-F4100iZGX11..TH201802-202006

43474FCLAMP (FOR FRONT DRIVE SHAFT DAMPER RH)

main42345-F4130×2iZGX11..TH201802-202006

12 parts on this diagram · 2 diagrams in section
