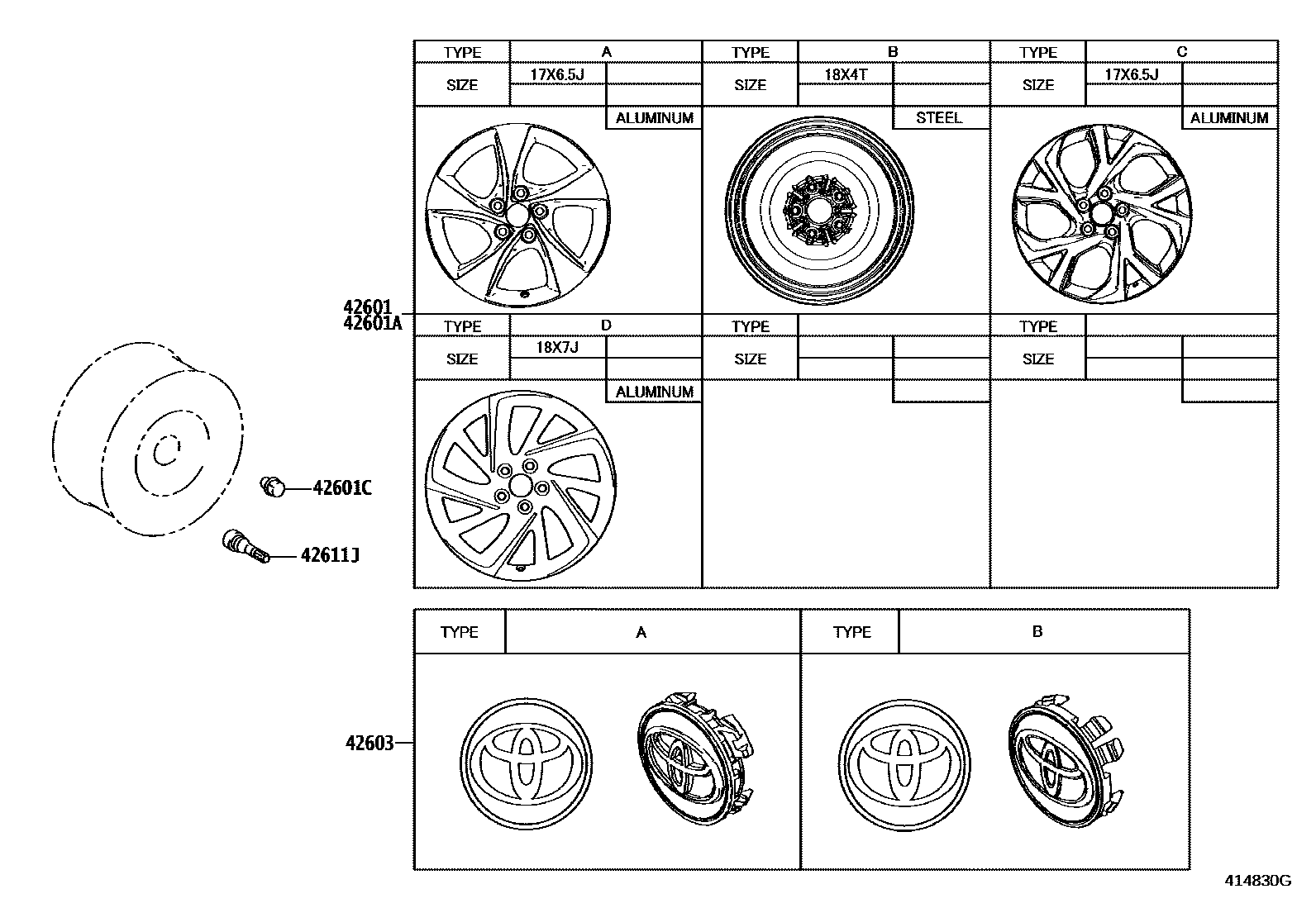

DISC WHEEL & WHEEL CAP

42601WHEEL, DISC

main42611-F4190×4supersedes 42611-F4050i202106

17X6.5J, #,TYPE C:REFER ILLUST.

main42611-F4310×4i202106

18X7J, #,TYPE D:REFER ILLUST.

42601AWHEEL, DISC (FOR SPARE)

main42611-30F31i201802-201908

18X4T,SPARE TIRE-TEMPORARY,TYPE B:REFER ILLUST.

main42611-30F32i201909-202105

18X4T,TYPE B:REFER ILLUST.

main42611-F4050i201802-201901

17X6.5J, #,EXCEPT THAI OR BRUNEI SPEC&SPARE TIRE-GROUND TIRE,TYPE A:REFER ILLUST.

main42611-F4190i201901-202006

17X6.5J, #,EXCEPT THAI OR BRUNEI SPEC&TIRE & DISC WHEEL-215/60R/17, ALUMINUM GENERAL COUNTRIES&SPARE TIRE-GROUND TIRE,TYPE C:REFER ILLUST.

18X4T,INDONESIA SPEC&SPARE TIRE-TEMPORARY,TYPE B:REFER ILLUST.

42601CNUT, HUB (FOR AXLE)

main90942-01033×20i201802-202006

42603ORNAMENT SUB-ASSY, WHEEL HUB

main42603-0K280×4i201802-201908

*ALU,TYPE A:REFER ILLUST.

main42603-0K290×4i201909

*ALU,TYPE B:REFER ILLUST.

42611JVALVE (FOR TUBELESS TIRE SPARE)

main90942-05009i201802-202105

main90080-94031i201906-202106

BRUNEI SPEC&SPARE TIRE-TEMPORARY

5 parts on this diagram · 2 diagrams in section
