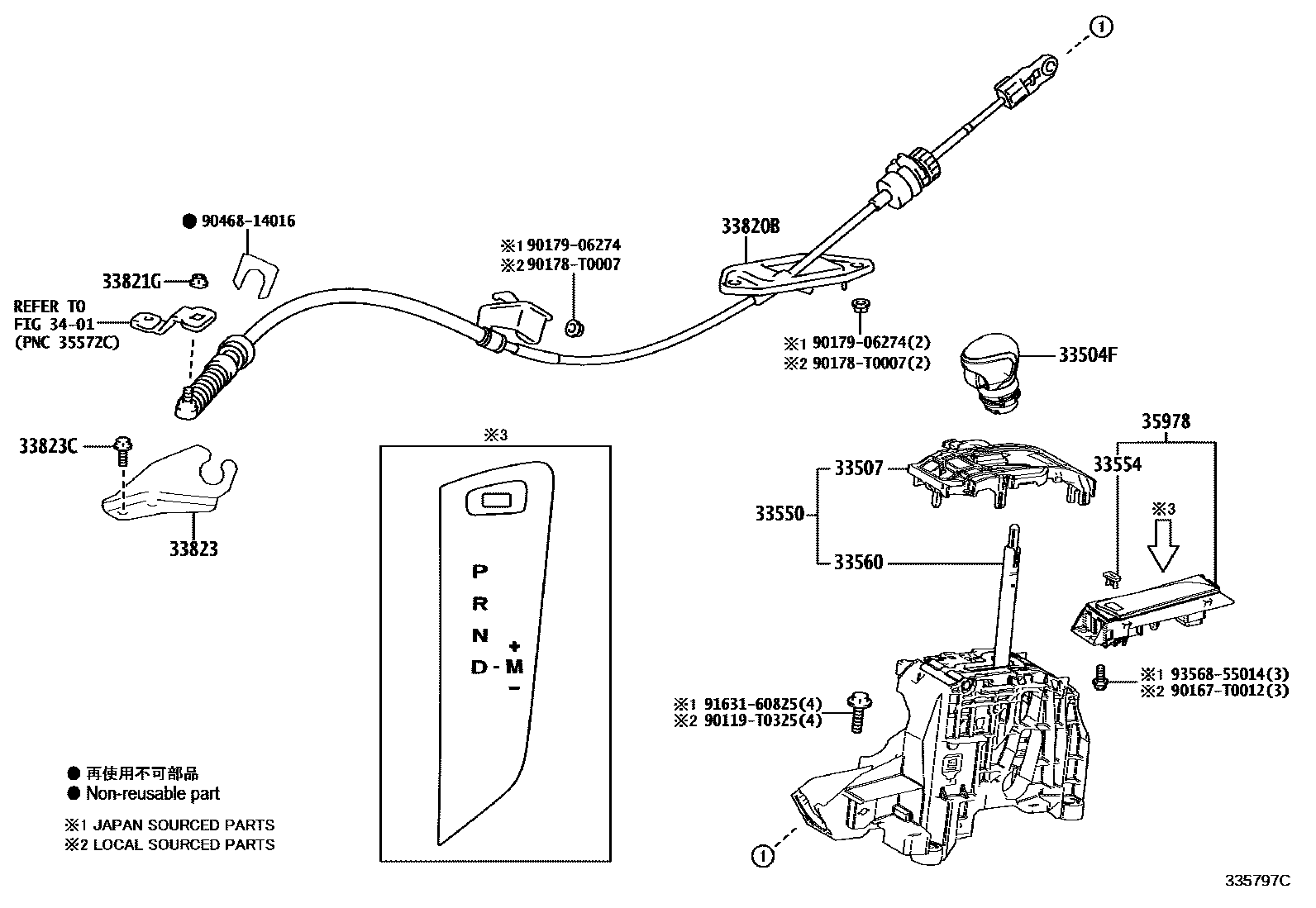

SHIFT LEVER & RETAINER

0001 1 0002 1

33504FKNOB SUB-ASSY, SHIFT LEVER

main33504-10070-C2iZGX11,ZYX10201802-201804

BLACK,TRIM2#

main33504-10071-C2iZGX11..TH201805-202006

BLACK,TRIM2#

33507BRACKET SUB-ASSY, SHIFT LEVER HOUSING

main33507-F4030iZGX11..TH201802-202006

33550FLOOR SHIFT ASSY, TRANSMISSION

main33550-F4070iZGX11..N201802-202006

main33550-F4080iZGX11..E..TH201802-202006

main33550-F4090iZYX10201802

33554CAP, SHIFT LEVER

main33554-10060iZGX11..IDN,MA201802-202105

33560UNIT ASSY, SHIFT LOCK CONTROL

main33560-F4070iZGX11..N201802-202006

main33560-F4080iZGX11..E..TH201802-202006

main33560-F4090iZYX10201802

33820BCABLE ASSY, TRANSMISSION CONTROL

main33820-F4050iZGX11..TH201802-202006

main33820-F4060iZYX10201802

33821GNUT (FOR TRANSMISSION CONTROL CABLE)

main90178-T0019iZGX11..TH201802-202006

(L)

main94151-80800iZGX11..TH201802-202006

(J)

33823BRACKET, TRANSMISSION CONTROL CABLE, NO.1

main33823-10030iZYX10201802-201906

main33823-F4020iZGX11..TH201802-202006

main33823-F4070iZYX10201906

(L)

33823CBOLT (FOR TRANSMISSION CONTROL CABLE BRACKET)

main90119-08079×2iZGX11..TH201802-202006

(J)

main90119-T0102×2iZGX11..IDN,MA201802-202105

(L)

3401TRANSAXLE ASSY(CVT)

→ Go to FIG 34-01

35978INDICATOR, SHIFT POSITION

main35978-10030iZGX11..TH201802-202006

main35978-10040iZYX10201802

90119T0325

main90119-T0325

90167T0012

main90167-T0012

90178T0007

main90178-T0007

9017906274

main90179-06274

9046814016

main90468-14016

9163160825

main91631-60825

9356855014

main93568-55014

18 parts on this diagram · 2 diagrams in section
