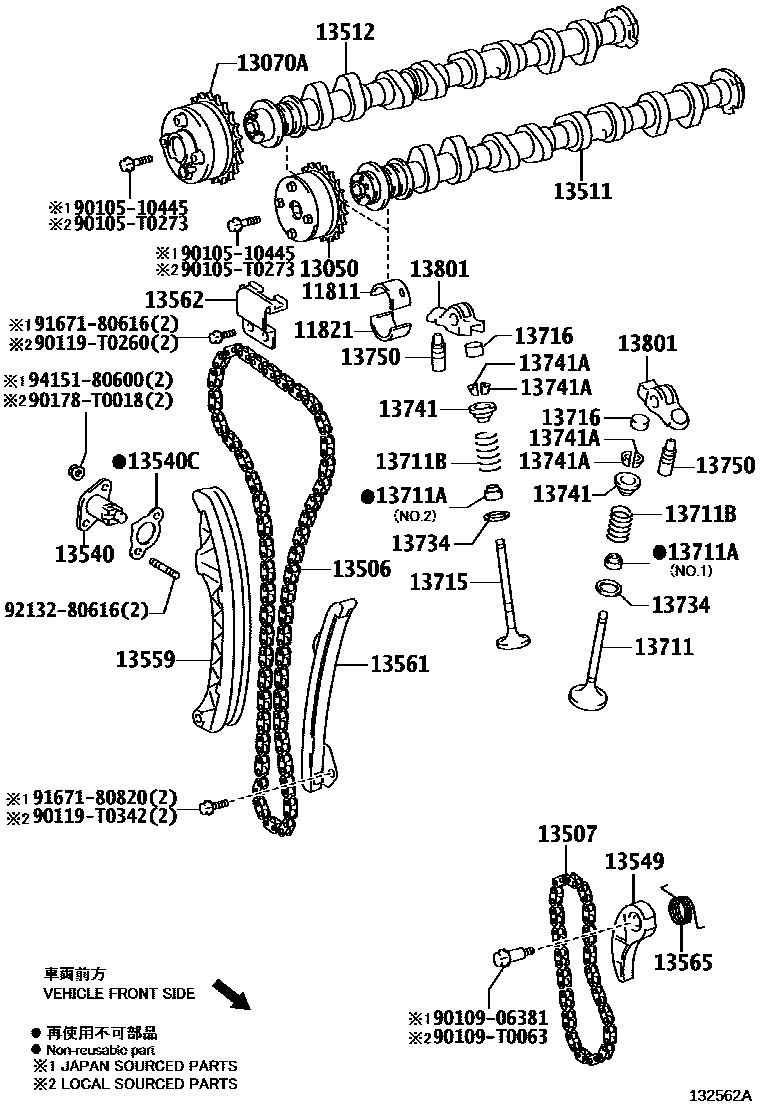

CAMSHAFT & VALVE
11811BEARING, CAMSHAFT, NO.1
11821BEARING, CAMSHAFT, NO.2
13050GEAR ASSY, CAMSHAFT TIMING
13070AGEAR ASSY, CAMSHAFT TIMING EXHAUST
(L)
(J)
13506CHAIN SUB-ASSY
(L)
(J)
13507CHAIN SUB-ASSY, NO.2
(L)
(J)
13511CAMSHAFT
(L)
(L)
(J)
(J)
13512CAMSHAFT, NO.2
(L)
(L)
(J)
(J)
13540TENSIONER ASSY, CHAIN, NO.1
(L)
(J)
13540CGASKET(FOR CHAIN TENSIONER)
(L)
(J)
13549PLATE, CHAIN TENSIONER
MADE IN THAILAND
MADE IN JAPAN
13559SLIPPER, CHAIN TENSIONER
(L)
(J)
13561DAMPER, CHAIN VIBRATION, NO.1
(L)
(J)
13562DAMPER, CHAIN VIBRATION, NO.2
(L)
(J)
13565SPRING, CHAIN DAMPER
MADE IN THAILAND
MADE IN JAPAN
13711VALVE, INTAKE
(L)
(L)
(J)
13711ASEAL OR RING, O(FOR VALVE STEM OIL)
(L),NO.2
(L),NO.1
(J),NO.1
(J),NO.2
13711BSPRING, COMPRESSION(FOR INNER)
(J)
(J)
(L)
(L)
13715VALVE, EXHAUST
(L)
(J)
(J)
13716CAP, VALVE STEM
(L)
(J)
13734SEAT, VALVE SPRING
(L)
(J)
13741RETAINER, VALVE SPRING
(L)
(J)
13741ALOCK, VALVE SPRING RETAINER
13750ADJUSTER ASSY, VALVE LASH
(L)
(J)
13801ARM SUB-ASSY, VALVE ROCKER, NO.1
(L)
(J)
9010510445
main90105-10445
90105T0273
main90105-T0273
9010906381
main90109-06381
90109T0063
main90109-T0063
90119T0260
main90119-T0260
90119T0342
main90119-T0342
90178T0018
main90178-T0018
9167180616
main91671-80616
9167180820
main91671-80820
9213280616
main92132-80616
9415180600
main94151-80600
36 parts on this diagram · 2 diagrams in section
