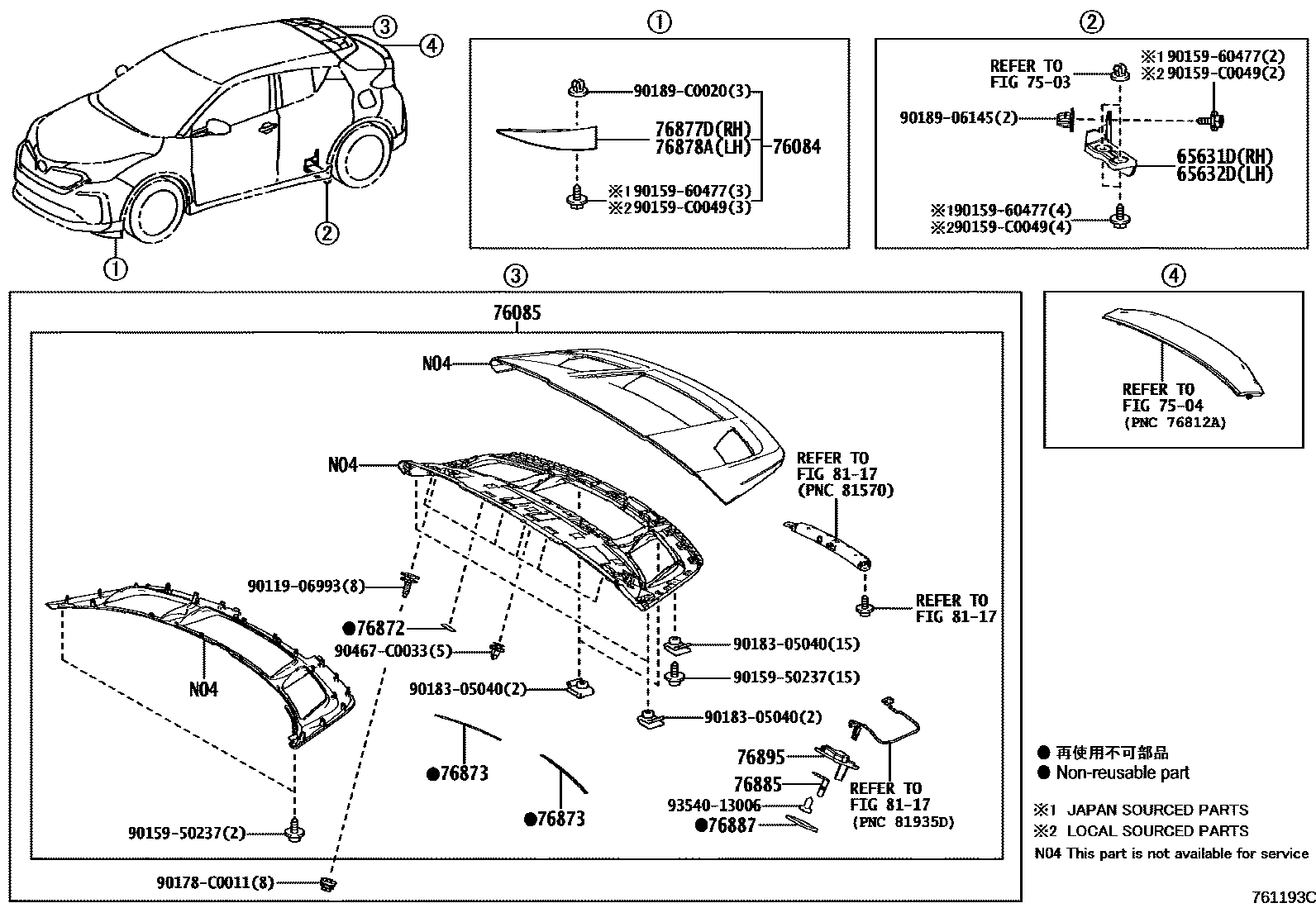

MUDGUARD & SPOILER
65631DPLATE, REAR WHEEL HOUSE, FRONT RH
65632DPLATE, REAR WHEEL HOUSE, FRONT LH
7503SIDE MOULDING
7504REAR MOULDING
76084SPOILER SET, FRONT
76085SPOILER SUB-ASSY, REAR
WHITE,2NJ ,2QH ,2QK
WHITE PEARL CS.,070
PLATINUM WHITE PEARL MC.,089
ATTITUDE BLACK MC.,218 ,2QJ ,2QL ,2QM
BLACK MC.,209 ,2NU ,2PU
RED M.M.,3R3
STEEL BLONDE ME.,4X1
YELLOW,5A3
RADIANT GREEN ME.,6W9
BLUE ME.,8X7
76872PROTECTOR, REAR SPOILER, NO.1
76873PROTECTOR, REAR SPOILER, NO.2
76877DPROTECTOR, FRONT SPOILER SIDE, RH
76878APROTECTOR, FRONT SPOILER SIDE, LH
76885RETAINER, REAR SPOILER, NO.5
76887SEAL, REAR SPOILER
76895PROTECTOR, REAR SPOILER, NO.5
8117CENTER STOP LAMP
9011906993
main90119-06993
9015950237
main90159-50237
9015960477
main90159-60477
90159C0049
main90159-C0049
90178C0011
main90178-C0011
9018305040
main90183-05040
9018906145
main90189-06145
90189C0020
main90189-C0020
90467C0033
main90467-C0033
9354013006
main93540-13006
24 parts on this diagram · 1 diagram in section
