REAR MOULDING
7501EMBLEM & NAME PLATE (EXTERIOR & INTERIOR)
75392BRETEINER, OUTSIDE MOULDING, NO.1
76801GARNISH SUB-ASSY, BACK DOOR, OUTSIDE
NO PAINT REQ.,WHITE PEARL CS.,070 ,2QJ
NO PAINT REQ.,PLATINUM WHITE PEARL MC.,089 ,2PU
NO PAINT REQ.,ATTITUDE BLACK MC.,218 ,2QH
NO PAINT REQ.,BLACK MC.,209
NO PAINT REQ.,RED M.M.,2NU ,2QK ,2QL ,3R3
NO PAINT REQ.,STEEL BLONDE ME.,4X1
NO PAINT REQ.,YELLOW,5A3
NO PAINT REQ.,RADIANT GREEN ME.,2NJ ,6W9
NO PAINT REQ.,BLUE ME.,8X7
76812AGARNISH, BACK DOOR, OUTSIDE NO.2
WHITE PEARL CS.,070 ,2QJ
PLATINUM WHITE PEARL MC.,089 ,2PU
ATTITUDE BLACK MC.,218 ,2QH
BLACK MC.,209
RED M.M.,2NU ,2QK ,2QL ,3R3
STEEL BLONDE ME.,4X1
YELLOW,5A3
RADIANT GREEN ME.,2NJ ,6W9
BLUE ME.,8X7
76819SEAL, BACK DOOR OUTSIDE GARNISH
76821PROTECTOR, BACK DOOR GARNISH MOULDING, UPPER
76821BPROTECTOR, BACK DOOR GARNISH SIDE, RH
76822PROTECTOR, BACK DOOR GARNISH MOULDING, LOWER
76822BPROTECTOR, BACK DOOR GARNISH SIDE, LH
76823PROTECTOR, BACK DOOR GARNISH MOULDING, RH
76824PROTECTOR, BACK DOOR GARNISH MOULDING, LH
76827ARETAINER, BACK DOOR GARNISH, NO.2
9010506344
main90105-06344
9017906359
main90179-06359
9018206011
main90182-06011
9043010016
main90430-10016
90467C0033
main90467-C0033

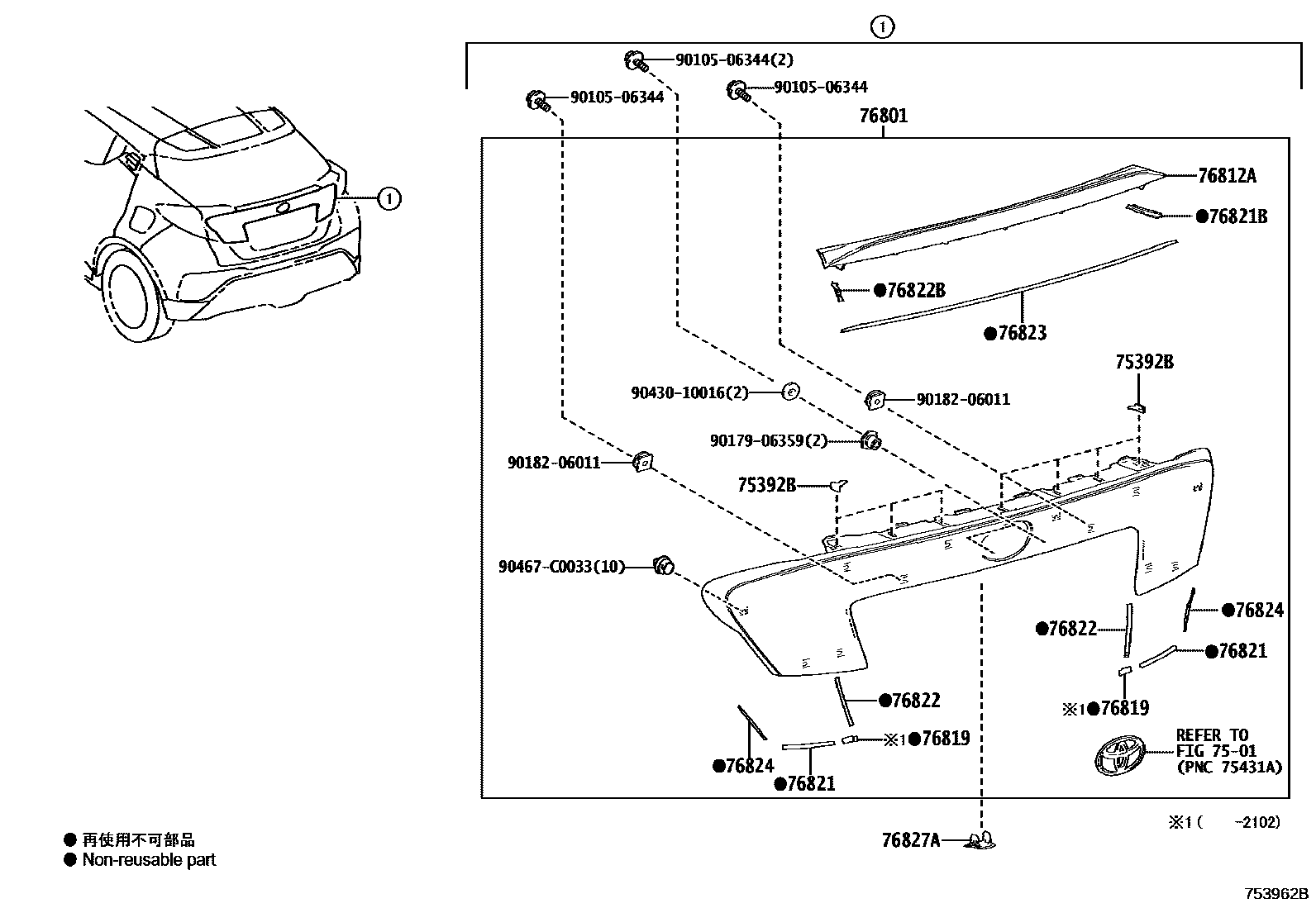

17 parts on this diagram · 1 diagram in section
