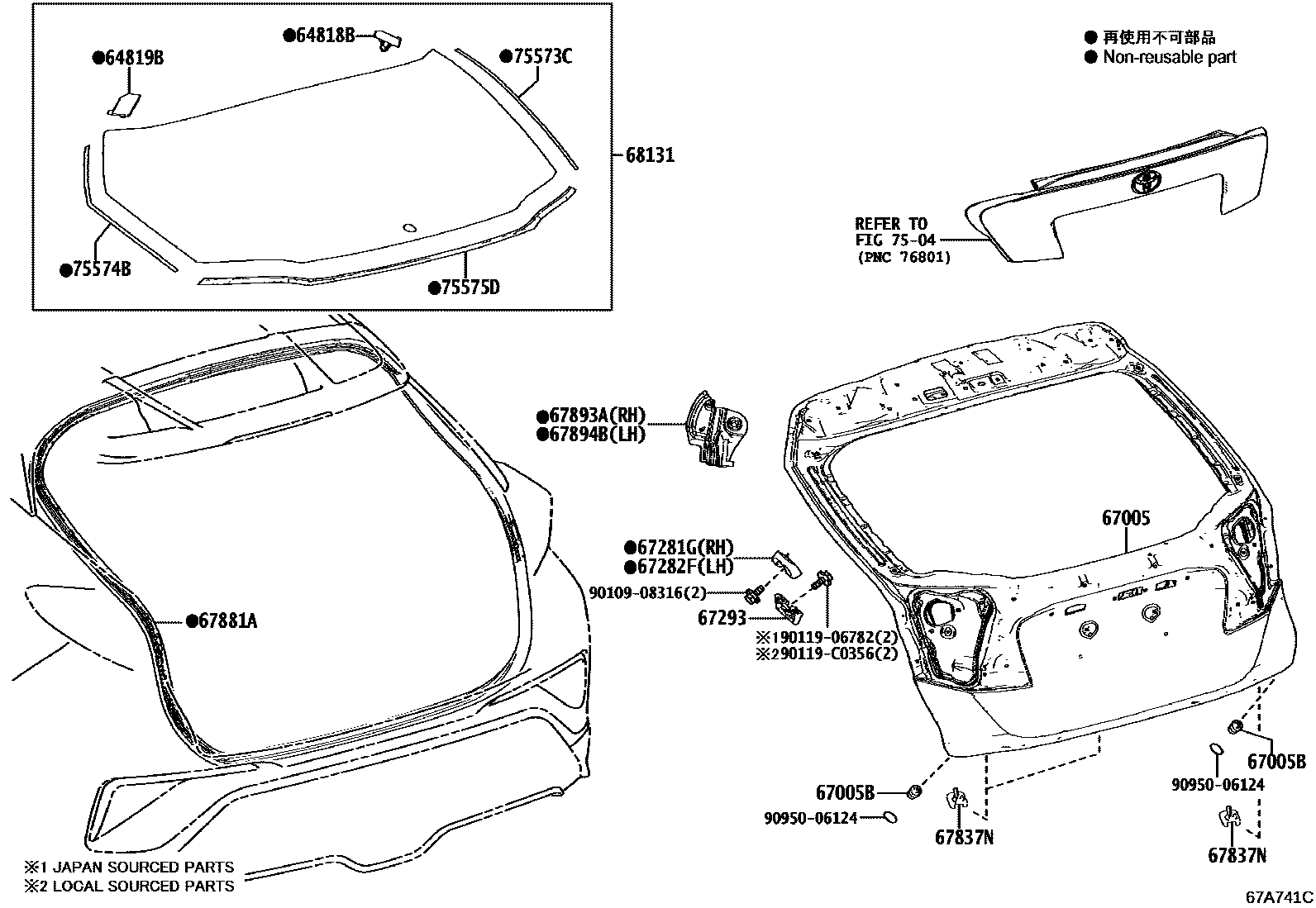

BACK DOOR PANEL & GLASS

0001 1DOOR PANEL 0002 1DOOR TRIM

64818BSPACER, BACK DOOR GLASS, NO.1

main64818-F4040iKPX10202005

64819BSPACER, BACK WINDOW GLASS, NO.2

main64819-F4040iKPX10202005

67005PANEL SUB-ASSY, BACK DOOR

main67005-F4100iKPX10..D202005

main67005-F4110iKPX10..G,N202005

67005BCUSHION(FOR BACK DOOR PANEL)

main90541-09142iKPX10202005

(J)

main90541-C0002iKPX10202005

(L)

67281GSTOPPER, BACK DOOR, LOWER RH

main67281-F4030iKPX10202005

67282FSTOPPER, BACK DOOR, LWR LH

main67281-F4030iKPX10202005

67293CUSHION, BACK DOOR LOWER STOPPER

main67293-F4031iKPX10202005-202104

RH

sub67293-F4032

main67293-F4032iKPX10202105

RH

main67294-F4031iKPX10202005-202104

LH

sub67294-F4032

main67294-F4032iKPX10202105

LH

67837NSEAL, BACK DOOR DUST PROOF

main67837-F4090iKPX10202005

67881AWEATHERSTRIP, BACK DOOR

main67881-F4040iKPX10202005

67893APROTECTOR, BACK DOOR PANEL, NO.1

main67893-F4030iKPX10202005

67894BPROTECTOR, BACK DOOR PANEL, NO.2

main67894-F4030iKPX10202005

68131GLASS, BACK DOOR

main68105-F4171iKPX10202005

7504

75573CMOULDING, BACK WINDOW, OUTSIDE

main75573-F4040iKPX10202005

75574BMOULDING, BACK WINDOW, OUTSIDE LH

main75574-F4040iKPX10202005

75575DMOULDING, BACK WINDOW, LOWER

main75575-F4040iKPX10202005

9010908316

main90109-08316

9011906782

main90119-06782

90119C0356

main90119-C0356

9095006124

main90950-06124

20 parts on this diagram · 2 diagrams in section
