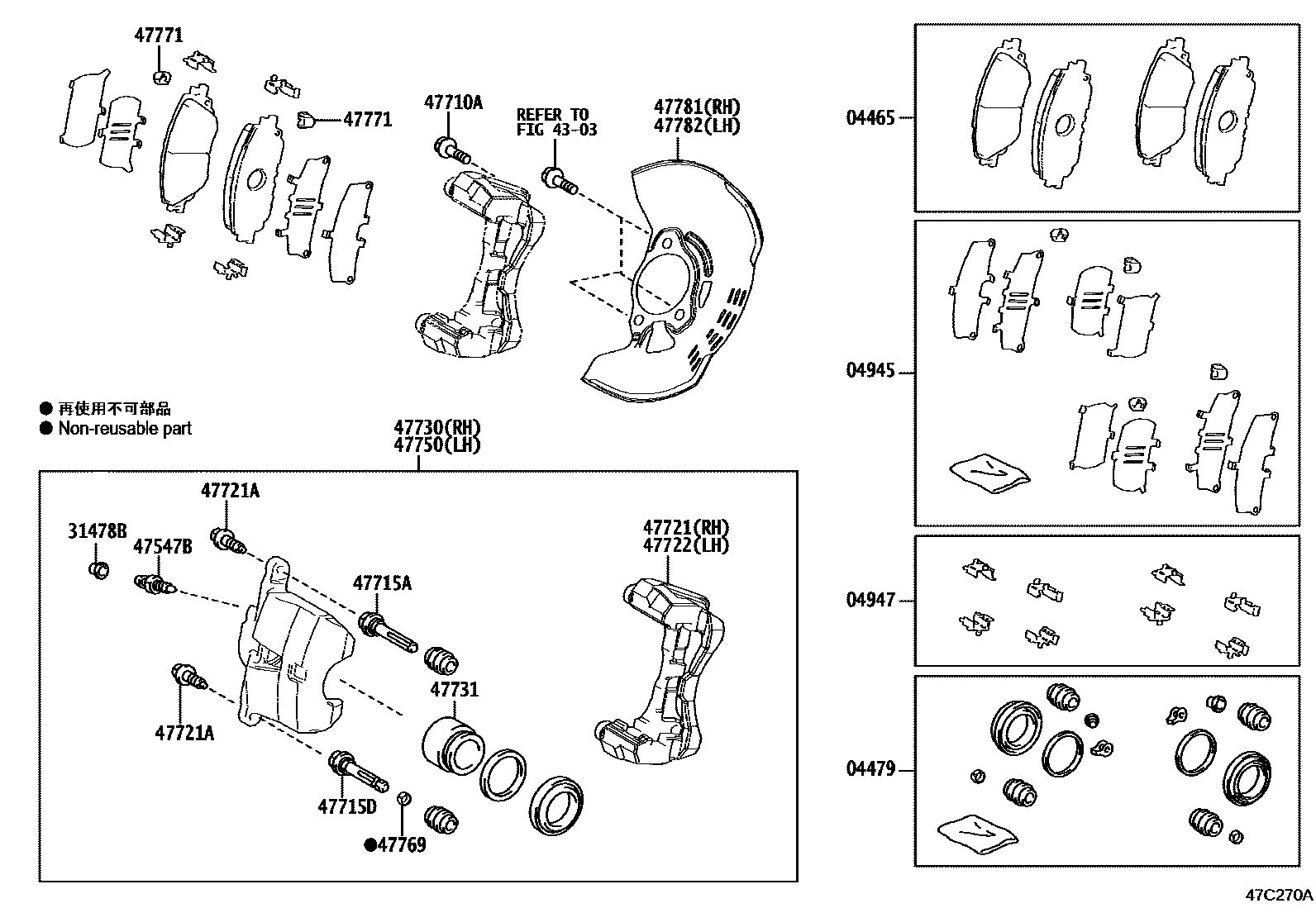

FRONT DISC BRAKE CALIPER & DUST COVER

04465PAD KIT, DISC BRAKE, FRONT

main04465-F4030iKPX10202005

MARK NBK D6994H

04479CYLINDER KIT, DISC BRAKE, FRONT

main04478-06310iKPX10202005

04945SHIM KIT, ANTI SQUEAL, FRONT

main04945-06190iKPX10202005

04947FITTING KIT, DISC BRAKE, FRONT

main04947-06110iKPX10202005

31478BCAP, BLEEDER PLUG(FOR FRONT DISC BRAKE)

main31478-0N010iKPX10202005

4303

47547BPLUG, BLEEDER(FOR FRONT DISC BRAKE)

main47547-20010iKPX10202005

47710ABOLT, HEXAGON(FOR FRONT DISC BRAKE CALIPER)

main90105-12208iKPX10202005

*12-1.25PX29.5-23,(J)

main90105-C0021iKPX10202005

*12-1.25PX29.5-23,(L)

47715APIN, FRONT DISC BRAKE CYLINDER SLIDE

main47714-0R020iKPX10202005

47715DPIN, FRONT DISC BRAKE CYLINDER SLIDE, NO.2

main47715-0D210iKPX10202005

47721MOUNTING, FRONT DISC BRAKE CYLINDER, RH

main47721-F4040iKPX10202005

47721ABOLT(FOR FRONT DISC BRAKE CYLINDER MOUNTING)

main90016-AA608iKPX10202005

*8-1.00PX23-15

47722MOUNTING, FRONT DISC BRAKE CYLINDER, LH

main47722-F4040iKPX10202005

47730CYLINDER ASSY, FRONT DISC BRAKE, RH

main47730-F4040iKPX10202005

47731PISTON, FRONT DISC BRAKE

main47731-02390iKPX10202005

47750CYLINDER ASSY, DISC BRAKE, LH

main47750-F4040iKPX10202005

47769BUSH, CYLINDER SLIDE, NO.1(FOR FRONT DISC BRAKE)

main47769-0P010iKPX10202005

47771PLATE, PAD WEAR INDICATOR, NO.1

main47771-33380iKPX10202005

47781COVER, DISC BRAKE DUST, FRONT RH

main47781-F4040iKPX10202005

47782COVER, DISC BRAKE DUST, FRONT LH

main47782-F4040iKPX10202005

20 parts on this diagram · 1 diagram in section
