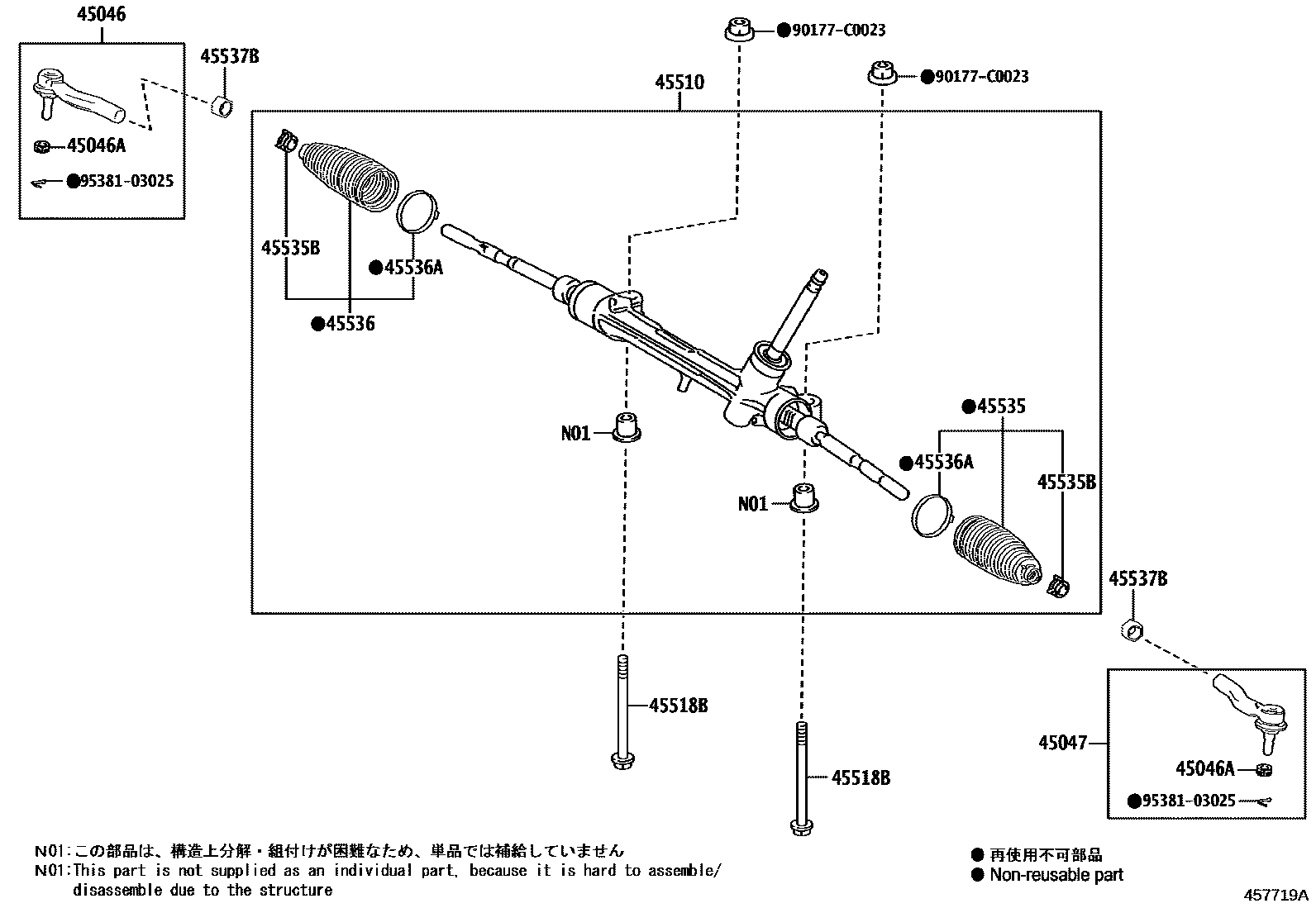

FRONT STEERING GEAR & LINK

45046END SUB-ASSY, TIE ROD, RH

main45046-49265iKPX10202005

45046ANUT, CASTLE(FOR TIE ROD END)

main90171-C0001×2iKPX10202005

45047END SUB-ASSY, TIE ROD, LH

main45047-49205iKPX10202005

45510GEAR ASSY, STEERING

main45510-F4060iKPX10202005

45518BBOLT, STEERING RACK HOUSING

main90119-C0536×2iKPX10202005

45535BOOT, STEERING RACK, NO.1

main45535-59105iKPX10202005

45535BCLIP(FOR STEERING RACK BOOT)

main45537-0D030×2iKPX10202005

45536BOOT, STEERING RACK, NO.2

main45535-59105iKPX10202005

45536ACLAMP(FOR STEERING RACK BOOT NO.2)

main45538-0D070×2iKPX10202005

45537BNUT, RACK END LOCK

main90178-C0015×2iKPX10202005

90177C0023

main90177-C0023

9538103025

main95381-03025

12 parts on this diagram · 1 diagram in section
