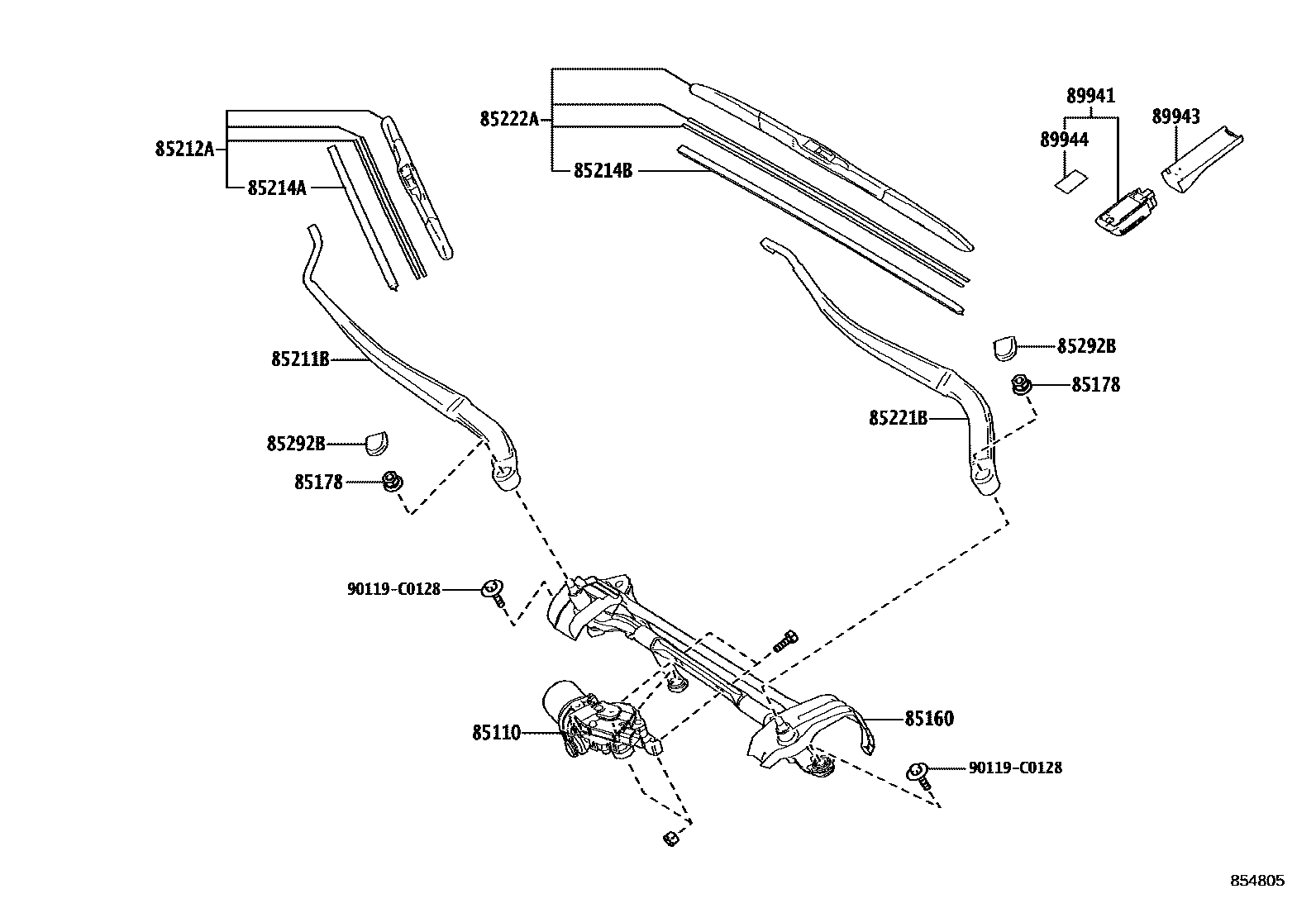

WINDSHIELD WIPER

85110MOTOR ASSY, WINDSHIELD WIPER

main85110-0R080iAXUH8#,MXUA8#202203

85160LINK ASSY, WINDSHIELD WIPER

main85150-0R090iAXUH8#,MXUA8#202203

85178NUT (FOR FRONT WIPER ARM SETTING)

main90182-C0012×2iAXUH8#,MXUA8#202203

85211BARM, FRONT WIPER, RH

main85211-0R080iAXUH8#,MXUA8#202203

85212ABLADE, FR WIPER, RH

main85212-0R100iAXUH8#,MXUA8#202203

85214ARUBBER, WIPER, RH

main85214-0R060iAXUH8#,MXUA8#202203

85214BRUBBER, WIPER, LH

main85214-02340iAXUH8#,MXUA8#202203

85221BARM, FRONT WIPER, LH

main85221-0R080iAXUH8#,MXUA8#202203

85222ABLADE, FR WIPER, LH

main85222-0R090iAXUH8#,MXUA8#202203

85292BCAP, FRONT WIPER ARM HEAD

main85292-0D110×2iAXUH8#,MXUA8#202203

89941SENSOR, RAIN

main89941-08020iAXUH8#,MXUA8#202203

89943COVER, RAIN SENSOR

main89943-42040iAXUH8#,MXUA8#202203

89944TAPE, RAIN SENSOR

main89944-42020iAXUH8#,MXUA8#202203

90119C0128

main90119-C0128

14 parts on this diagram · 1 diagram in section
