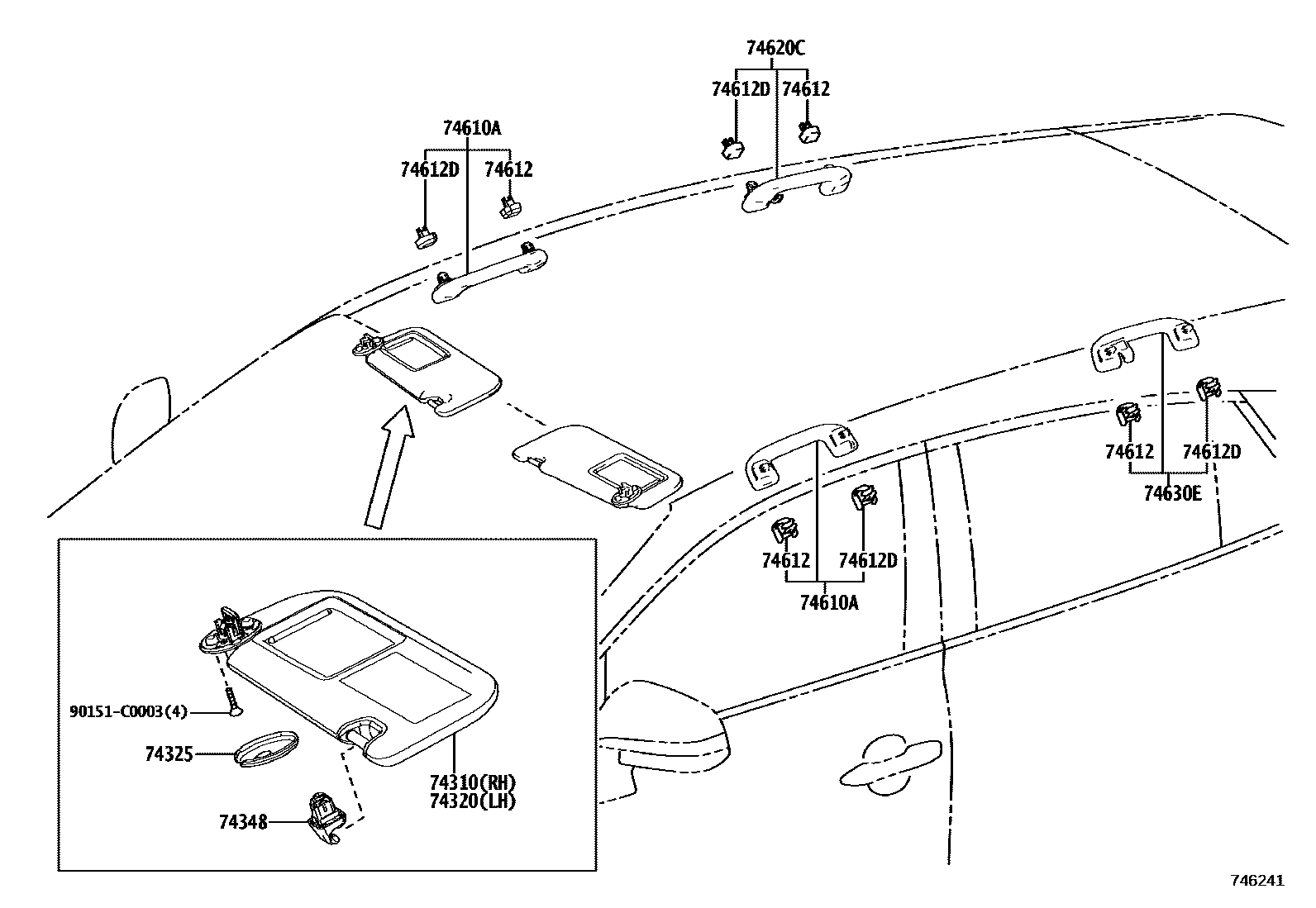

ARMREST & VISOR

74310VISOR ASSY, RH

main74310-0E220-B0iAXUH80,MXUA80..X202203

LT.GRAY,TRIM1#,2#

74320VISOR ASSY, LH

main74320-0E220-B0iAXUH80,MXUA80..X202203

LT.GRAY,TRIM1#,2#

74325COVER, VISOR BRACKET

main74317-0N020-B2×2iAXUH80,MXUA80..X202203

LT.GRAY,TRIM1#,2#

74348HOLDER, VISOR

main74348-47010-B3×2iAXUH80,MXUA80..X202203

LT.GRAY,TRIM1#,2#

74610AGRIP SUB-ASSY, ASSIST

main74610-06240-B1×2iAXUH80,MXUA80..X202203

LT.GRAY,TRIM1#,2#

74612COVER, ASSIST GRIP

main74611-06160-B1×4iAXUH80,MXUA80..X202203

LT.GRAY,TRIM1#,2#

74612DCOVER, ASSIST GRIP

main74612-06150-B1×4iAXUH80,MXUA80..X202203

LT.GRAY,TRIM1#,2#

74620CGRIP ASSY, ASSIST, REAR RH

main74610-06250-B1iAXUH80,MXUA80..X202203

LT.GRAY,TRIM1#,2#

74630EGRIP ASSY, ASSIST, REAR LH

main74610-06260-B1iAXUH80,MXUA80..X202203

LT.GRAY,TRIM1#,2#

90151C0003

main90151-C0003

10 parts on this diagram · 1 diagram in section
