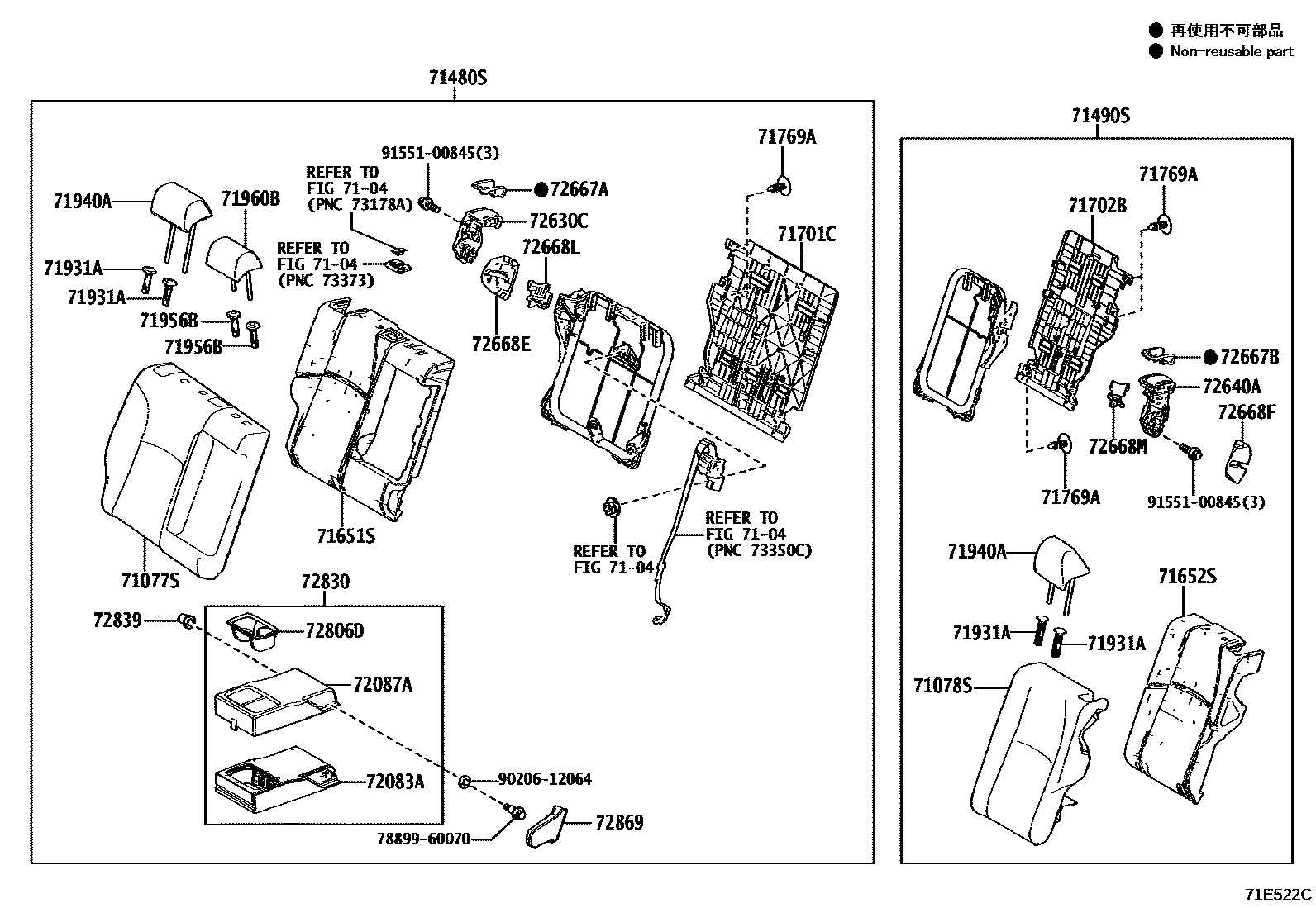

REAR SEAT & SEAT TRACK
7104
71077SCOVER, REAR SEATBACK, RH (FOR SEPARATE TYPE)
MD.GRAY,TRIM1#
BLACK,TRIM2#
OCHRE,TRIM4#
BLACK,TRIM2#
71078SCOVER, REAR SEATBACK, LH(FOR SEPARATE TYPE)
MD.GRAY,TRIM1#
BLACK,TRIM2#
OCHRE,TRIM4#
BLACK,TRIM2#
71480SBACK ASSY, REAR SEAT, RH (FOR SEPARATE TYPE)
MD.GRAY,TRIM1#
BLACK,TRIM2#
OCHRE,TRIM4#
BLACK,TRIM2#
71490SBACK ASSY, REAR SEAT, LH (FOR SEPARATE TYPE)
MD.GRAY,TRIM1#
BLACK,TRIM2#
OCHRE,TRIM4#
BLACK,TRIM2#
71651SPAD, REAR SEATBACK, RH(FOR SEPARATE TYPE)
71652SPAD, REAR SEATBACK, LH(FOR SEPARATE TYPE)
71701CBOARD SUB-ASSY, REAR SEATBACK, RH
71702BBOARD SUB-ASSY, REAR SEATBACK, LH
71769ACLIP, REAR SEATBACK BOARD
71931ASUPPORT, REAR SEAT HEADREST
W(LOCK),BLACK,TRIM1#,2#,4#
W/O(LOCK),BLACK,TRIM2#
71940AHEADREST ASSY, REAR SEAT
MD.GRAY,TRIM1#
BLACK,TRIM2#
OCHER,TRIM4#
71956BSUPPORT, REAR SEAT HEADREST
W(LOCK),BLACK,TRIM1#,2#,4#
W/O(LOCK),BLACK,TRIM2#
71960BHEADREST ASSY, REAR SEAT, CENTER
MD.GRAY,TRIM1#
BLACK,TRIM2#
OCHER,TRIM4#
72083APAD SUB-ASSY, REAR SEAT CENTER ARMREST
72087ACOVER SUB-ASSY, REAR SEAT CENTER ARMREST
MD.GRAY,TRIM1#
BLACK,TRIM2#
OCHER,TRIM4#
BLACK,TRIM2#
72630CLOCK ASSY, REAR SEATBACK, RH
BLACK,TRIM1#,2#,4#
72640ALOCK ASSY, REAR SEATBACK, LH
BLACK,TRIM1#,2#,4#
72667ABEZEL, REAR SEATBACK LOCK, UPPER RH
BLACK,TRIM1#,2#,4#
72667BBEZEL, REAR SEATBACK LOCK, UPPER LH
BLACK,TRIM1#,2#,4#
72668EBEZEL, REAR SEATBACK LOCK, LOWER RH
BLACK,TRIM1#,2#,4#
72668FBEZEL, REAR SEATBACK LOCK, LOWER LH
BLACK,TRIM1#,2#,4#
72668LBEZEL, REAR SEATBACK LOCK, LOWER RH NO.2
BLACK,TRIM1#,2#,4#
72668MBEZEL, REAR SEATBACK LOCK, LOWER LH NO.2
BLACK,TRIM1#,2#,4#
72806DHOLDER SUB-ASSY, REAR SEAT CENTER ARMREST CUP
BLACK,TRIM1#,2#,4#
72830ARMREST ASSY, REAR SEAT, CENTER
MD.GRAY,TRIM1#
BLACK,TRIM2#
OCHRE,TRIM4#
BLACK,TRIM2#
72839SHIM, REAR SEAT ARMREST HINGE
72869COVER, CENTER ARMREST HINGE, LH
BLACK,TRIM1#,2#,4#
7889960070BOLT, FRONT SEAT
main78899-60070
9020612064
main90206-12064
9155100845
main91551-00845
31 parts on this diagram · 3 diagrams in section
