Toyota CROWN KLUGER 52A — ROOF HEADLINING & SILENCER PAD

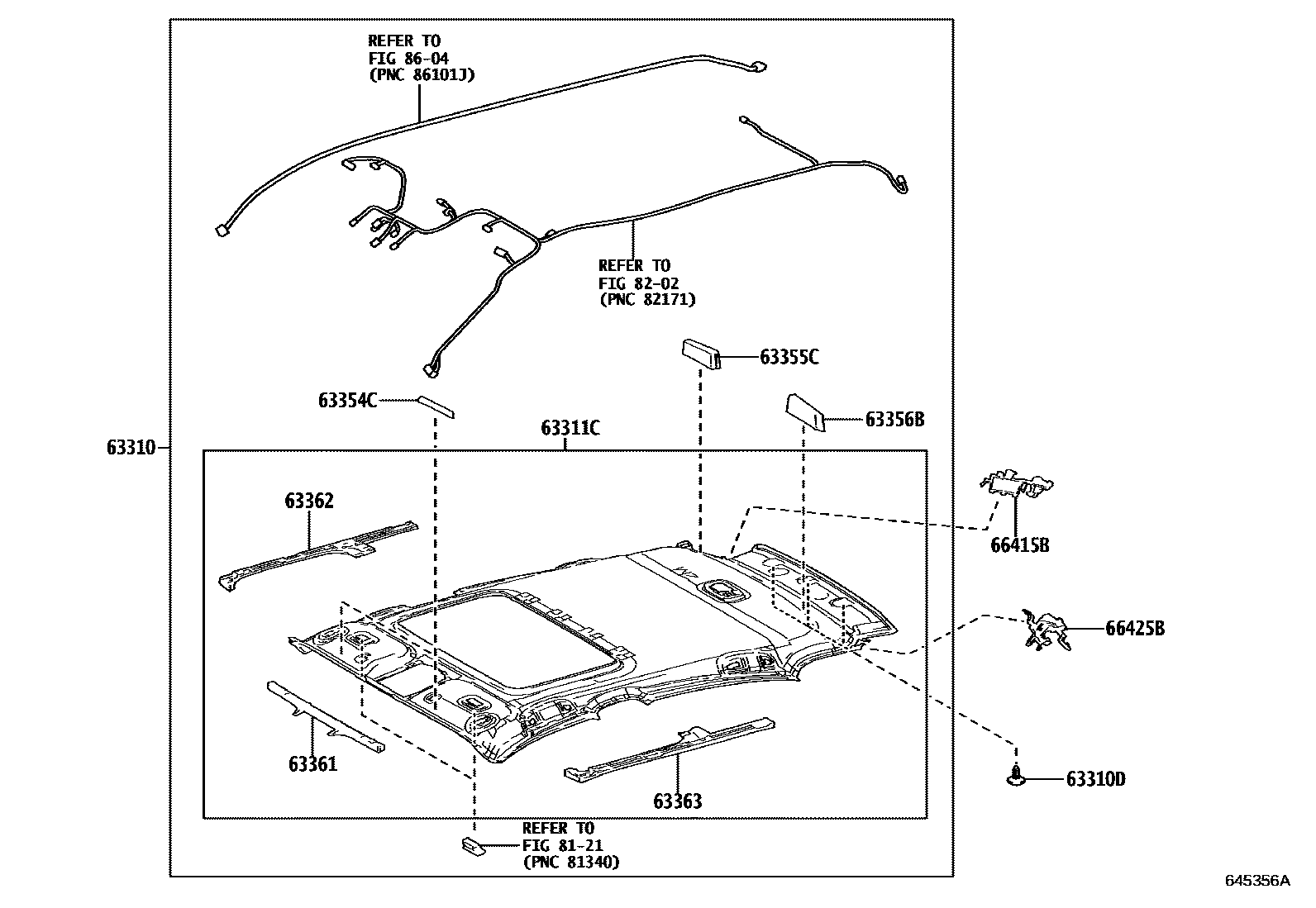

Parts diagram

63310DCLIP, ROOF HEADLINING

63311CHEADLINING, ROOF

63354CPAD, ROOF HEADLINING FRONT SIDE

63355CPAD, ROOF HEADLINING, RH

63356BPAD, ROOF HEADLINING, LH

63361SUPPORT, ROOF HEADLINING, NO.1

63362SUPPORT, ROOF HEADLINING, NO.2

63363SUPPORT, ROOF HEADLINING, NO.3

66415BSPACER, SIDE RAIL, REAR NO.2 RH

66425BSPACER, SIDE RAIL, REAR NO.2 LH

8121INTERIOR LAMP

→ Go to FIG 81-21

8202WIRING & CLAMP

→ Go to FIG 82-02

8604ANTENNA

→ Go to FIG 86-04

14 parts on this diagram · 2 diagrams in section

ROOF HEADLINING & SILENCER PAD for Toyota CROWN KLUGER 52A

This section contains 21 genuine Toyota parts for the ROOF HEADLINING & SILENCER PAD system of the Toyota CROWN KLUGER 52A. Key components include: ROOF PANEL & BACK WINDOW GLASS, HEADLINING ASSY, ROOF, CLIP, ROOF HEADLINING, CLIP, HEADLINING, ROOF.
