Toyota CROWN KLUGER 52A — FLOOR INSULATOR
58151INSULATOR, FRONT FLOOR HEAT, NO.1
58152AINSULATOR, FRONT FLOOR HEAT, NO.1 LOWER
58153EINSULATOR, FRONT FLOOR HEAT, NO.2
58327BINSULATOR, MAIN MUFFLER HEAT
58723ECUSHION, ENGINE SERVICE COVER
58724FCUSHION, ENGINE SERVICE COVER, NO.2
9011906A14
9018206012
90467C0041
90467C0043

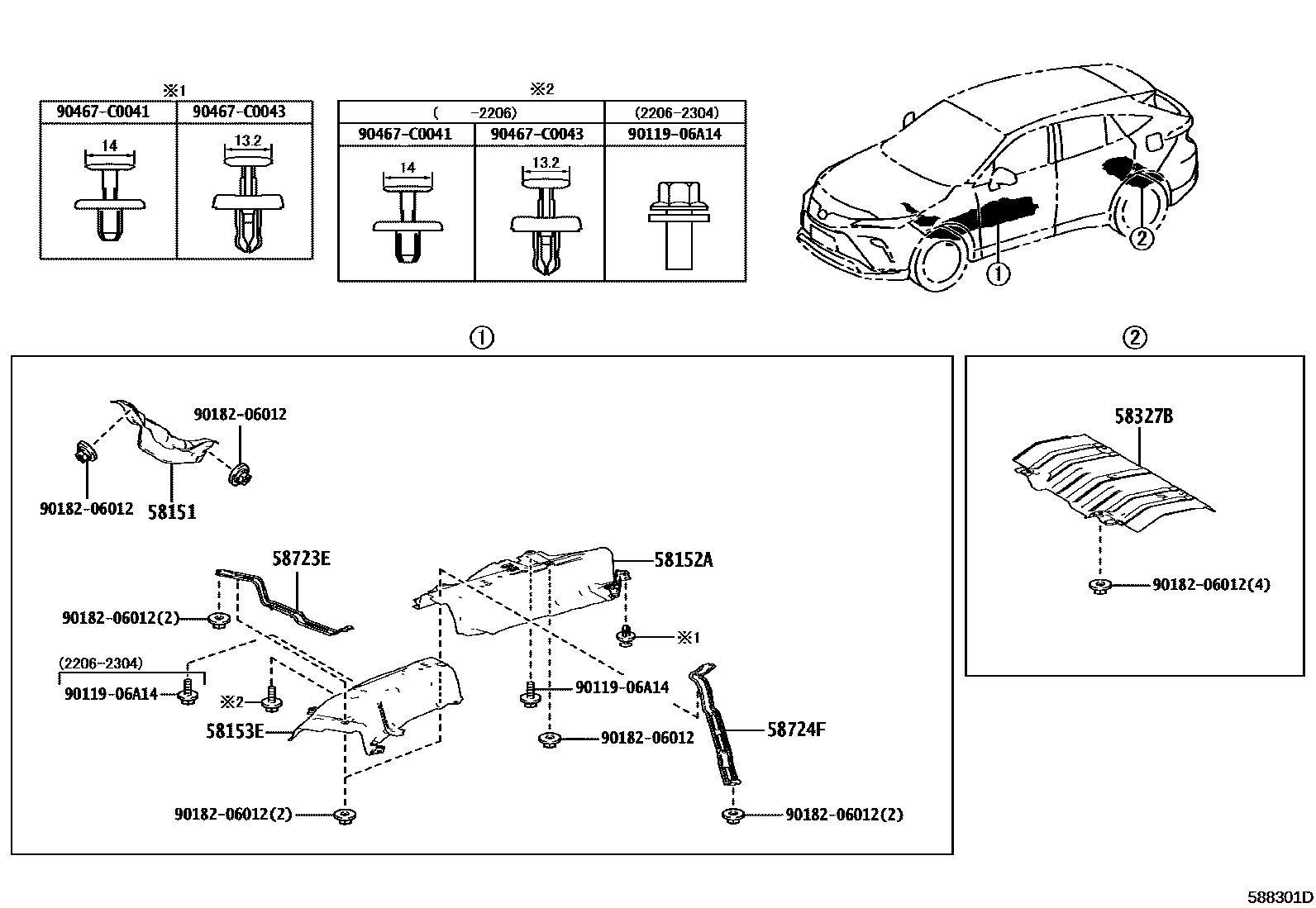

10 parts on this diagram · 2 diagrams in section
FLOOR INSULATOR for Toyota CROWN KLUGER 52A
This section contains 11 genuine Toyota parts for the FLOOR INSULATOR system of the Toyota CROWN KLUGER 52A. Key components include: INSULATOR, FRONT FLOOR HEAT, NO.1, INSULATOR, FRONT FLOOR HEAT, NO.1 LOWER, INSULATOR, FRONT FLOOR HEAT, NO.2, INSULATOR, MAIN MUFFLER HEAT, COVER ASSY, ENGINE SERVICE.
