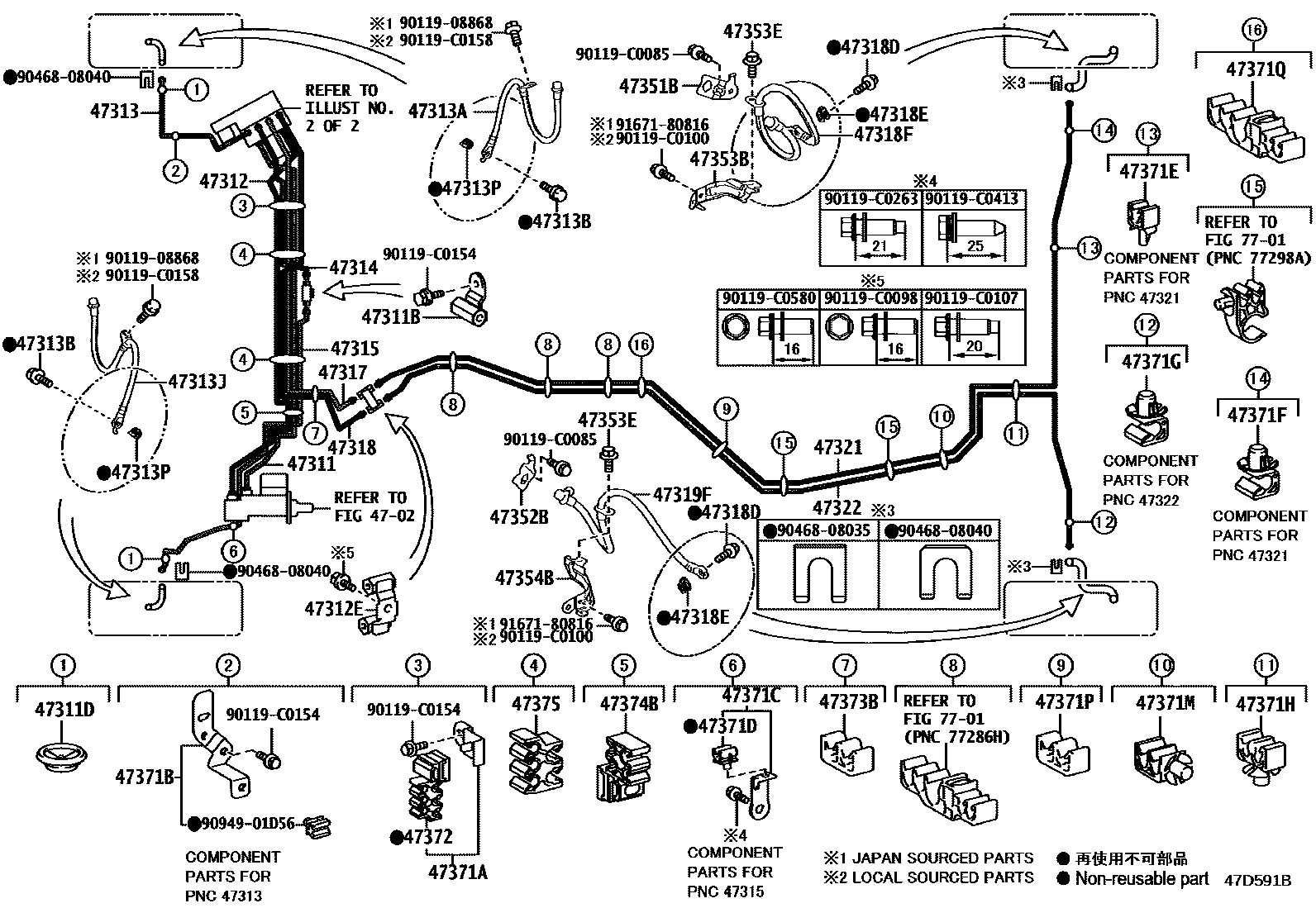

BRAKE TUBE & CLAMP

0001 1BRAKE TUBE 0002 1BRAKE TUBE 0003 1BRAKE ACTUATOR 0004 1BRAKE ACTUATOR

4702

47311TUBE, FRONT BRAKE, NO.1

main47311-0R120iMXUA8#202203

main47311-0R150iAXUH8#202203

47311BWAY, NO.1(FOR FRONT BRAKE TUBE)

main90412-10272iAXUH8#,MXUA8#202203

(J)

main90412-C0002iAXUH8#,MXUA8#202203

(L)

47311DGROMMET(FOR FRONT BRAKE TUBE)

main90480-25037×2iAXUH8#,MXUA8#202203

47312TUBE, FRONT BRAKE, NO.2

main47312-0R110iMXUA8#202203

main47312-0R140iAXUH8#202203

47312EWAY, NO.2(FOR FRONT BRAKE TUBE)

main90412-10285iAXUH8#,MXUA8#202203

(J)

main90412-C0004iAXUH8#,MXUA8#202203

(L)

47313TUBE, FRONT BRAKE, NO.3

main47313-0E070iAXUH8#202203

main47313-0R140iMXUA8#202203

47313AHOSE, FLEXIBLE, NO.1(FOR FRONT)

main90947-C2090iAXUH8#,MXUA8#202203

47313BBOLT, UNION(FOR FRONT FLEXIBLE HOSE)

main90401-10058×2iAXUH8#,MXUA8#202203

(J)

main90401-C0001×2iAXUH8#,MXUA8#202203

(L)

47313JHOSE, FLEXIBLE, NO.2(FOR FRONT)

main90947-C2091iAXUH8#,MXUA8#202203

47313PGASKET(FOR FRONT FLEXIBLE HOSE)

main47389-50021×2iAXUH8#,MXUA8#202203

47314TUBE, FRONT BRAKE, NO.4

main47314-0R160iMXUA8#202203

main47314-0R200iAXUH8#202203

47315TUBE, FRONT BRAKE, NO.5

main47315-0R050iMXUA8#202203

main47315-0R090iAXUH8#202203

47317TUBE, FRONT BRAKE, NO.7

main47317-0R140iMXUA8#202203

main47317-0R180iAXUH8#202203

47318TUBE, FRONT BRAKE, NO.8

main47318-0R140iMXUA8#202203

main47318-0R180iAXUH8#202203

47318DBOLT, UNION(FOR REAR FLEXIBLE HOSE)

main90401-10058×2iAXUH8#,MXUA8#202203

(J)

main90401-C0001×2iAXUH8#,MXUA8#202203

(L)

47318EGASKET(FOR REAR FLEXIBLE HOSE)

main47389-50021×2iAXUH8#,MXUA8#202203

47318FHOSE, FLEXIBLE(FOR REAR RH)

main90947-C2092iAXUH8#,MXUA8#202203

47319FHOSE, FLEXIBLE(FOR REAR LH)

main90947-C2093iAXUH8#,MXUA8#202203

47321TUBE, REAR BRAKE, NO.1

main47321-0R100iAXUH8#,MXUA8#202203

47322TUBE, REAR BRAKE, NO.2

main47322-0R100iAXUH8#,MXUA8#202203

47351BBRACKET, FLEXIBLE HOSE, NO.1

main47351-06070iAXUH8#,MXUA8#202203

47352BBRACKET, FLEXIBLE HOSE, NO.2

main47352-06070iAXUH8#,MXUA8#202203

47353BBRACKET, FLEXIBLE HOSE, NO.3

main47351-06060iAXUH8#,MXUA8#202203

47353EBOLT(FOR FLEXIBLE HOSE BRACKET)

main90119-08868×2iAXUH8#,MXUA8#202203

(J)

main90119-C0158×2iAXUH8#,MXUA8#202203

(L)

47354BBRACKET, FLEXIBLE HOSE, NO.4

main47352-06060iAXUH8#,MXUA8#202203

47371ACLAMP, BRAKE TUBE, NO.1

main47371-0R110iAXUH8#,MXUA8#202203

47371BCLAMP, BRAKE TUBE, NO.6

main47371-0R120iAXUH8#,MXUA8#202203

47371CCLAMP, BRAKE TUBE, NO.7

main47371-0R130iAXUH8#202203

main90949-01D56iMXUA8#202203

47371DCLAMP, BRAKE TUBE, NO.8

main47371-0R130iMXUA8#202203

main90949-01D56iAXUH8#202203

47371ECLAMP, BRAKE TUBE, NO.9

main90949-01E01iAXUH8#,MXUA8#202203

47371FCLAMP, BRAKE TUBE, NO.10

main90949-C1003iAXUH8#,MXUA8#202203

47371GCLAMP, BRAKE TUBE, NO.11

main90949-C1003iAXUH8#,MXUA8#202203

47371HCLAMP, BRAKE TUBE, NO.12

main90949-01D12iAXUH8#,MXUA8#202203

47371MCLAMP, BRAKE TUBE, NO.13

main90949-01D13iAXUH8#,MXUA8#202203

47371PCLAMP, BRAKE TUBE, NO.14

main90464-00903iAXUH8#,MXUA8#202203

47371QCLAMP, BRAKE TUBE, NO.15

main77285-0R150iAXUH8#202203

47372CLAMP, BRAKE TUBE, NO.2

main90949-01E31iAXUH8#,MXUA8#202203

47373BCLAMP, BRAKE TUBE, NO.3

main90464-00903iAXUH8#,MXUA8#202203

47374BCLAMP, BRAKE TUBE, NO.4

main90949-01E30iAXUH8#,MXUA8#202203

47375CLAMP, BRAKE TUBE, NO.5

main90949-01E40×2iAXUH8#,MXUA8#202203

7701

9011908868

main90119-08868

90119C0085

main90119-C0085

90119C0098

main90119-C0098

90119C0100

main90119-C0100

90119C0107

main90119-C0107

90119C0154

main90119-C0154

90119C0158

main90119-C0158

90119C0263

main90119-C0263

90119C0413

main90119-C0413

90119C0580

main90119-C0580

9046808035

main90468-08035

9046808040

main90468-08040

9094901D56

main90949-01D56

9167180816

main91671-80816

56 parts on this diagram · 4 diagrams in section
