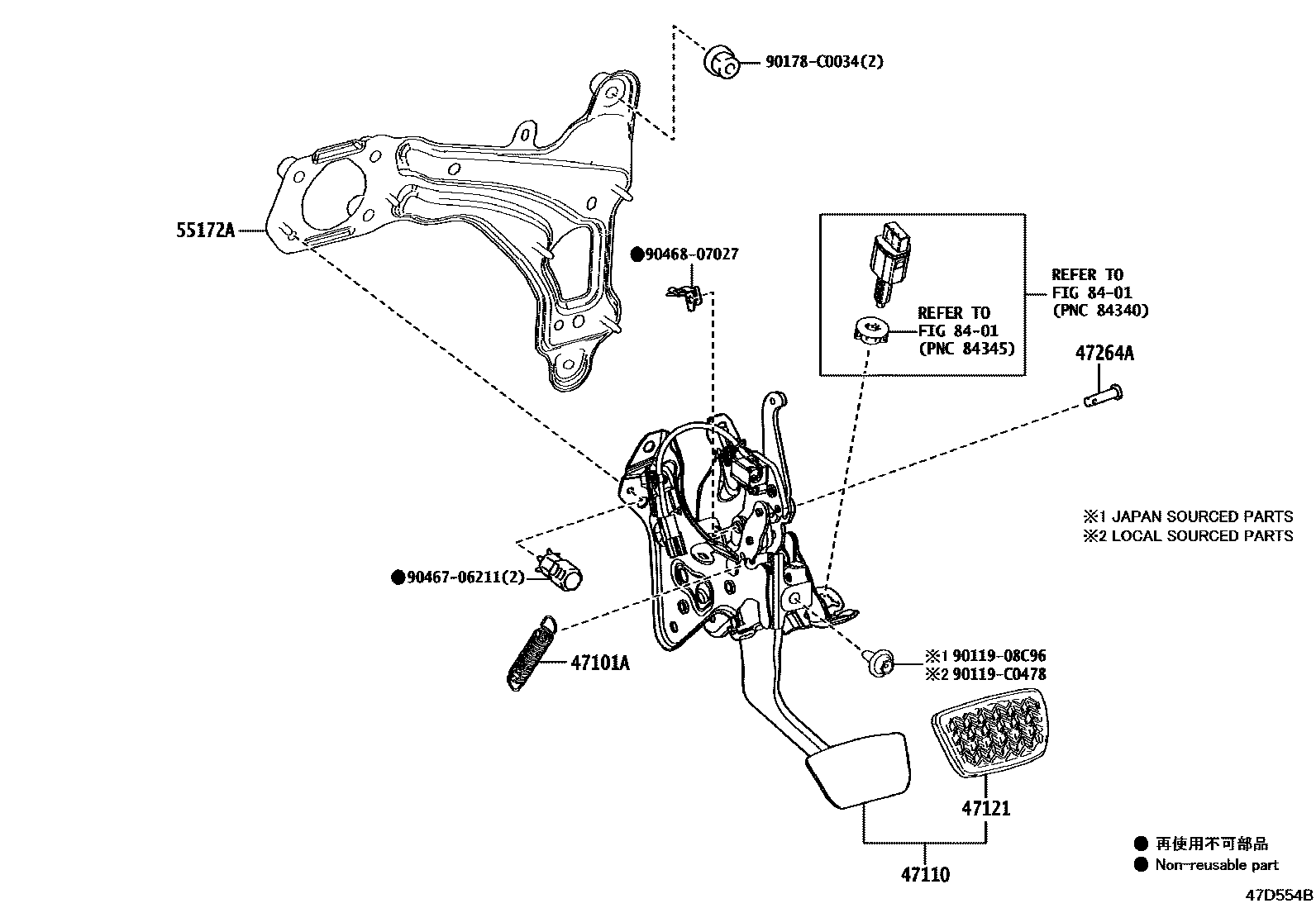

BRAKE PEDAL & BRACKET

0001 1 0002 1

47101ASPRING(FOR BRAKE PEDAL RETURN)

main90507-12046iAXUH8#,MXUA8#202203

47110SUPPORT ASSY, BRAKE PEDAL

main47110-0R150iMXUA8#202203

main47110-0R180iAXUH8#202203

47121PAD, BRAKE PEDAL

main47121-48010iAXUH8#,MXUA8#202203

47264APIN(FOR PUSH ROD)

main90240-06028iMXUA8#202203

main90240-08078iAXUH8#202203

(J)

main90240-C0001iAXUH8#202203

(L)

55172ABASE, BRAKE PEDAL SUPPORT

main55172-0R030iAXUH8#,MXUA8#202203

8401

9011908C96

main90119-08C96

90119C0478

main90119-C0478

90178C0034

main90178-C0034

9046706211

main90467-06211

9046807027

main90468-07027

11 parts on this diagram · 2 diagrams in section
