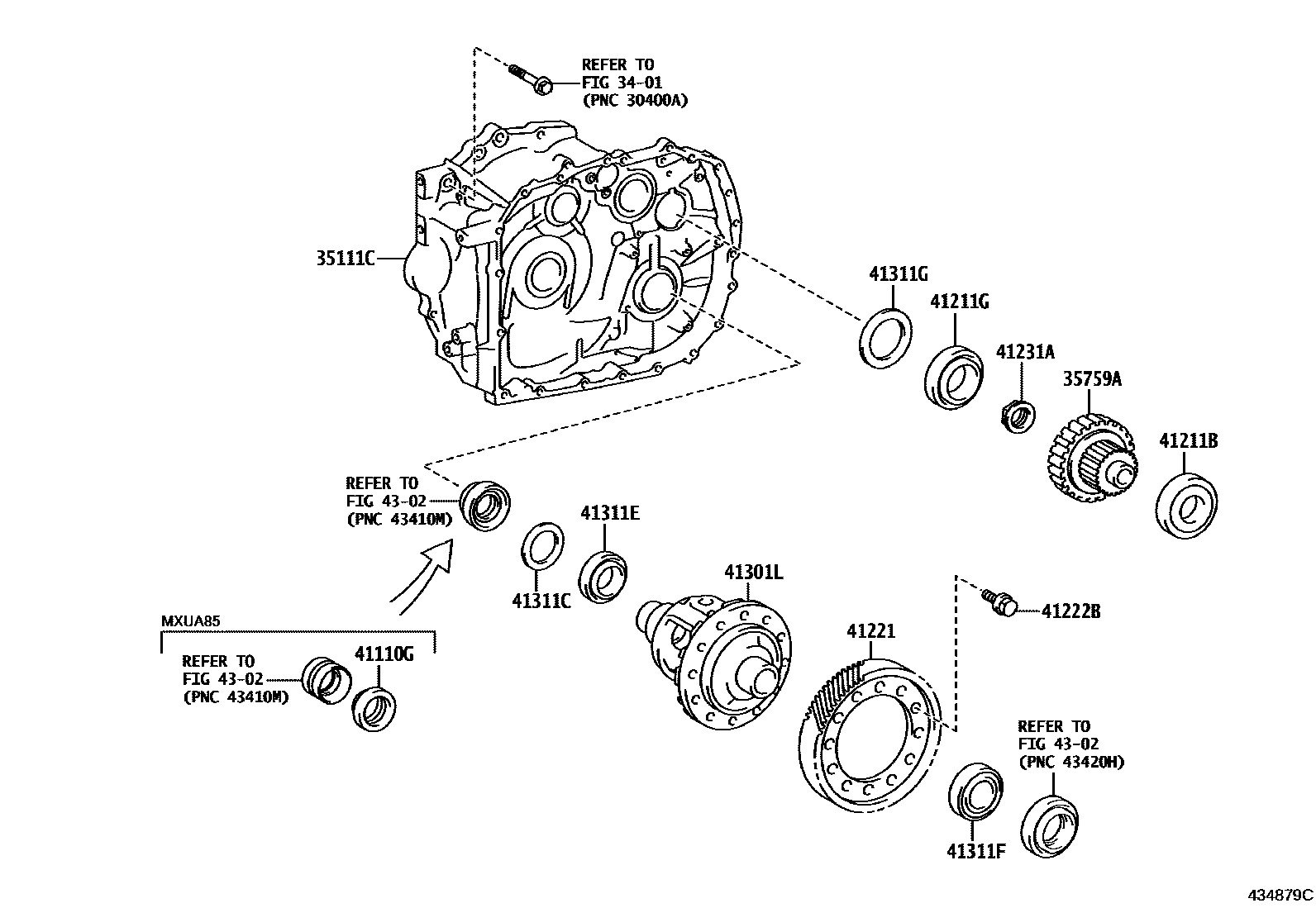

FRONT AXLE HOUSING & DIFFERENTIAL
3401
35111CHOUSING, TRANSAXLE
35759AGEAR, REDUCTION DRIVEN
41110GSEAL, OIL (FOR DIFFERENTIAL SIDE)
41211BBEARING, TAPERED ROLLER (FOR FRONT DRIVE PINION REAR)
41211GBEARING, THRUST NEEDLE ROLLER(FOR FRONT DRIVE PINION LH)
41221GEAR, FRONT DIFFERENTIAL RING
41222BBOLT (FOR FRONT DIFFERENTIAL RING GEAR SET)
41231ANUT, DRIVE PINION LOCK
41301LCASE SUB-ASSY, FRONT DIFFERENTIAL, NO.1
41311CSHIM (FOR FRONT DIFFERENTIAL CASE REAR)
T=1.76,MARK A
T=1.79,MARK B
T=1.82,MARK C
T=1.85,MARK D
T=1.88,MARK E
T=1.91,MARK F
T=1.94,MARK G
T=1.97,MARK H
T=2.00,MARK J
T=2.03,MARK K
T=2.06,MARK L
T=2.09,MARK M
T=2.12,MARK N
T=2.15,MARK P
T=2.18,MARK Q
T=2.21,MARK R
T=2.24,MARK S
T=2.27,MARK T
T=2.30,MARK U
T=2.33,MARK V
T=1.77,MARK A
T=1.80,MARK B
T=1.83,MARK C
T=1.86,MARK D
T=1.89,MARK E
T=1.92,MARK F
T=1.95,MARK G
T=1.98,MARK H
T=2.01,MARK J
T=2.04,MARK K
T=2.07,MARK L
T=2.10,MARK M
T=2.13,MARK N
T=2.16,MARK P
T=2.19,MARK Q
T=2.22,MARK R
T=2.25,MARK S
T=2.28,MARK T
T=2.31,MARK U
41311EBEARING, TAPERED ROLLER (FOR FRONT DIFFERENTIAL CASE FRONT)
41311FBEARING, TAPERED ROLLER (FOR FRONT DIFFERENTIAL CASE REAR)
41311GWASHER, PLATE (FOR FRONT DIFFERENTIAL CASE FRONT)
T=1.59, MARK A
T=1.62, MARK B
T=1.65, MARK C
T=1.68, MARK D
T=1.71, MARK E
T=1.74, MARK F
T=1.77, MARK G
T=1.80, MARK H
T=1.83, MARK J
T=1.86, MARK K
T=1.89, MARK L
T=1.92, MARK M
T=1.95, MARK N
T=1.98, MARK P
T=2.01, MARK Q
T=2.04, MARK R
T=2.07, MARK S
T=2.10, MARK T
T=2.13, MARK U
T=2.16, MARK V
T=2.19, MARK W
T=2.22, MARK X
T=2.25, MARK Y
4302
15 parts on this diagram · 1 diagram in section
