OIL COOLER & TUBE (HEV OR BEV OR FCEV)

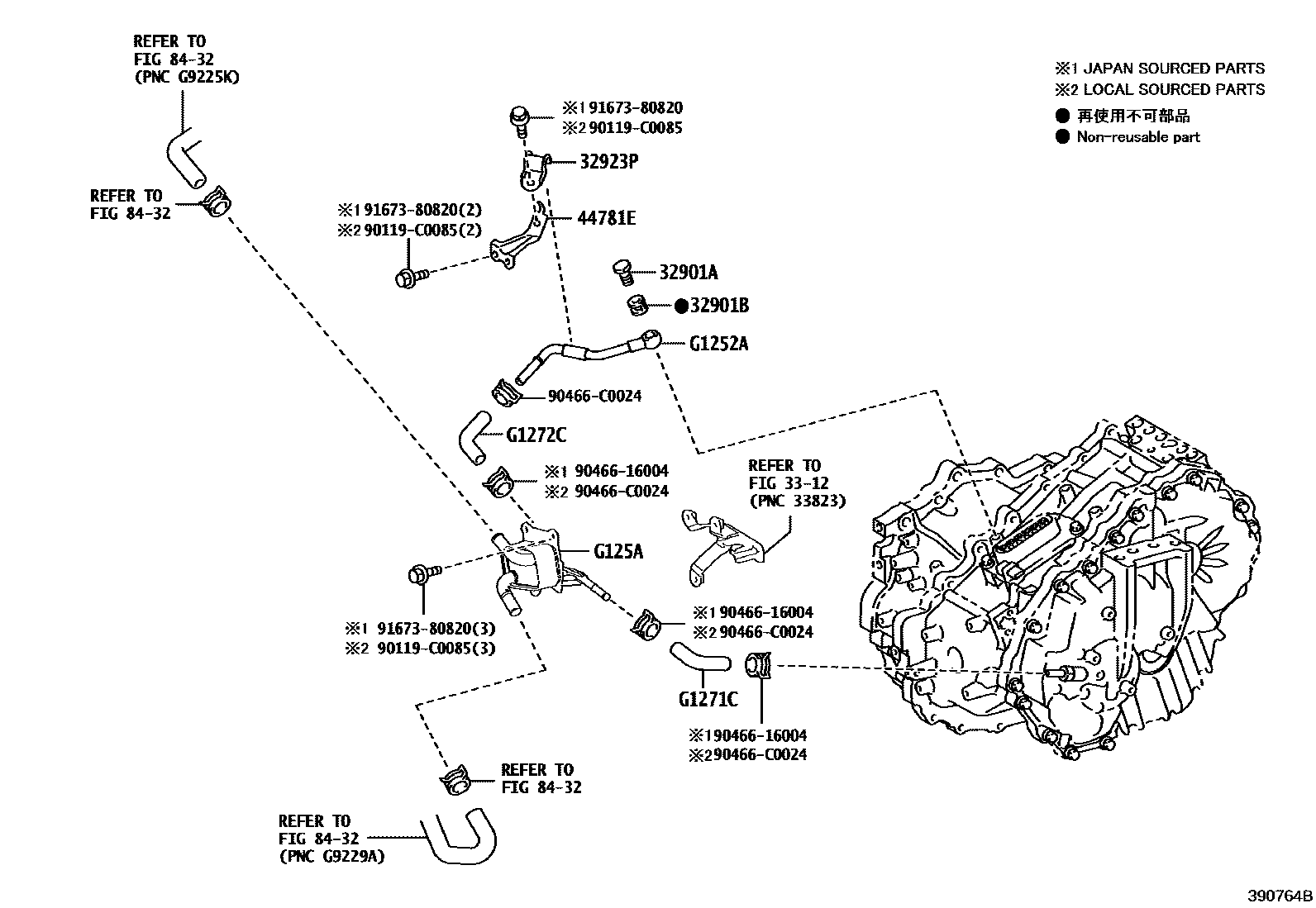

Parts diagram

32901ABOLT, UNION(FOR OIL COOLER)

main90401-12039i202203

32901BGASKET(FOR OIL COOLER UNION)

main90430-12037i202203

32923PCLAMP, OIL COOLER TUBE, NO.1

main32923-52040i202203

3312

44781EBRACKET, HOSE

main44781-06030i202203

8432

G1252APIPE, MOTOR COOLING, NO.2

mainG125206030i202203

G125ACOOLER, MOTOR COOLING

mainG125A0R010i202203

G1271CHOSE, MOTOR COOLING, NO.1

mainG127106040i202203

G1272CHOSE, MOTOR COOLING, NO.2

mainG127206030i202203

90119C0085

main90119-C0085

9046616004

main90466-16004

90466C0024

main90466-C0024

9167380820

main91673-80820

14 parts on this diagram · 1 diagram in section
