Toyota CROWN KLUGER 52A — EXHAUST PIPE

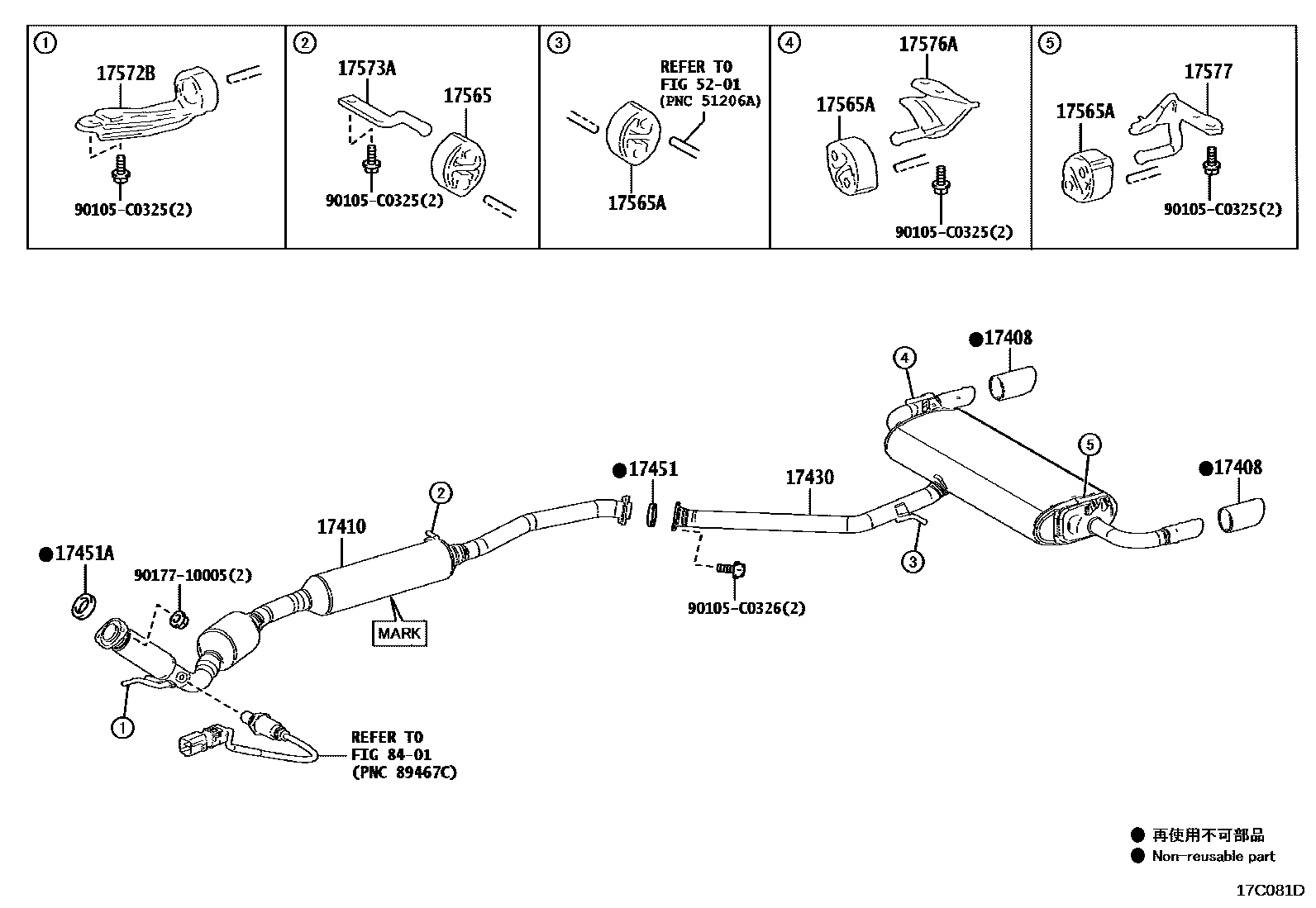

Parts diagram

17408BAFFLE SUB ASSY, EXHAUST TAILPIPE

17410PIPE ASSY, EXHAUST, FRONT

17430PIPE ASSY, EXHAUST, TAIL

17451GASKET, EXHAUST PIPE

17451AGASKET, EXHAUST PIPE, NO.2

17565SUPPORT, EXHAUST PIPE, NO.5

17565ASUPPORT, EXHAUST PIPE, NO.4

17572BBRACKET, EXHAUST PIPE SUPPORT, NO.2

17573ABRACKET, EXHAUST PIPE SUPPORT, NO.3

17576ABRACKET, EXHAUST PIPE SUPPORT, NO.6

17577BRACKET, EXHAUST PIPE SUPPORT, NO.7

5201FRONT BUMPER & BUMPER STAY

→ Go to FIG 52-01

8401SWITCH & RELAY & COMPUTER

→ Go to FIG 84-01

90105C0325

90105C0326

9017710005

16 parts on this diagram · 2 diagrams in section

EXHAUST PIPE for Toyota CROWN KLUGER 52A

This section contains 17 genuine Toyota parts for the EXHAUST PIPE system of the Toyota CROWN KLUGER 52A. Key components include: BAFFLE SUB ASSY, EXHAUST TAILPIPE, PIPE ASSY, EXHAUST, FRONT, PIPE ASSY, EXHAUST, TAIL, GASKET, EXHAUST PIPE, GASKET, EXHAUST PIPE, NO.2.
